Installation Procedure

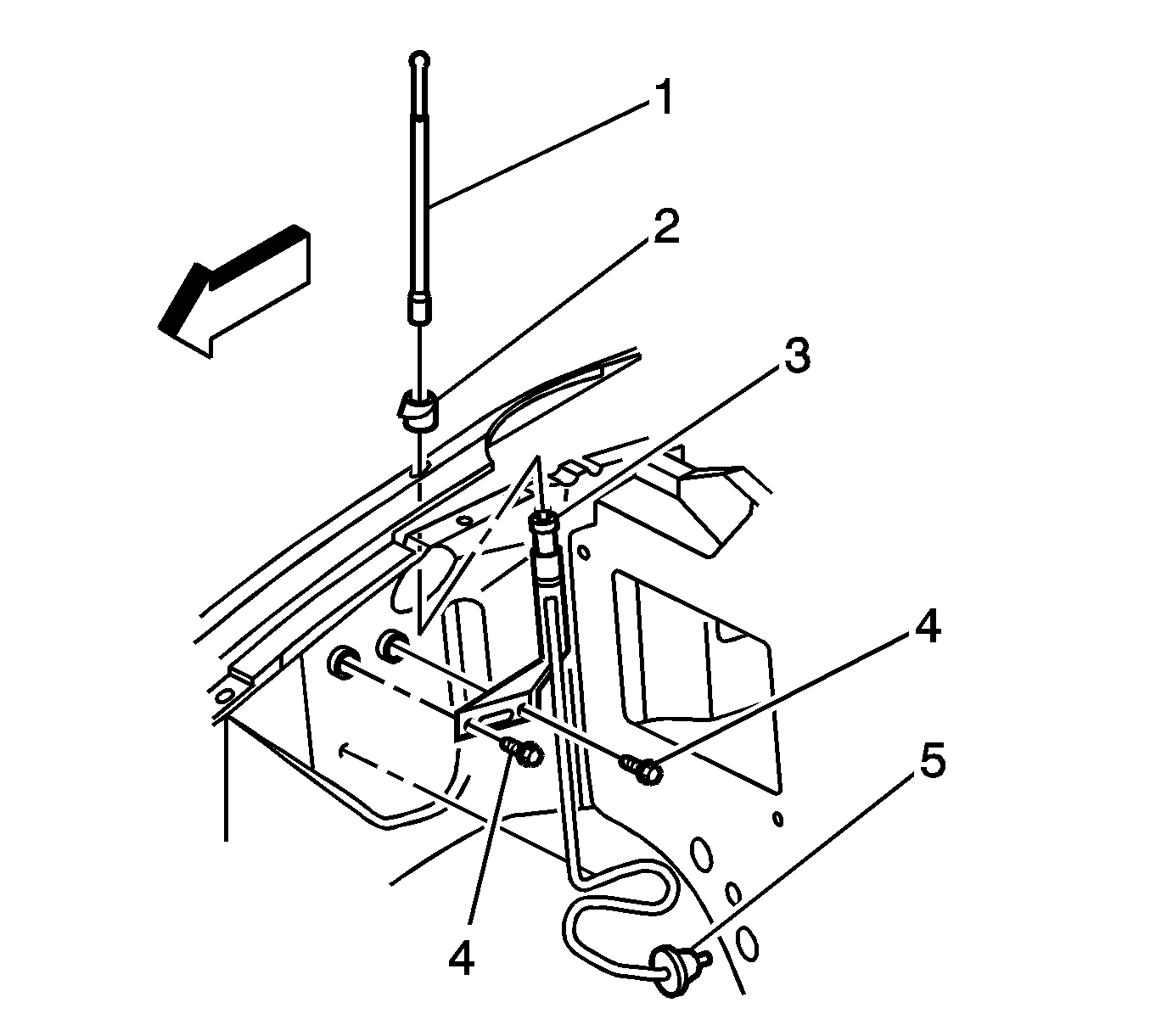

    Fig 1: Identifying Antenna Mast
    GM887173Courtesy of GENERAL MOTORS COMPANY
  1. Install the fixed antenna cable/base (3).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the antenna cable/base mounting bolts (4) and tighten to 11 N.m (97 lb in).
  3. Route the antenna base cable under the A/C case and through the hole in the firewall.
  4. Install the antenna cable grommet (5) through firewall and seat the grommet (5).
  5. Install the antenna collar (2).
  6. Connect the antenna base cable to the antenna extension cable.
  7. Install the passenger side hinge pillar trim. Refer to Body Hinge Pillar Trim Panel Replacement .
  8. Install the antenna mast (1). Refer to Fixed Antenna Mast Replacement .
