Passenger Compartment Components

Passenger Compartment Components

Items
1:  F112D Seat Belt Retractor Pretensioner - Driver F112D Seat Belt Retractor Pretensioner - Driver
2:  F105L Roof Rail Air Bag - Left F105L Roof Rail Air Bag - Left
3:  K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1K36 Inflatable Restraint Sensing and Diagnostic Module X2
4:  B119 Multi-axis Acceleration Sensor B119 Multi-Axis Acceleration Sensor
5:  F105R Roof Rail Air Bag - Right F105R Roof Rail Air Bag - Right
6:  F112P Seat Belt Retractor Pretensioner - Passenger F112P Seat Belt Retractor Pretensioner - Passenger
7:  T4G Cellular Phone, Navigation and Digital Radio Antenna

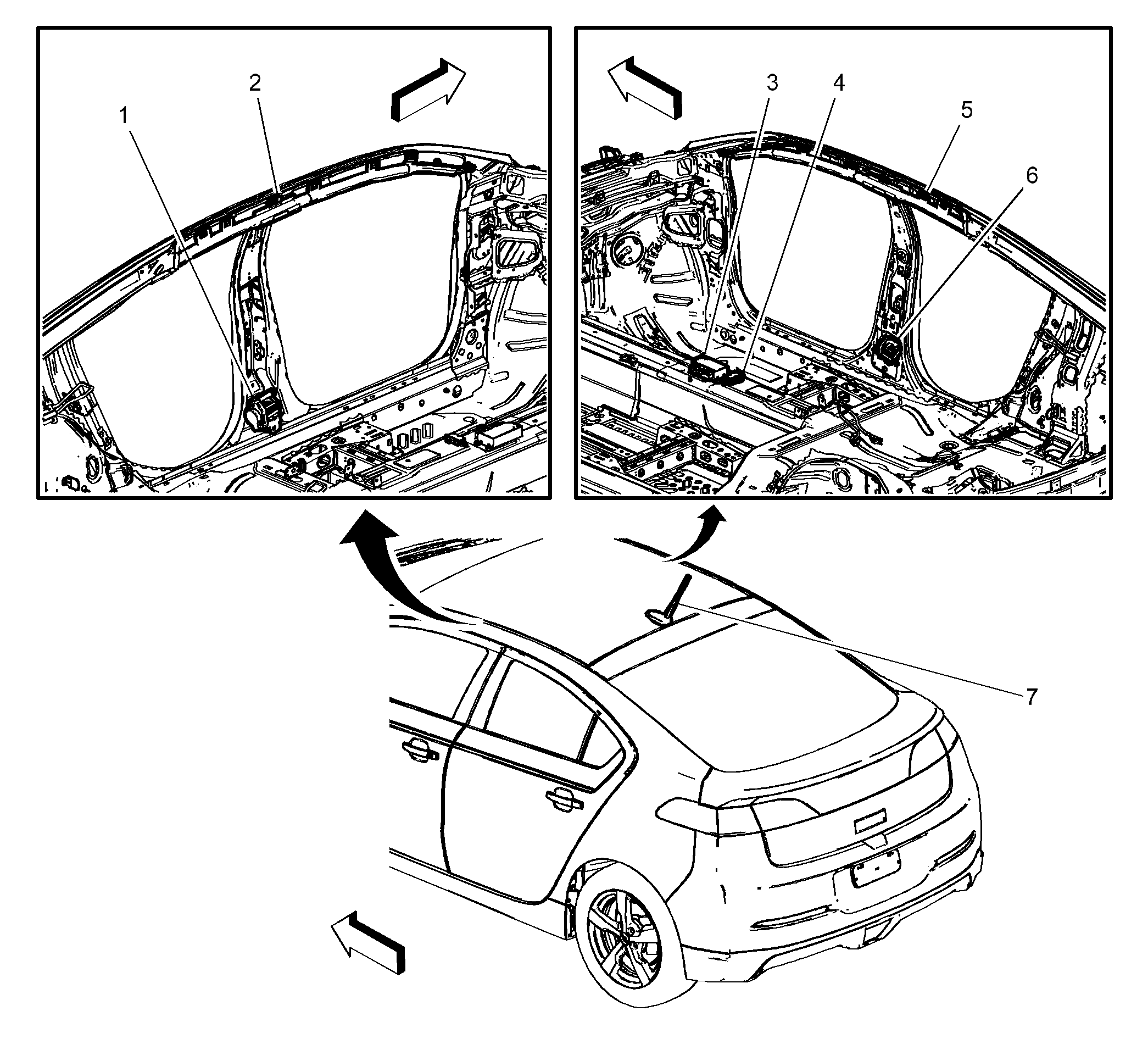

Fig 1: Passenger Compartment Components
GM2561462Courtesy of GENERAL MOTORS COMPANY
