Brake Fluid Level Indicator Switch Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

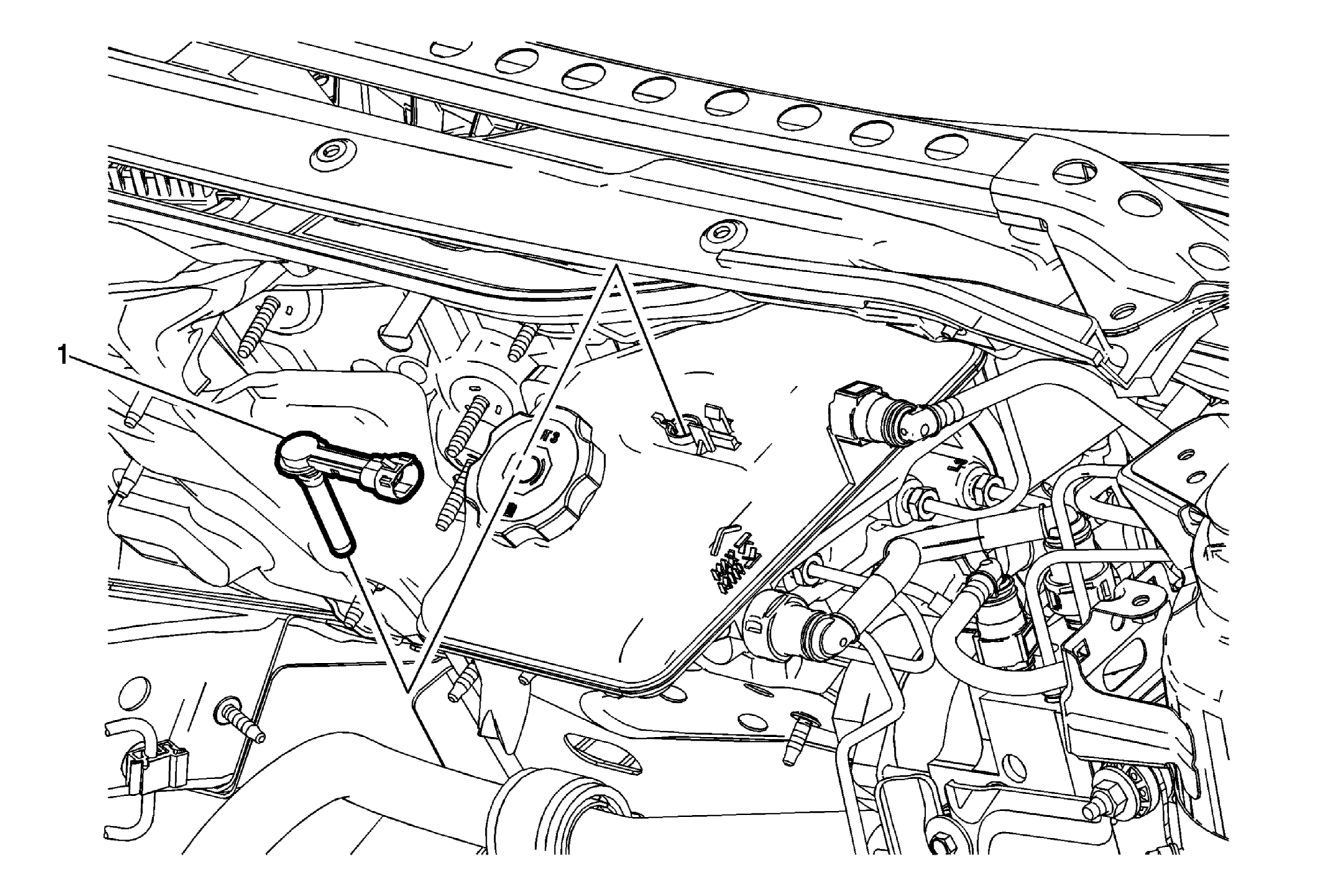

Fig 1: Brake Fluid Level Indicator Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Brake Fluid Irritant Warning . CAUTION: Refer to Brake Fluid Effects on Paint and Electrical Components Caution . Preliminary Procedure Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement . Loosen, but do not remove, the right side front suspension strut housing brace bolts. Remove the left side front suspension strut housing brace bolts and gently lift the brace upward.
1	Brake Fluid Level Indicator Switch Procedure Disconnect the electrical connector. Carefully spread the locking tabs and lift the brake fluid level indicator switch upward. After the installation is complete, install the front suspension strut housing brace bolts. Refer to Front Suspension Strut Housing Brace Replacement .

Callout

Component Name

WARNING:

Refer to Brake Fluid Irritant Warning .

CAUTION:

Refer to Brake Fluid Effects on Paint and Electrical Components Caution .

Preliminary Procedure

Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
Loosen, but do not remove, the right side front suspension strut housing brace bolts.
Remove the left side front suspension strut housing brace bolts and gently lift the brace upward.

Brake Fluid Level Indicator Switch

Procedure

Disconnect the electrical connector.
Carefully spread the locking tabs and lift the brake fluid level indicator switch upward.
After the installation is complete, install the front suspension strut housing brace bolts. Refer to Front Suspension Strut Housing Brace Replacement .
