Windshield Washer Solvent Container Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

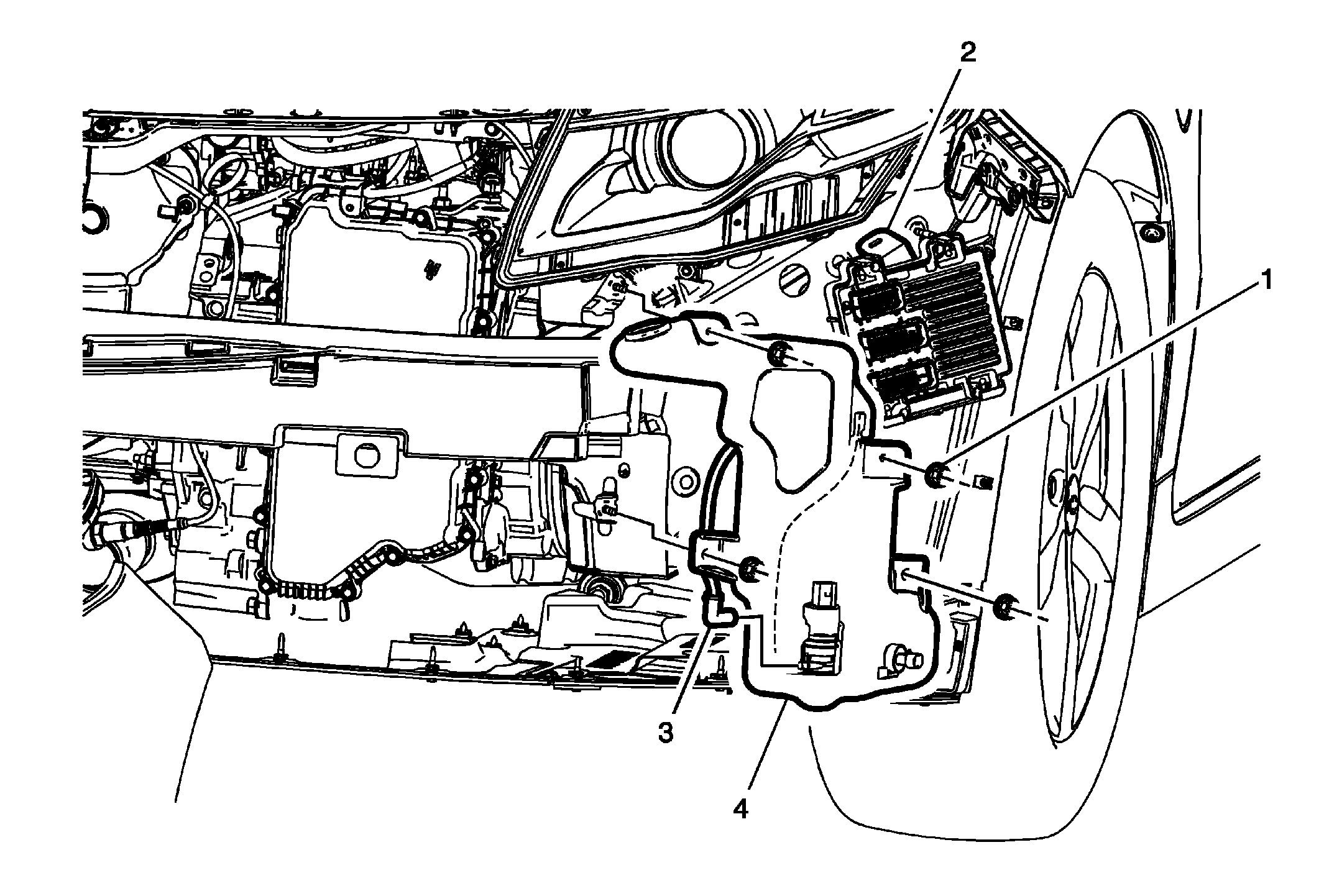

Fig 1: Windshield Washer Solvent Container

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Removal and Installation . Remove the windshield washer container filler tube. Refer to Windshield Washer Solvent Container Filler Tube Replacement . Disconnect the electrical connectors to the washer pump and level sensor.
1	Windshield Washer Solvent Container Nut (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Electronic Control Module Bracket TIP: Reposition the electronic control module (ECM) bracket in order to remove the windshield washer solvent container from the mounting studs. Refer to Engine Control Module Bracket Replacement .
3	Windshield Washer Pump Hose Procedure Disconnect the windshield washer pump hose from the washer pump spout and disengage the washer hose from the side of the windshield washer solvent container.
4	Windshield Washer Solvent Container Procedure Remove the container and drain into a suitable clean container. Transfer the windshield washer pump. Transfer the level sensor. Re-fill the washer container with clean washer solvent once the installation has been completed.
