Battery State of Charge Wiring Schematics

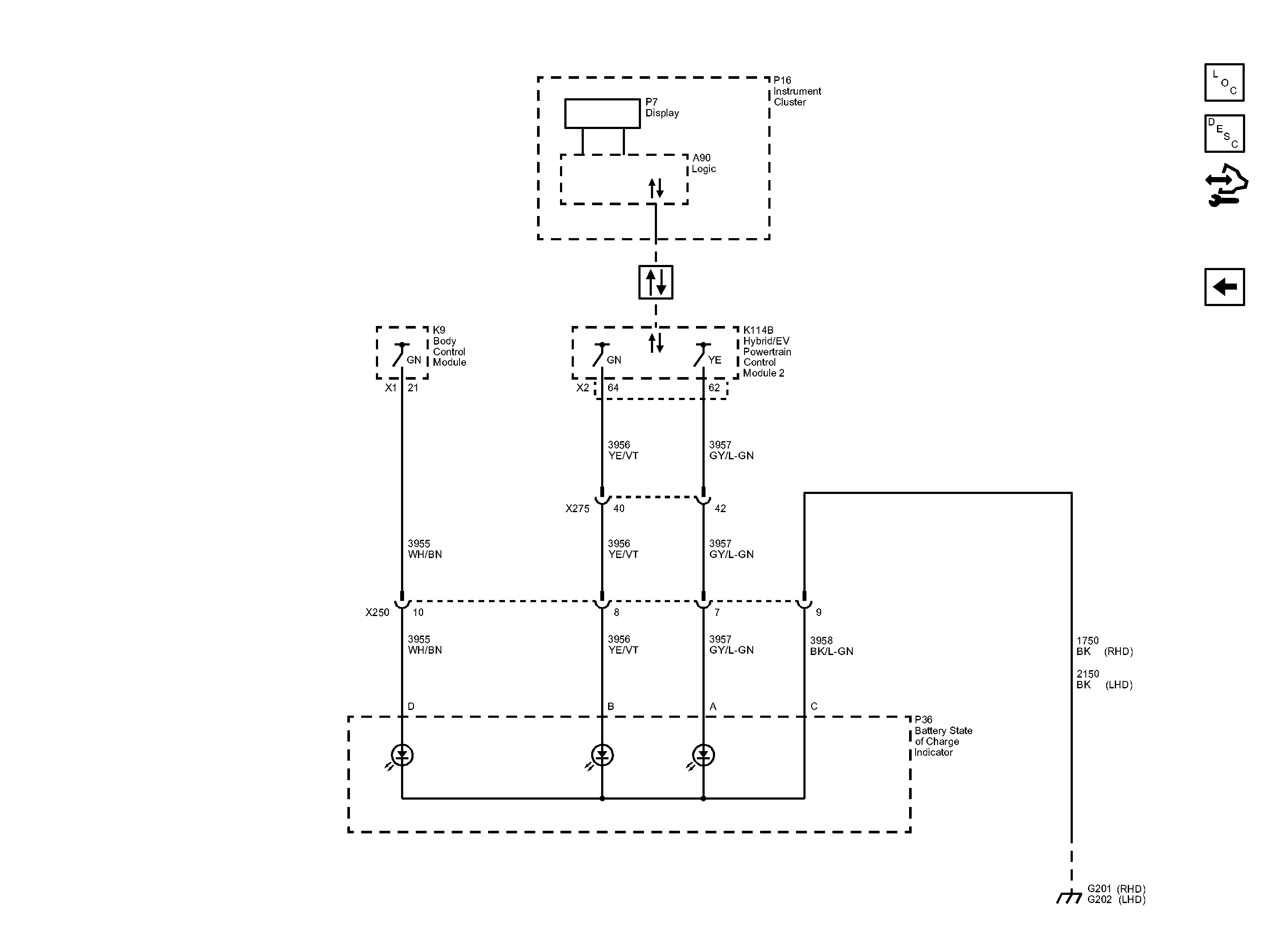

Fig 1: Battery State of Charge Wiring Schematics
GM2812528Courtesy of GENERAL MOTORS COMPANY
