Auxiliary Data Connector

Harness Routing Views

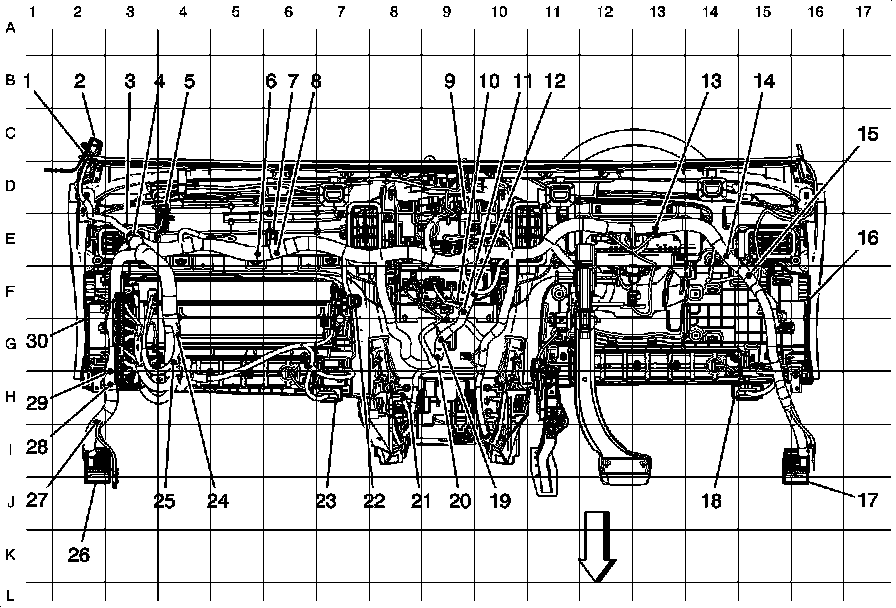

Instrument Panel Harness Routing





1 - X311

2 - X310

3 - J223

4 - J222

5 - X250

6 - J220

7 - X260

8 - J221

9 - J205

10 - J206

11 - J210

12 - J209

13 - J203

14 - J201

15 - J202

16 - X51L Fuse Block - Instrument Panel Left

17 - X225

18 - X84 Data Link Connector

19 - J208

20 - J207

21 - J204

22 - X252

23 - X84B Auxiliary Data Connector

24 - J227

25 - J228

26 - X275

27 - J224

28 - J225

29 - J226

30 - X51R Fuse Block - Instrument Panel Right
