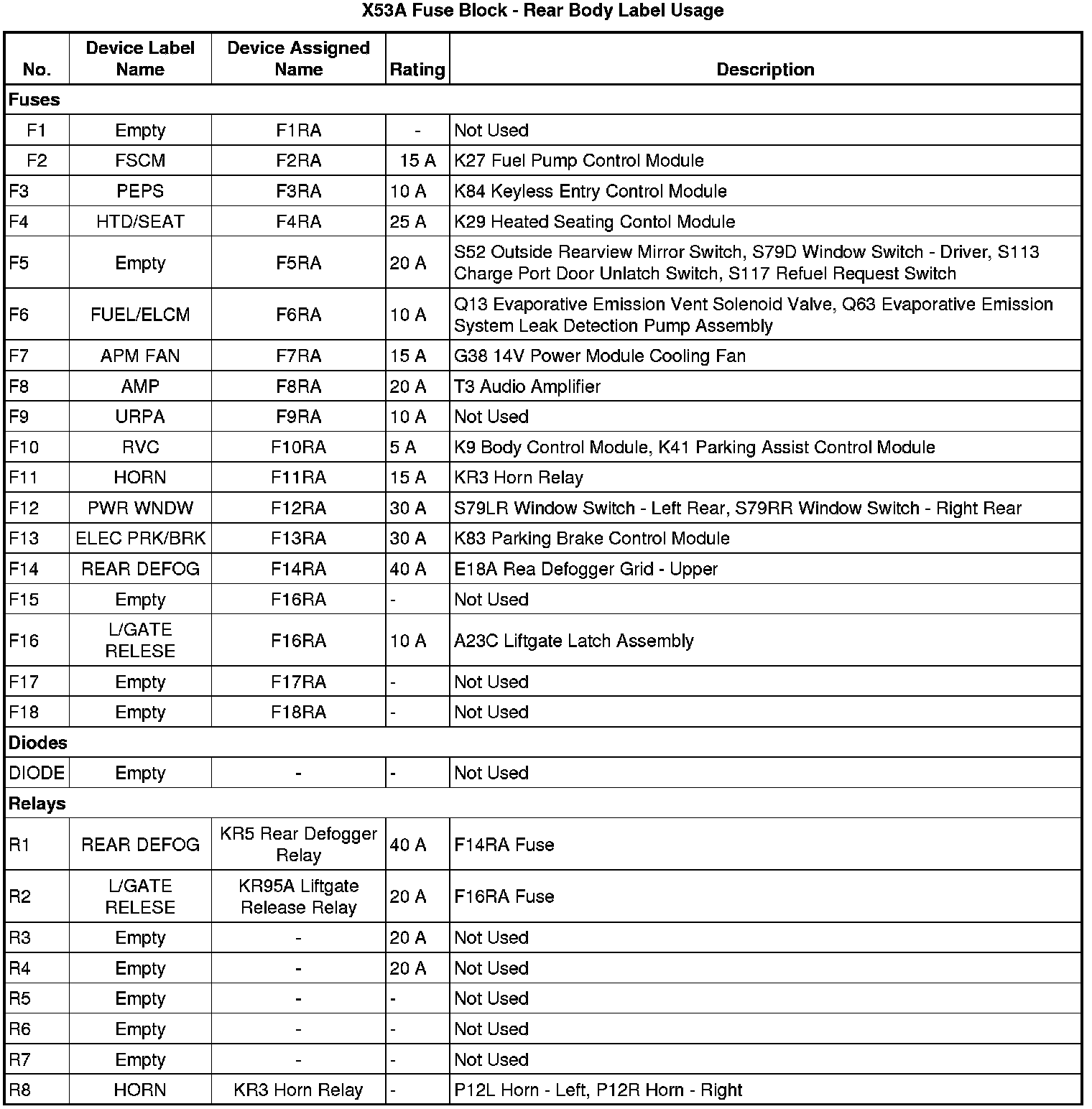

X53A Fuse Block - Rear Body Label




Electrical Center Identification Views

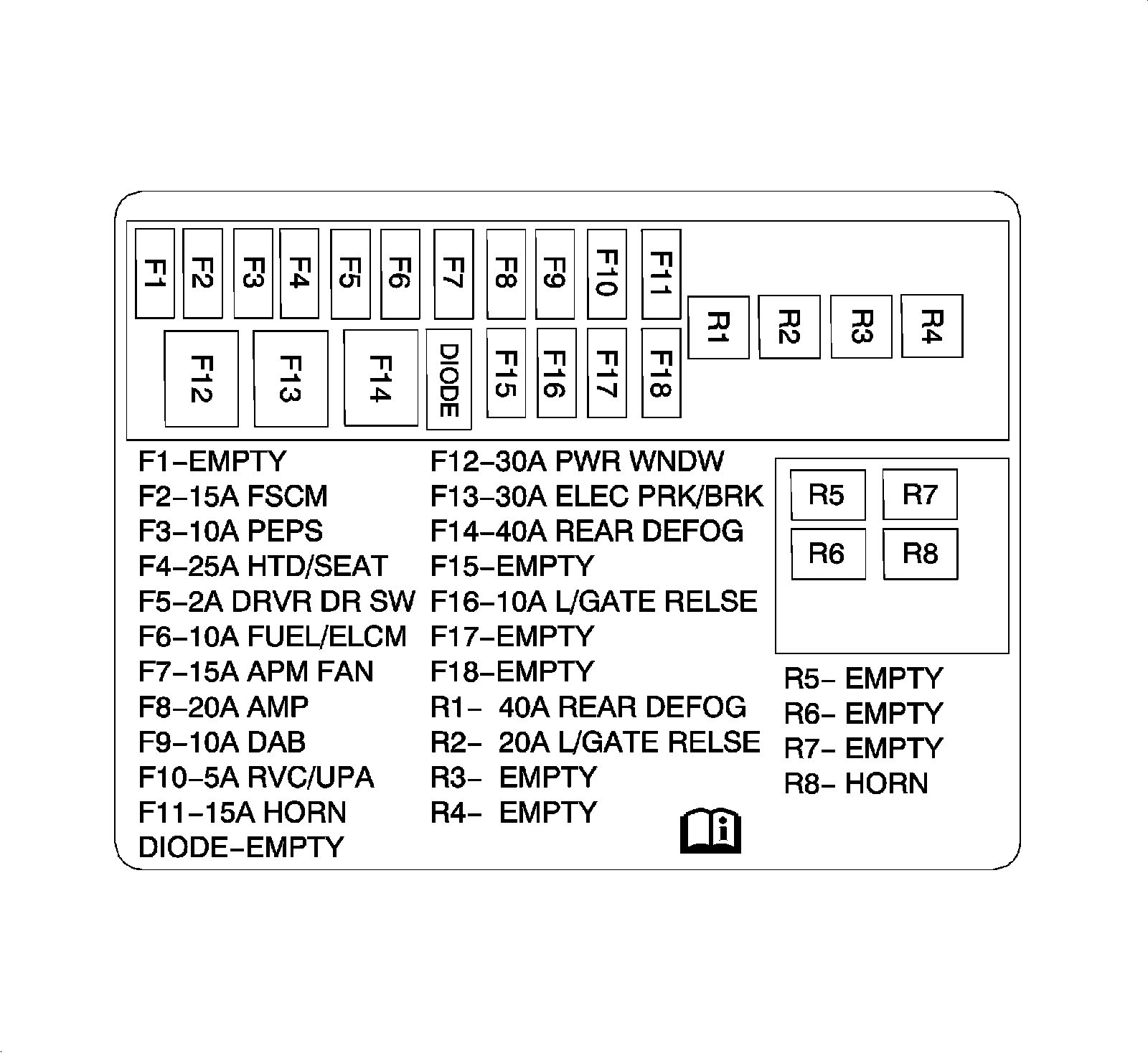

X53A Fuse Block - Rear Body Label
