Power and Ground Distribution
>>
Relay Box
>>
Locations
>>
Fuse Block Labels
>>
X51R Fuse Block - Instrument Panel Right Label
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

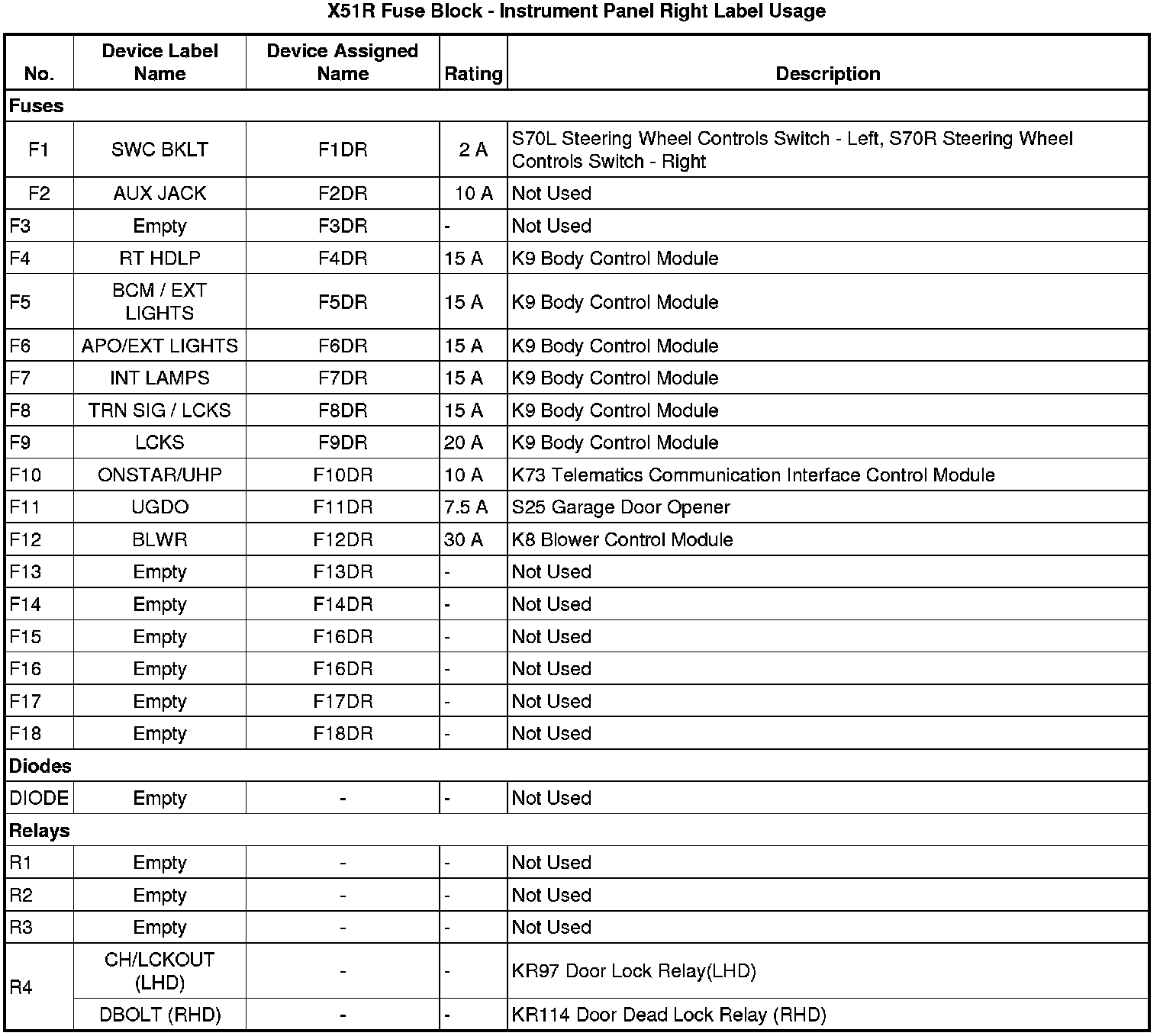

X51R Fuse Block - Instrument Panel Right Label
Electrical Center Identification Views

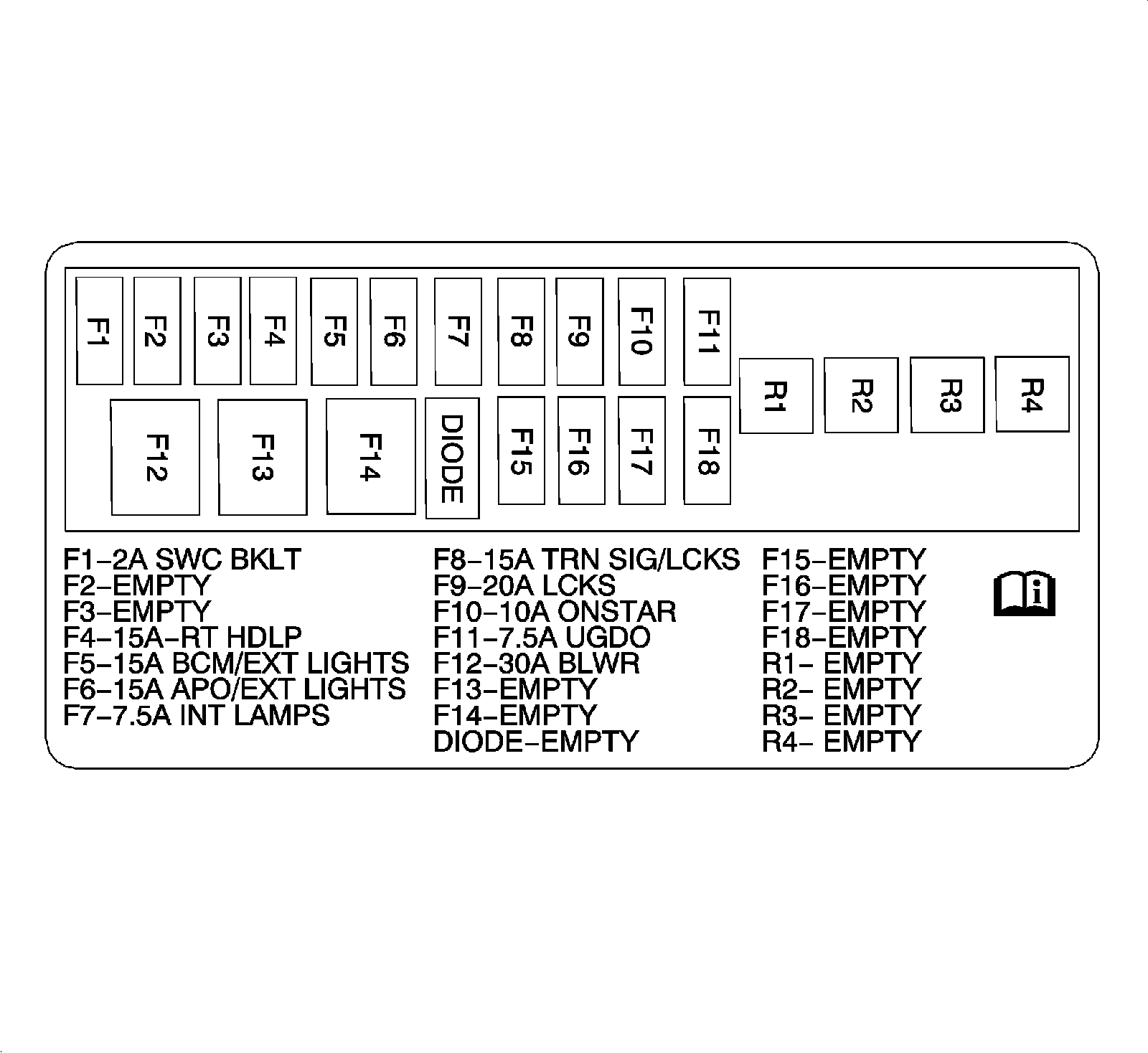

X51R Fuse Block - Instrument Panel Right Label
