Hybrid Powertrain Control Module 2 X2

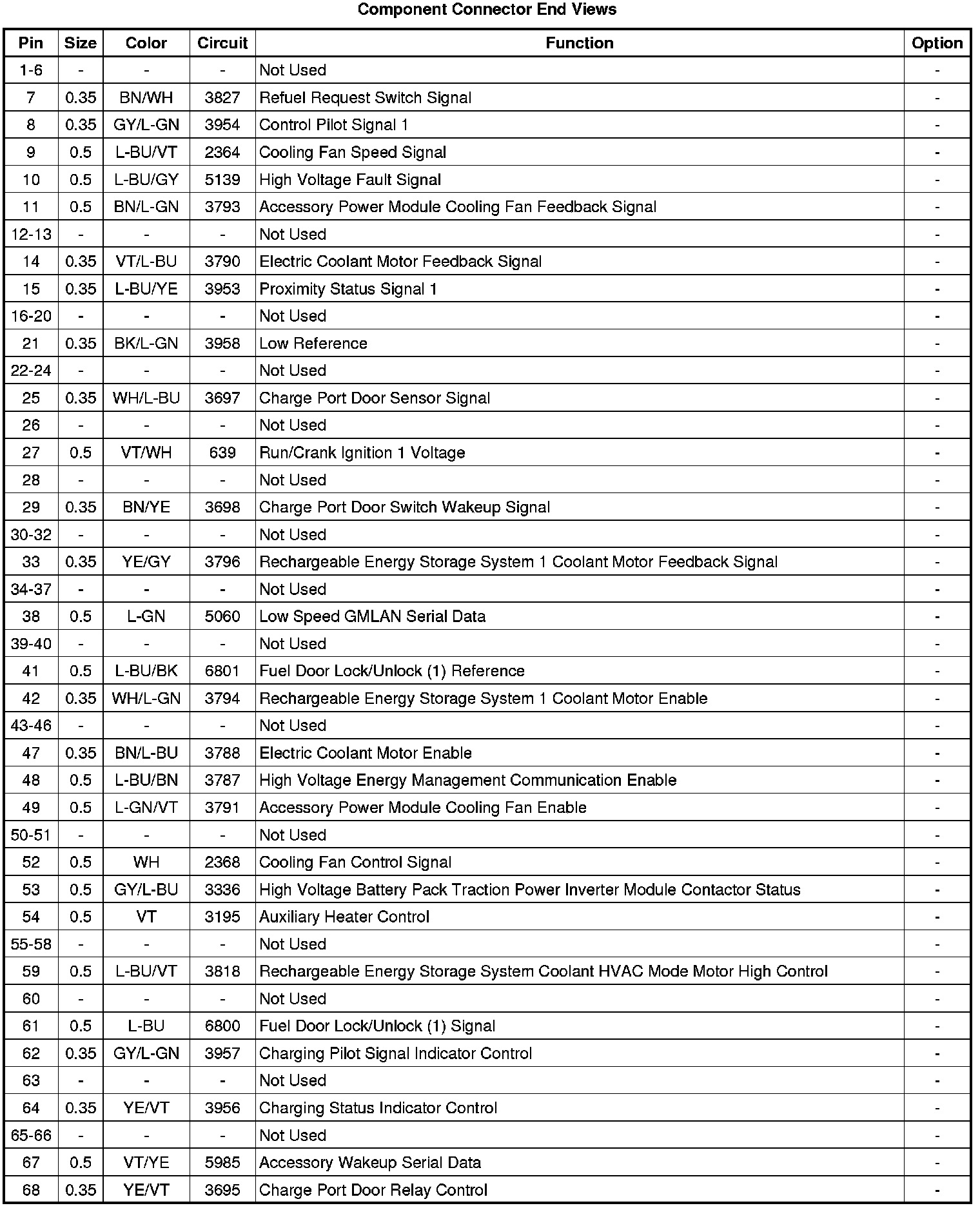

Component Connector End Views

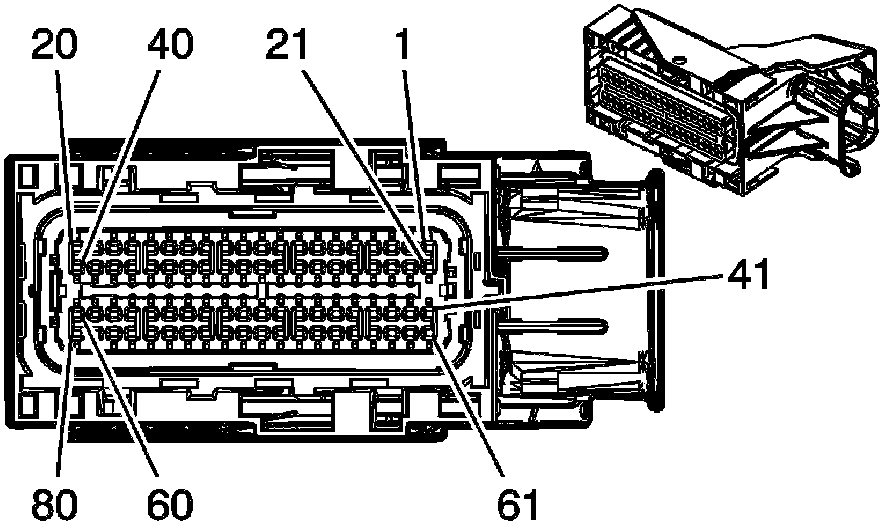

K114B Hybrid Powertrain Control Module 2 X2
