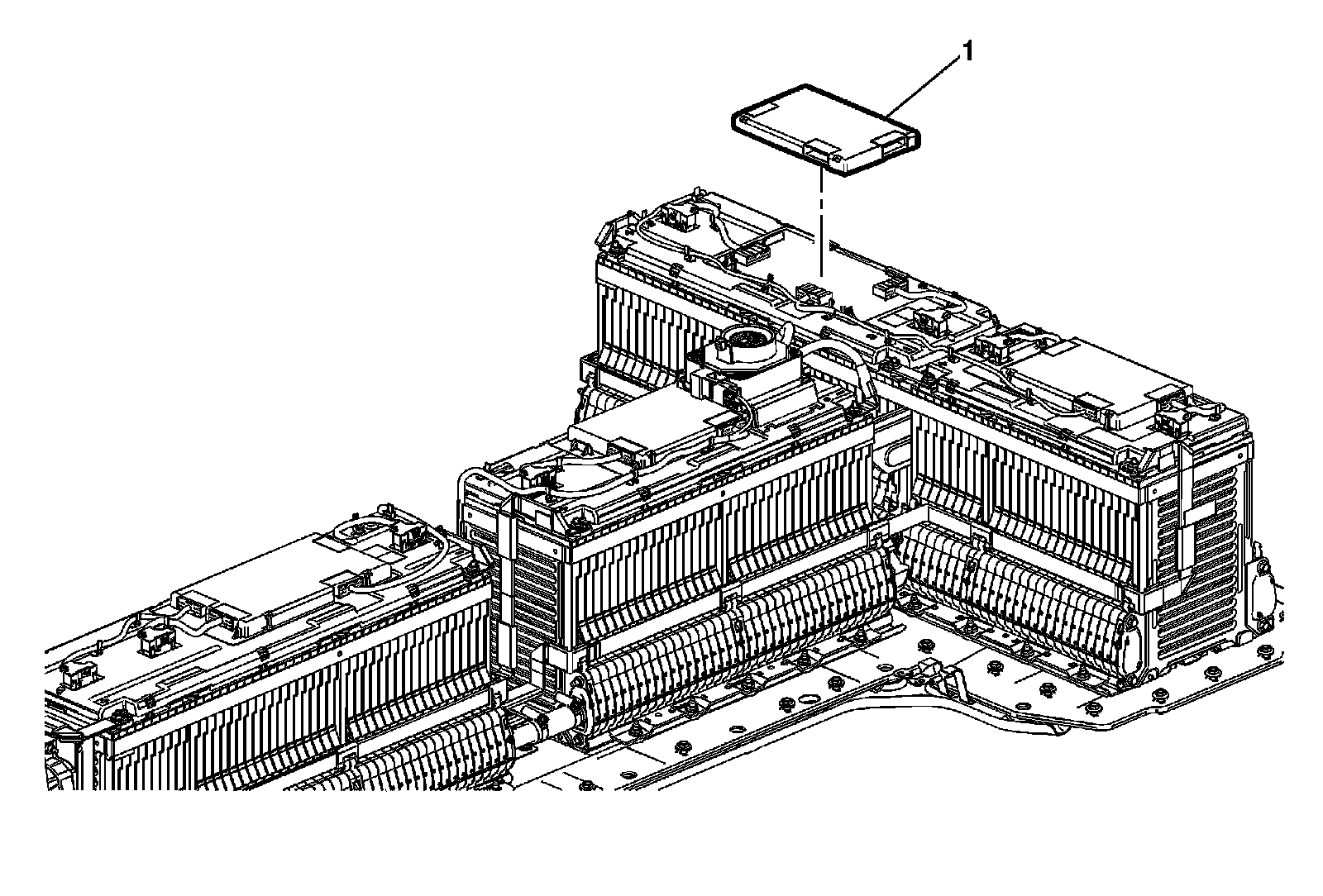

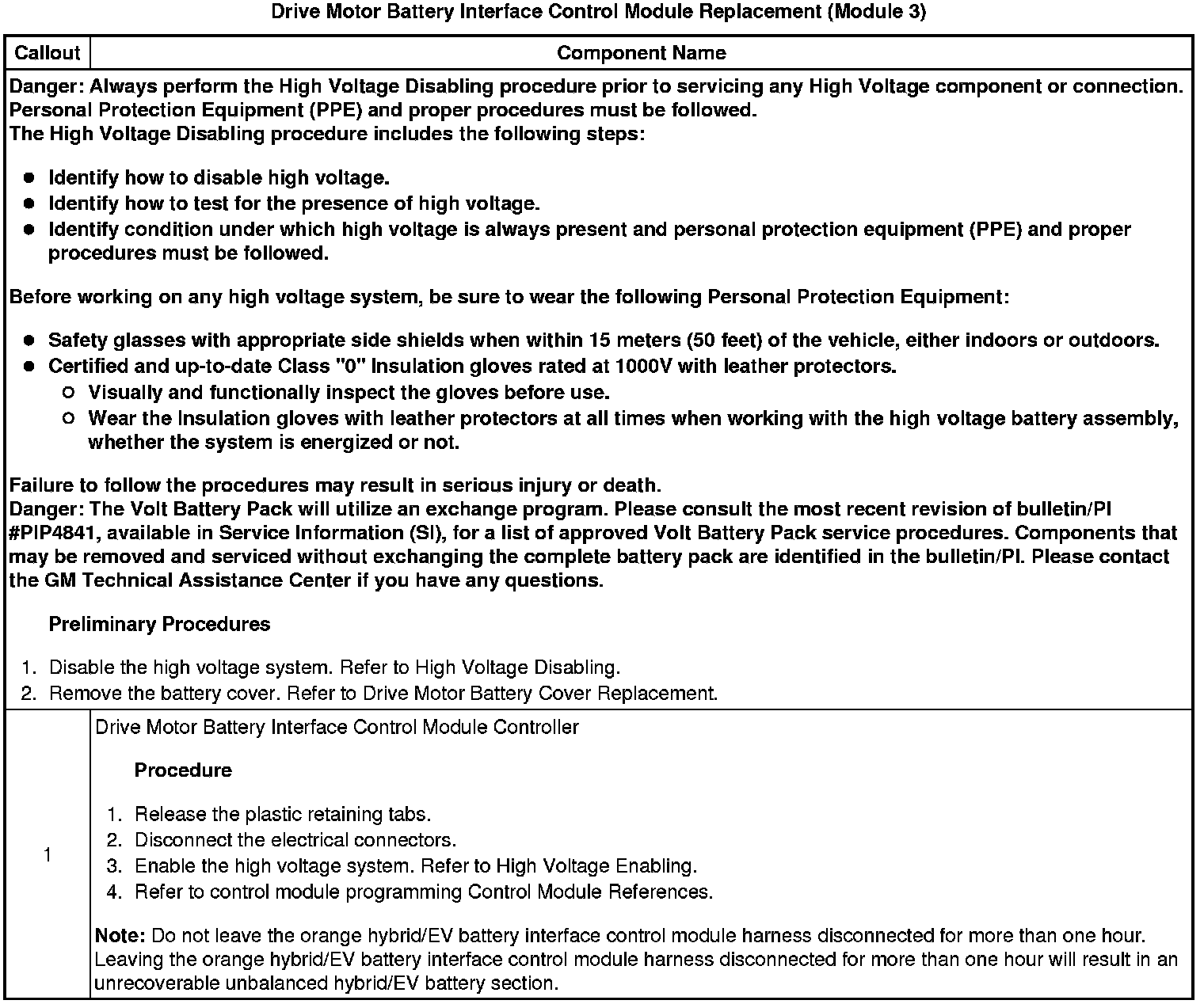

Drive Motor Battery Interface Control Module Replacement (Module 3)




Drive Motor Battery Interface Control Module Replacement (Module 3)
