Front Doors (AXG With A33)

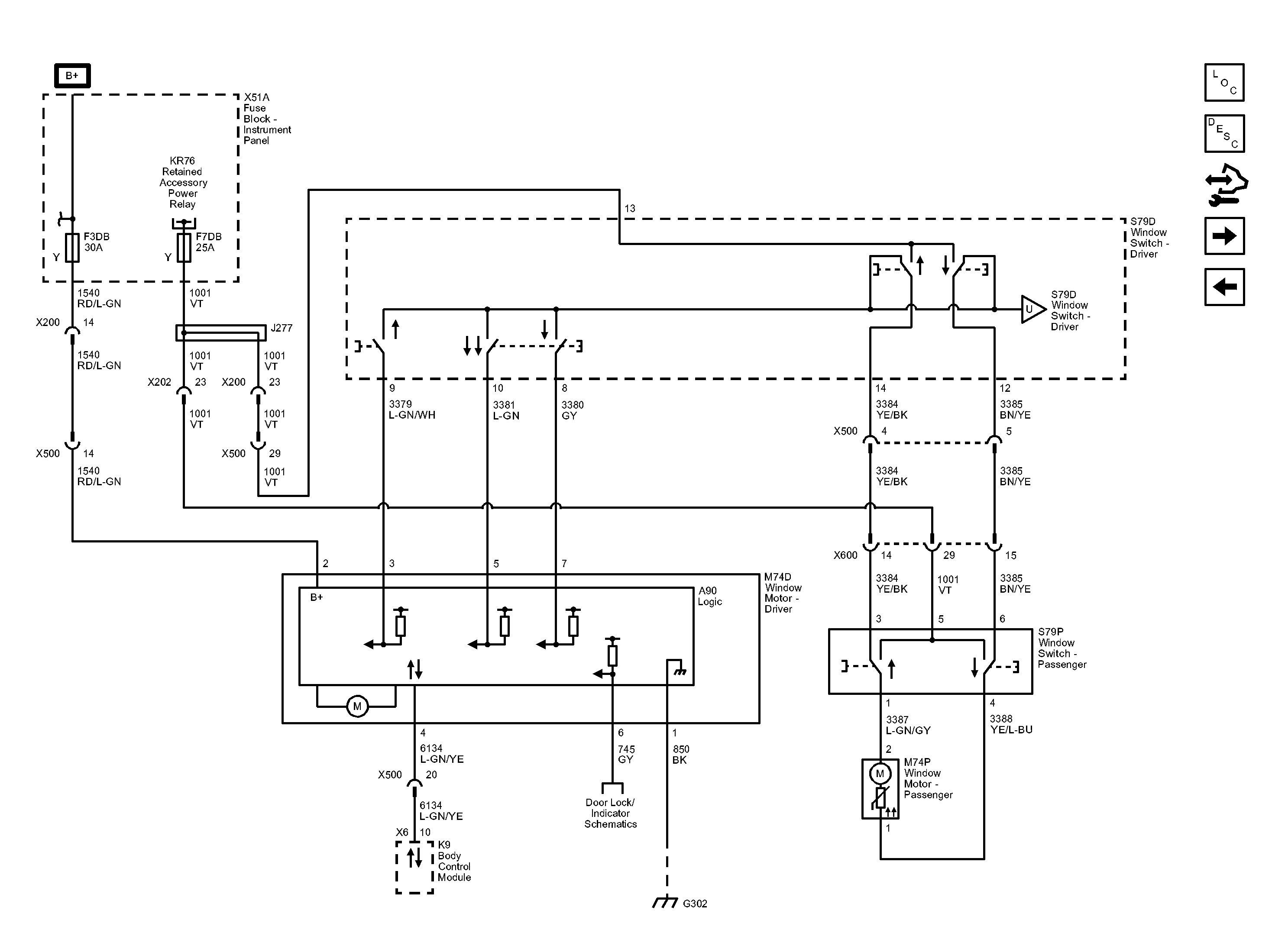

Fig 1: Front Doors (AXG With A33) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
