Steering Wheel Secondary/Configurable Control Schematics: UK3

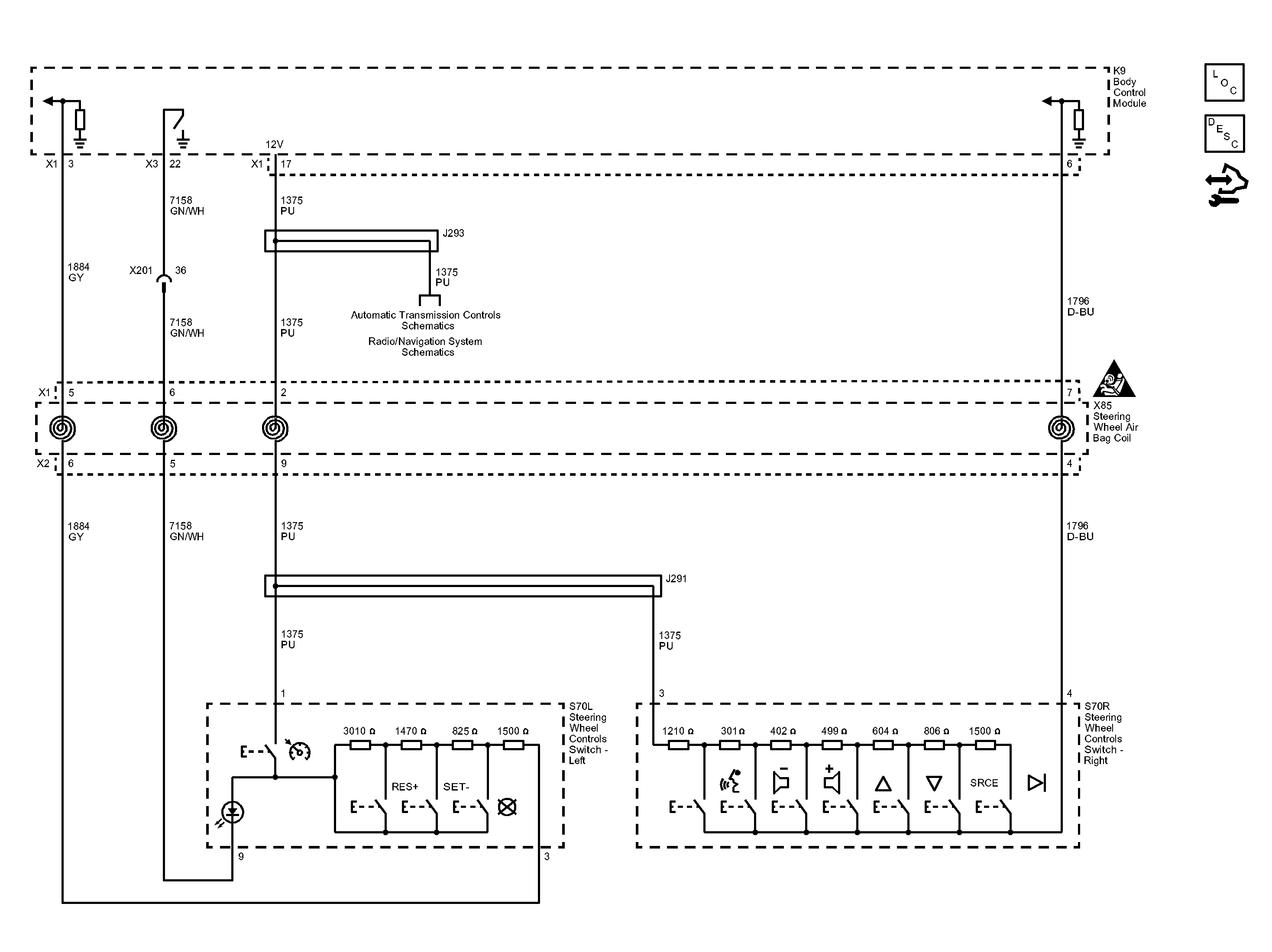

Fig 1: Steering Wheel Secondary/Configurable Control (UK3) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
