Garage Door Opener (UG1)

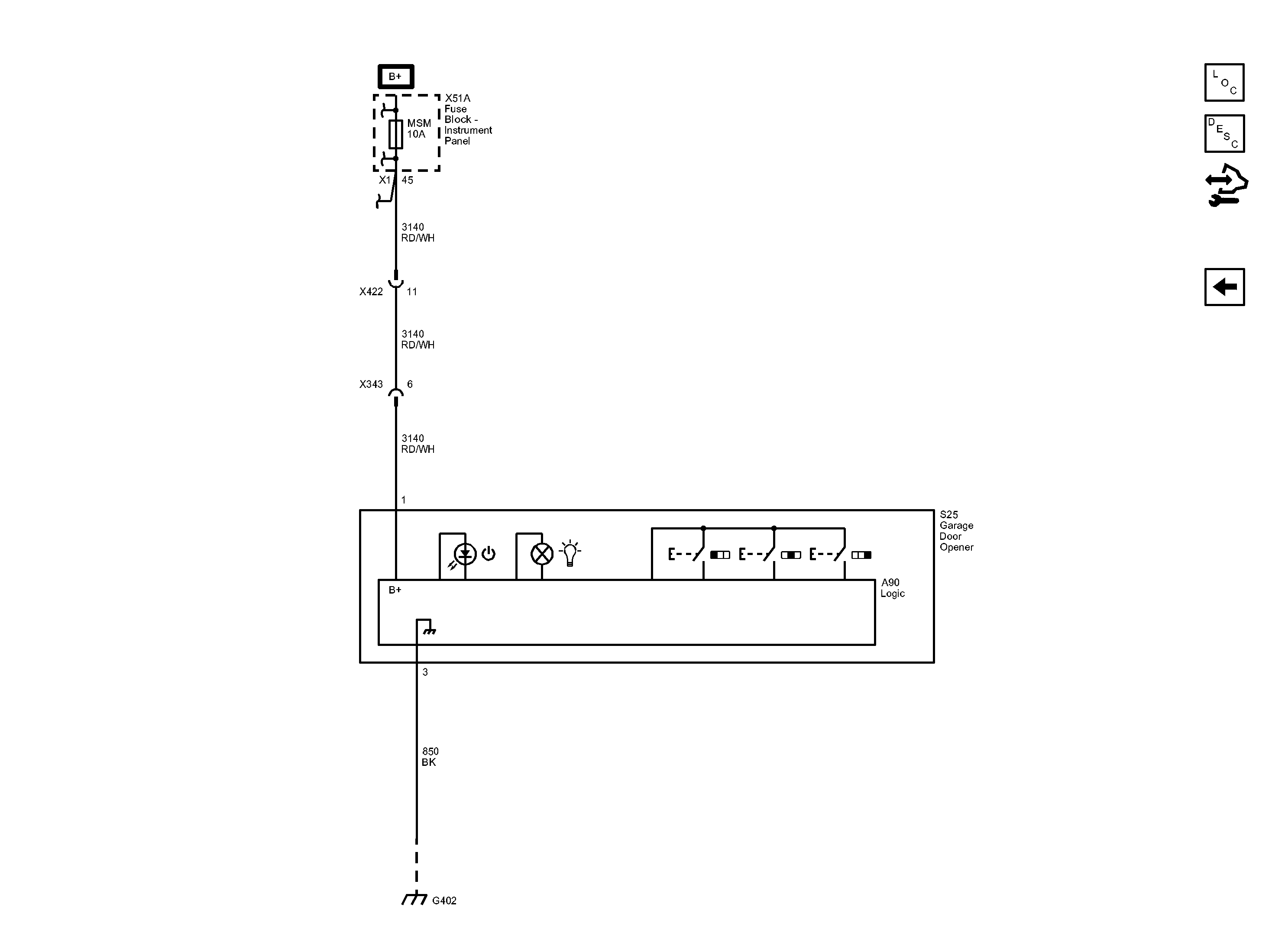

Fig 1: Garage Door Opener (UG1) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
