Power Steering Schematics: NV7

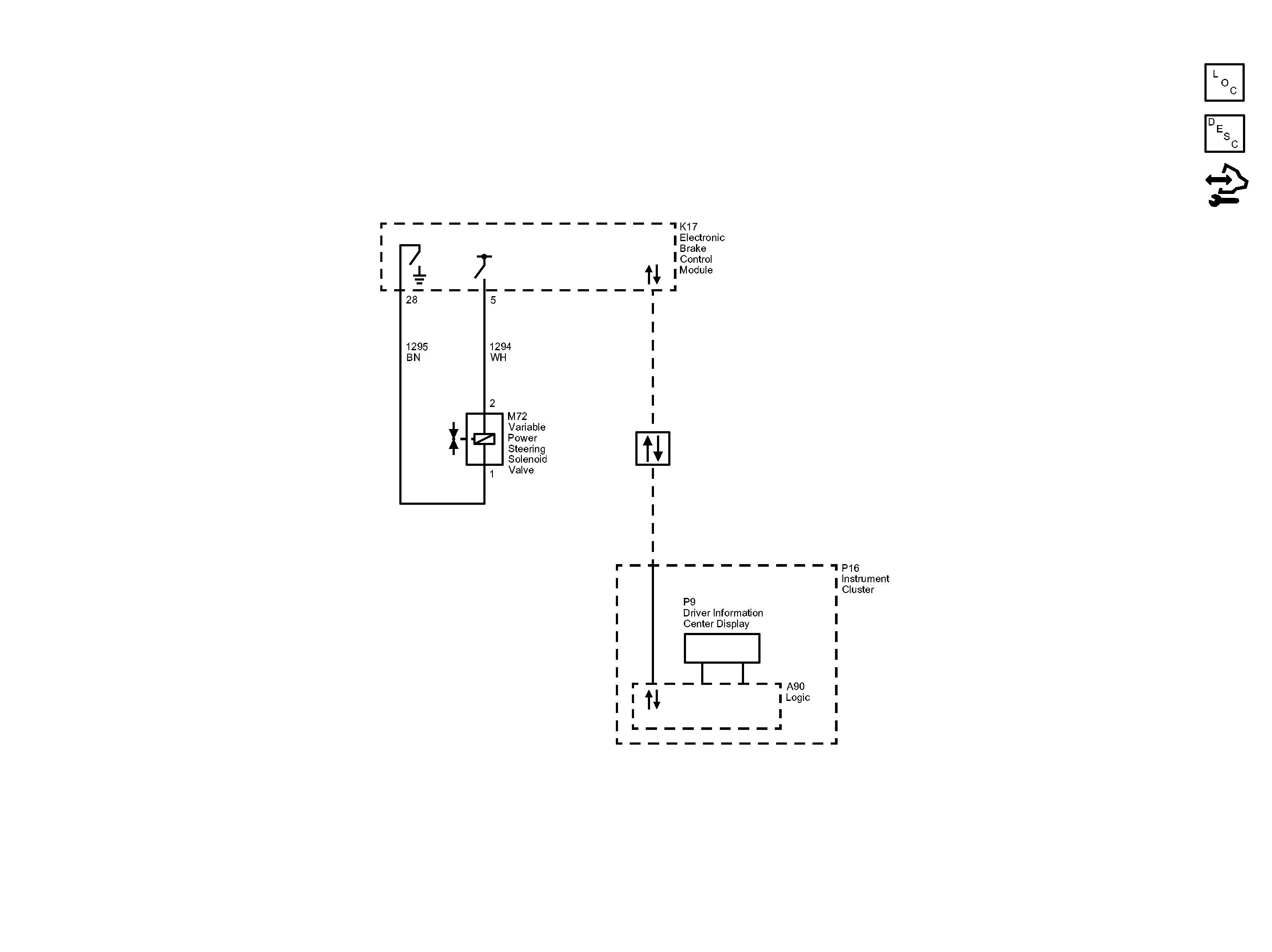

Fig 1: Power Steering (NV7) Wiring Schematic

GM2868225

Courtesy of GENERAL MOTORS COMPANY
