Driver Seat Adjuster Switch Replacement
WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

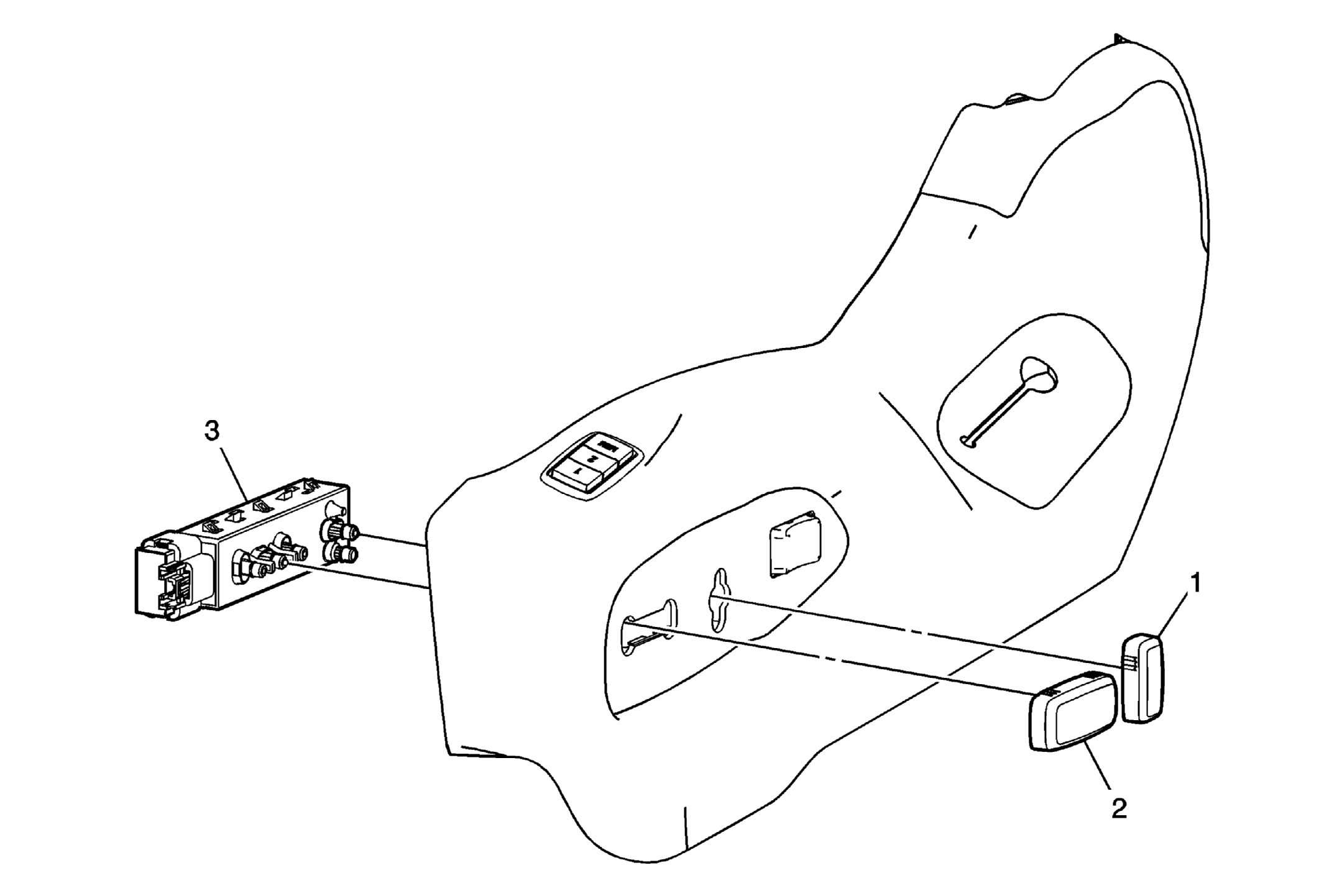

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the driver seat outer adjuster finish cover. Refer to Driver or Passenger Seat Outer Adjuster Finish Cover Replacement . |
|
| 1 | Driver Seat Recliner Knob TIP: Use a flat-bladed tool to release the knob from the switch. |
| 2 | Driver Seat Adjuster Knob TIP: Use a flat-bladed tool to release the knob from the switch. |
| 3 | Driver Seat Adjuster and Recliner Switch TIP: Use a flat-bladed tool to release the switch from the finish cover. |
