Starting and Charging Schematics: Charging

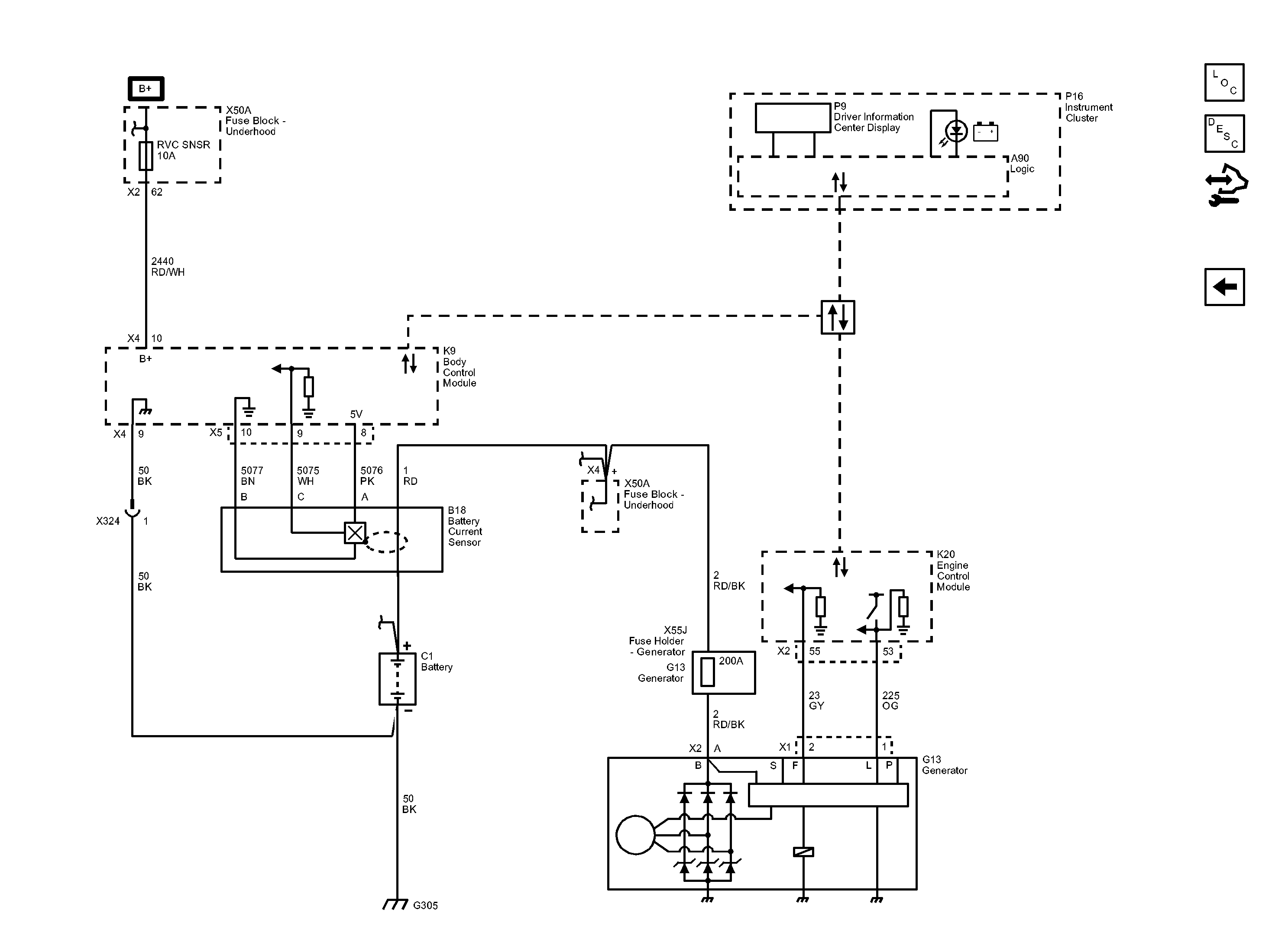

Fig 1: Charging System Wiring Schematic

GM2867621

Courtesy of GENERAL MOTORS COMPANY
