Stability Control

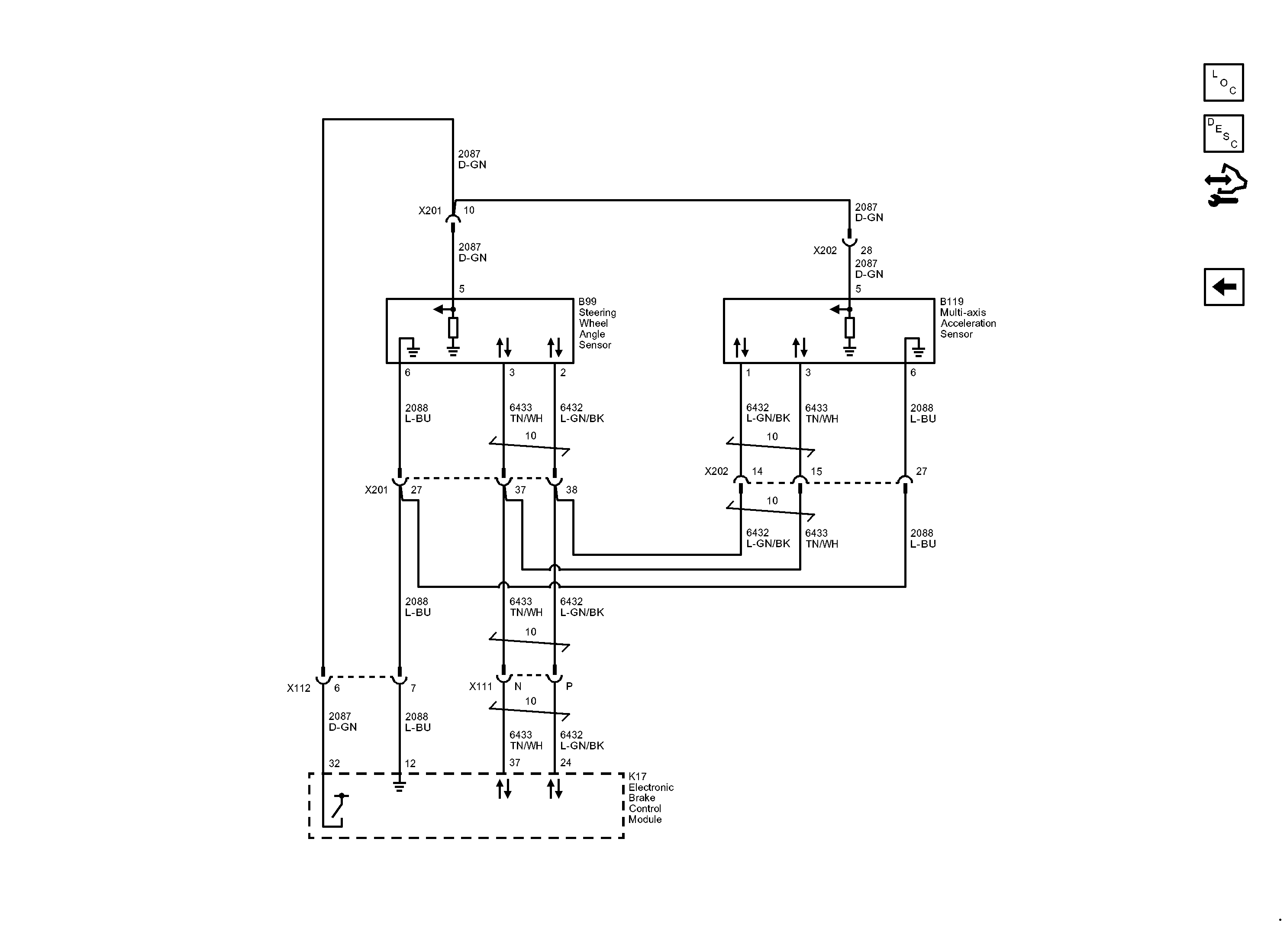

Fig 1: Stability Control Wiring Schematic
GM2867206Courtesy of GENERAL MOTORS COMPANY
