Immobilizer Schematics: Immobilizer

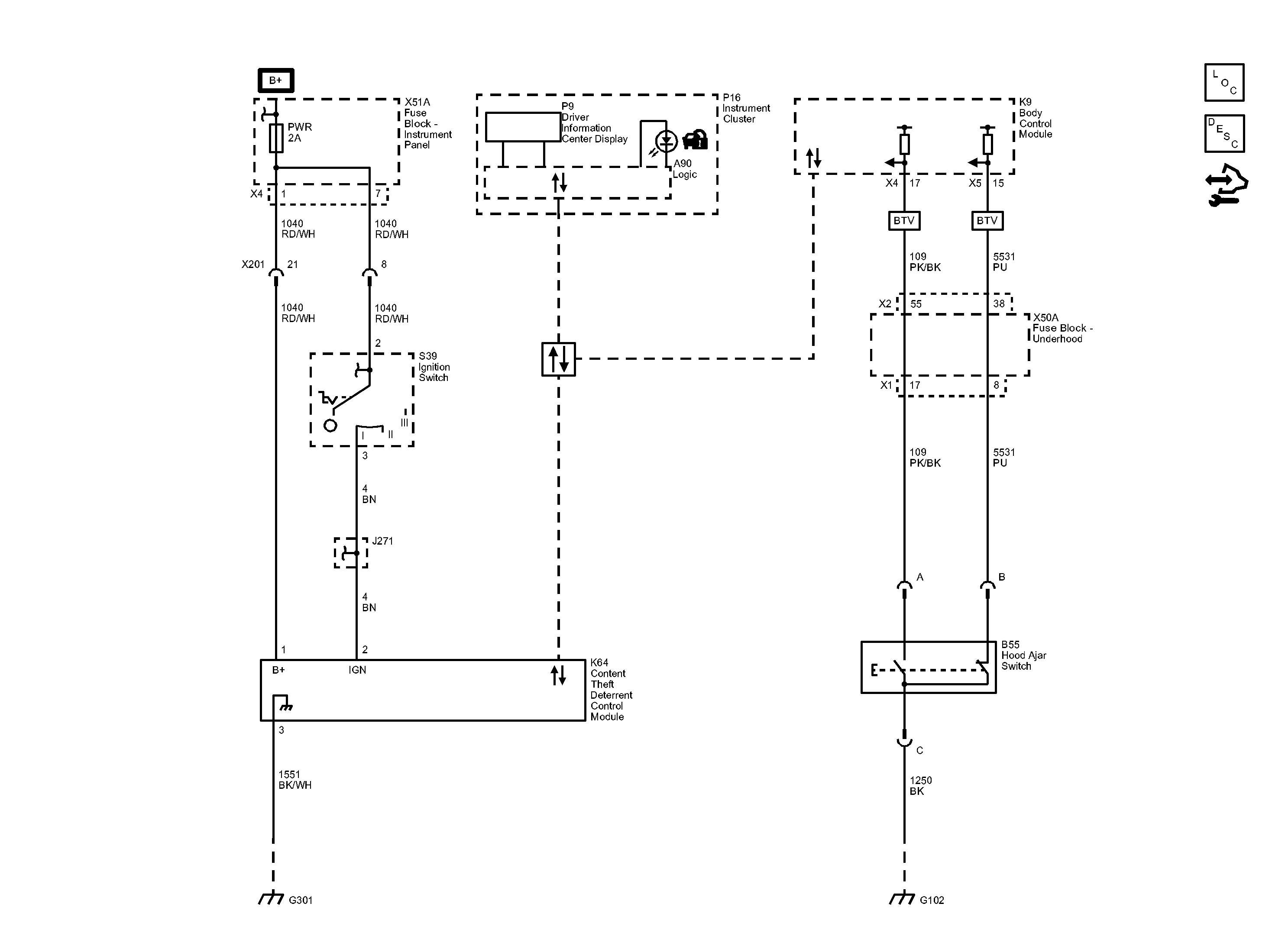

Fig 1: Immobilizer Wiring Schematic

GM2868130

Courtesy of GENERAL MOTORS COMPANY
