Moveable Window Wiring Schematics: Left

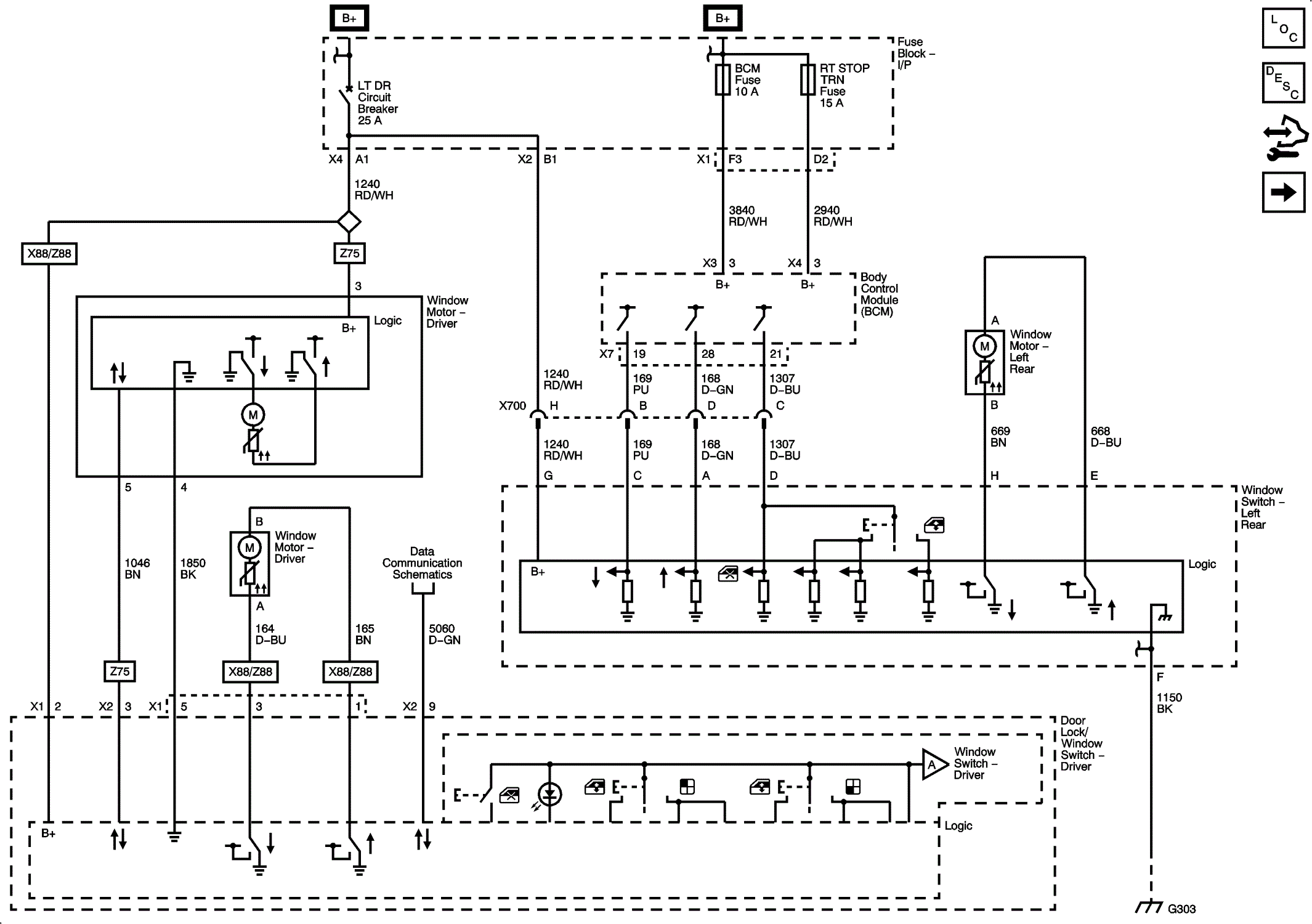

Fig 1: Left Moveable Window Wiring Schematic
GM2758980Courtesy of GENERAL MOTORS COMPANY
