Remote Control Door Lock Receiver Replacement

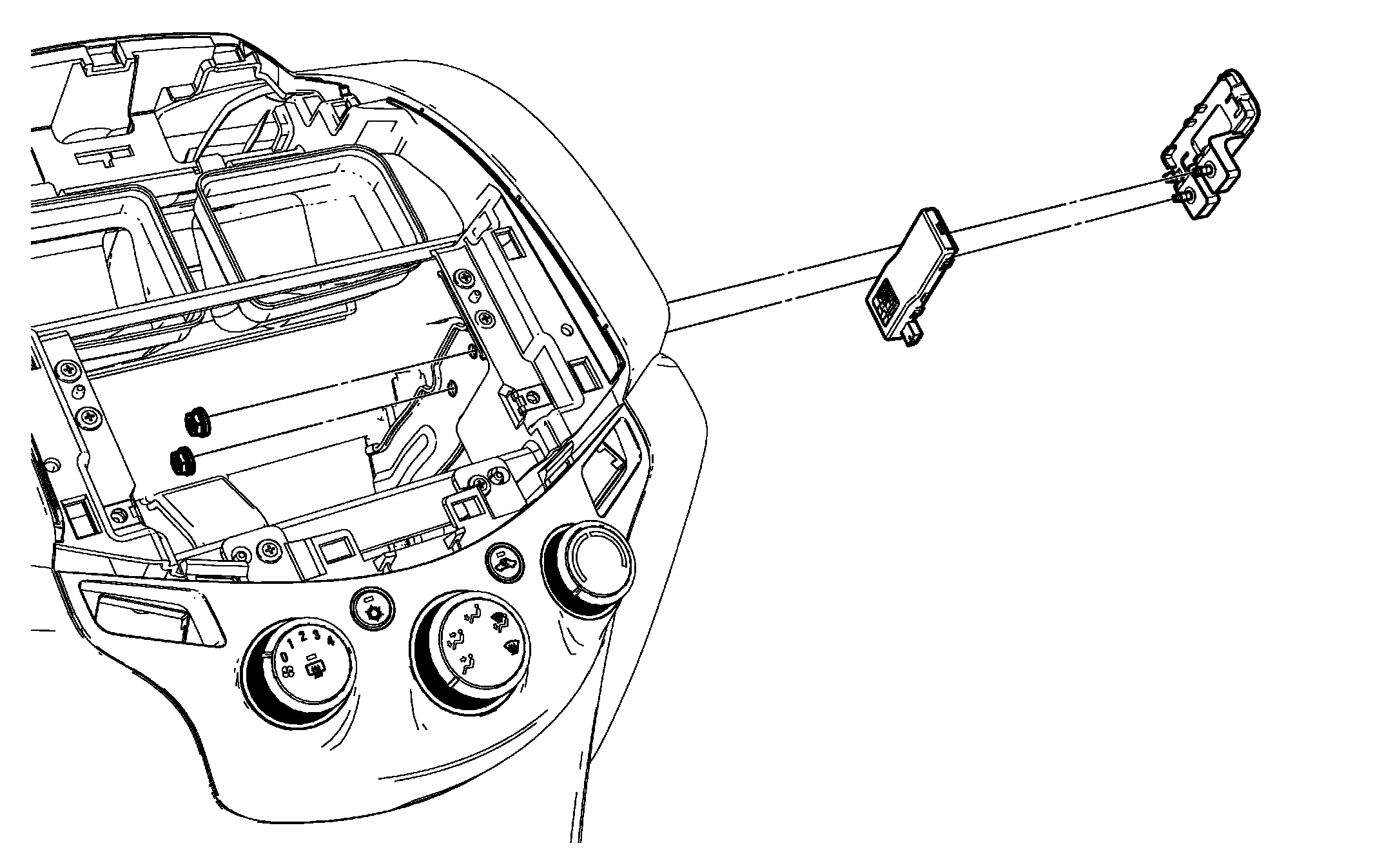

Courtesy of GENERAL MOTORS COMPANY Remote Control Door Lock Receiver Replacement
| Callout |
Component Name |
|
Preliminary Procedures
- Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement
.
- Remove the radio. Refer to Radio Replacement
.
|
| 1 |
Remote Control Door Lock Receiver Nut (Qty: 2)
Tighten
8 (71 lb in) |
| 2 |
Remote Control Door Lock Receiver Procedure
- Disconnect the electrical connector.
- Remove the remote control door lock receiver and bracket assembly.
- Remove the remote control door lock receiver from the bracket.
|
