Rear Side Door Window Regulator Replacement

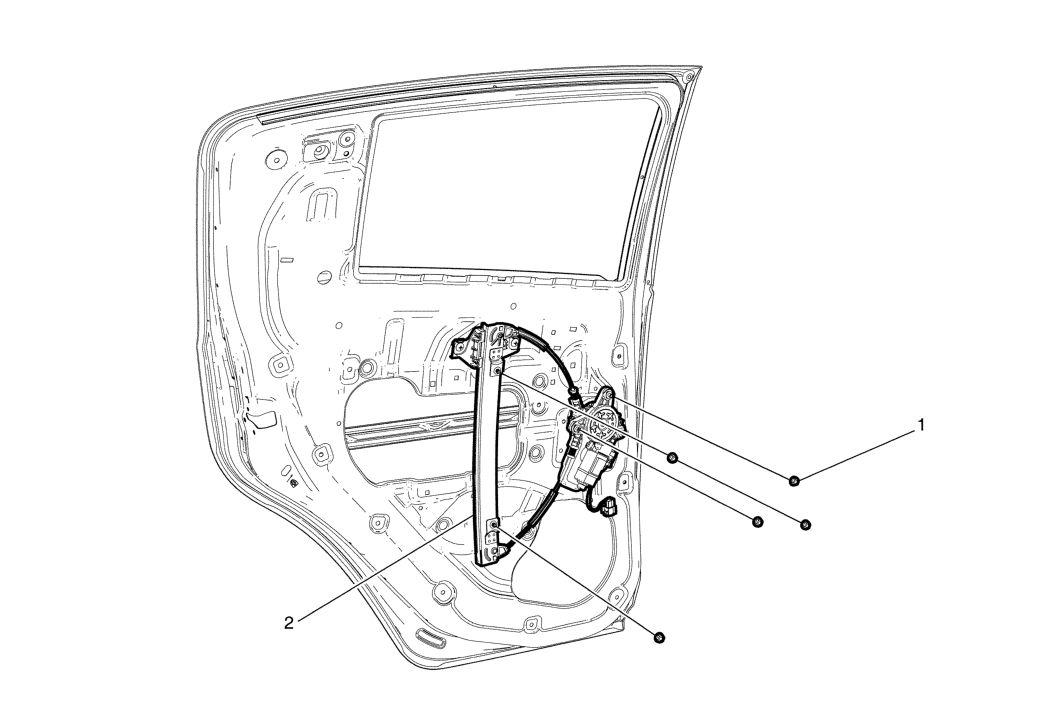

Fig 1: Rear Side Door Window Regulator
GM2309146Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Regulator Replacement

Callout Component Name
Preliminary Procedure
Remove the rear side door window. Refer to Rear Side Door Window Replacement .
1 Rear Side Door Window Regulator Nut (Qty: 5)
CAUTION:

Refer to Fastener Caution .


Tighten
8 N.m (71 lb in)
2 Rear Side Door Window Regulator Assembly
