Rear Side Door Window Channel Replacement

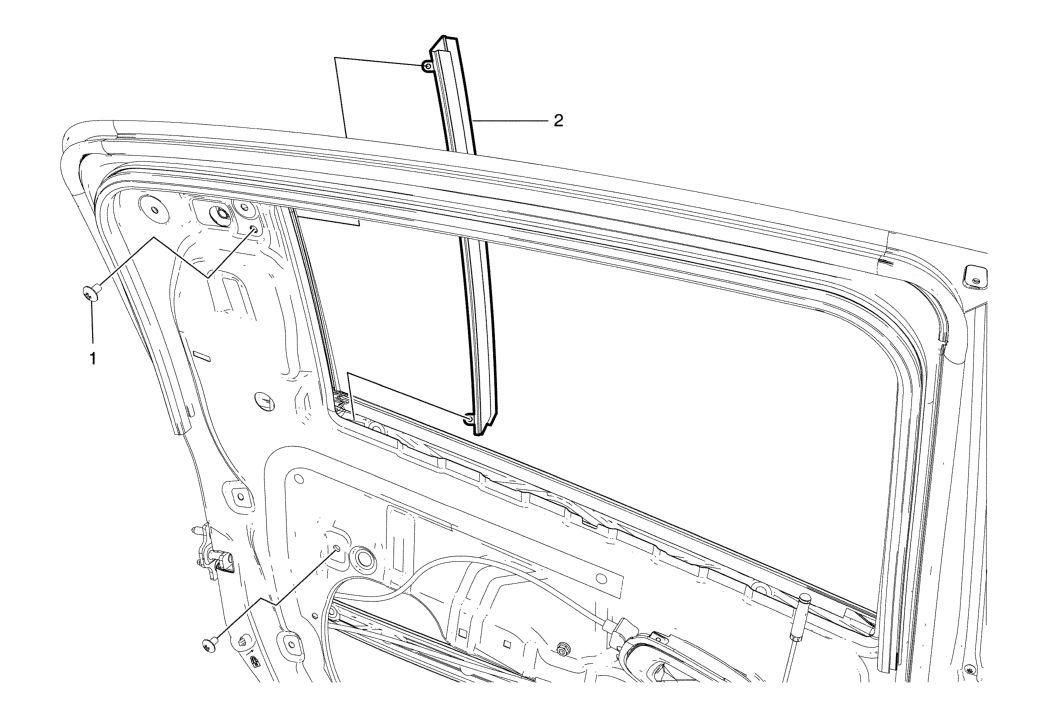

Fig 1: Rear Side Door Window Channel
GM2327702Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Channel Replacement

Callout Component Name
Preliminary Procedure
Remove the rear side door window. Refer to Rear Side Door Window Replacement .
1 Rear Side Door Window Channel Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
8 N.m (71 lb in)
2 Rear Side Door Window Channel Assembly
