Module Power, Ground and Subsystem References
WARNING: This page is about a different car, the 2014 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.

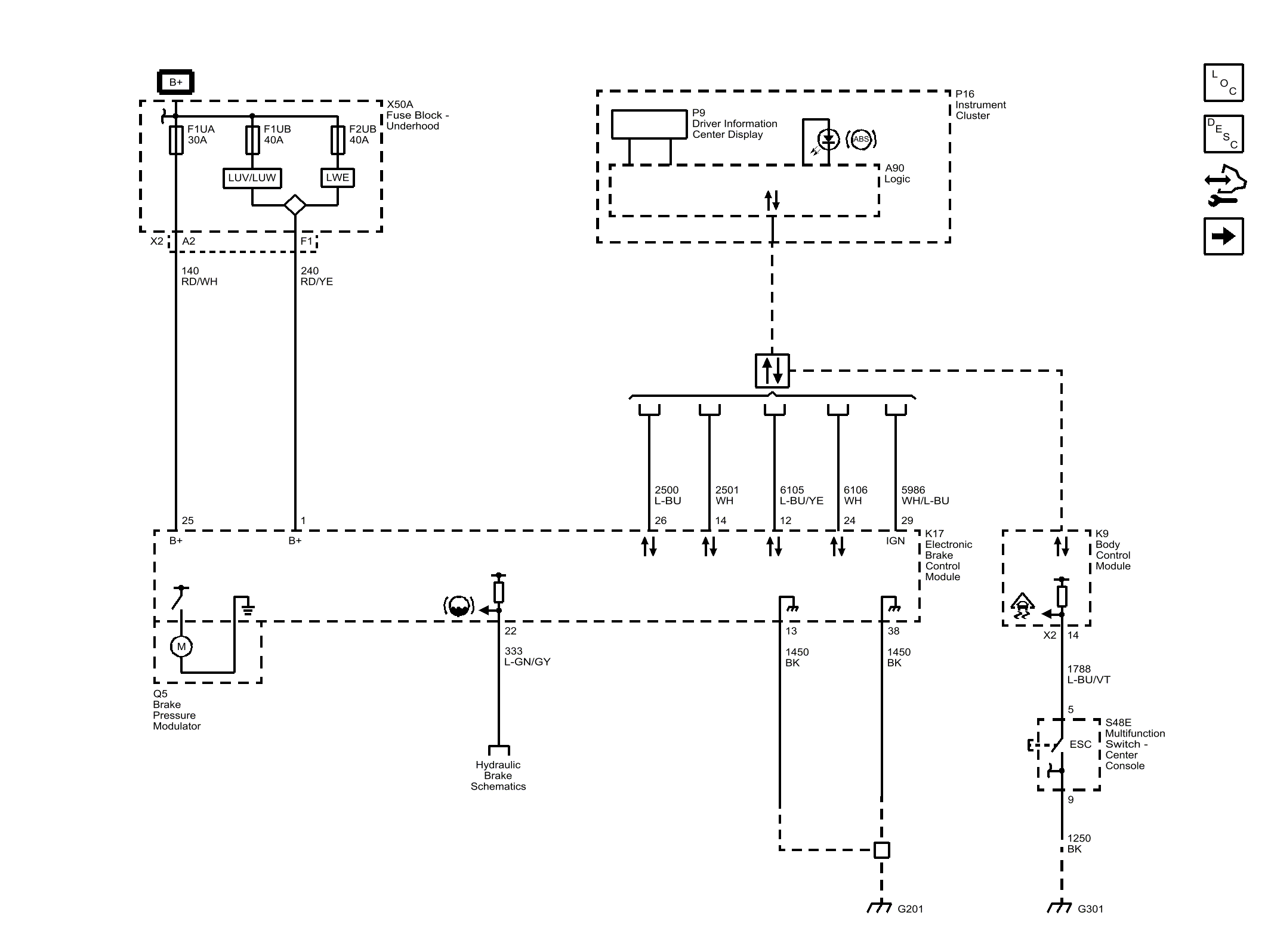

Fig 1: Module Power, Ground and Subsystem References Wiring Schematic
