Door Lock Switch Replacement
WARNING: This page is about a different car, the 2014 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.
Door Lock Switch Replacement

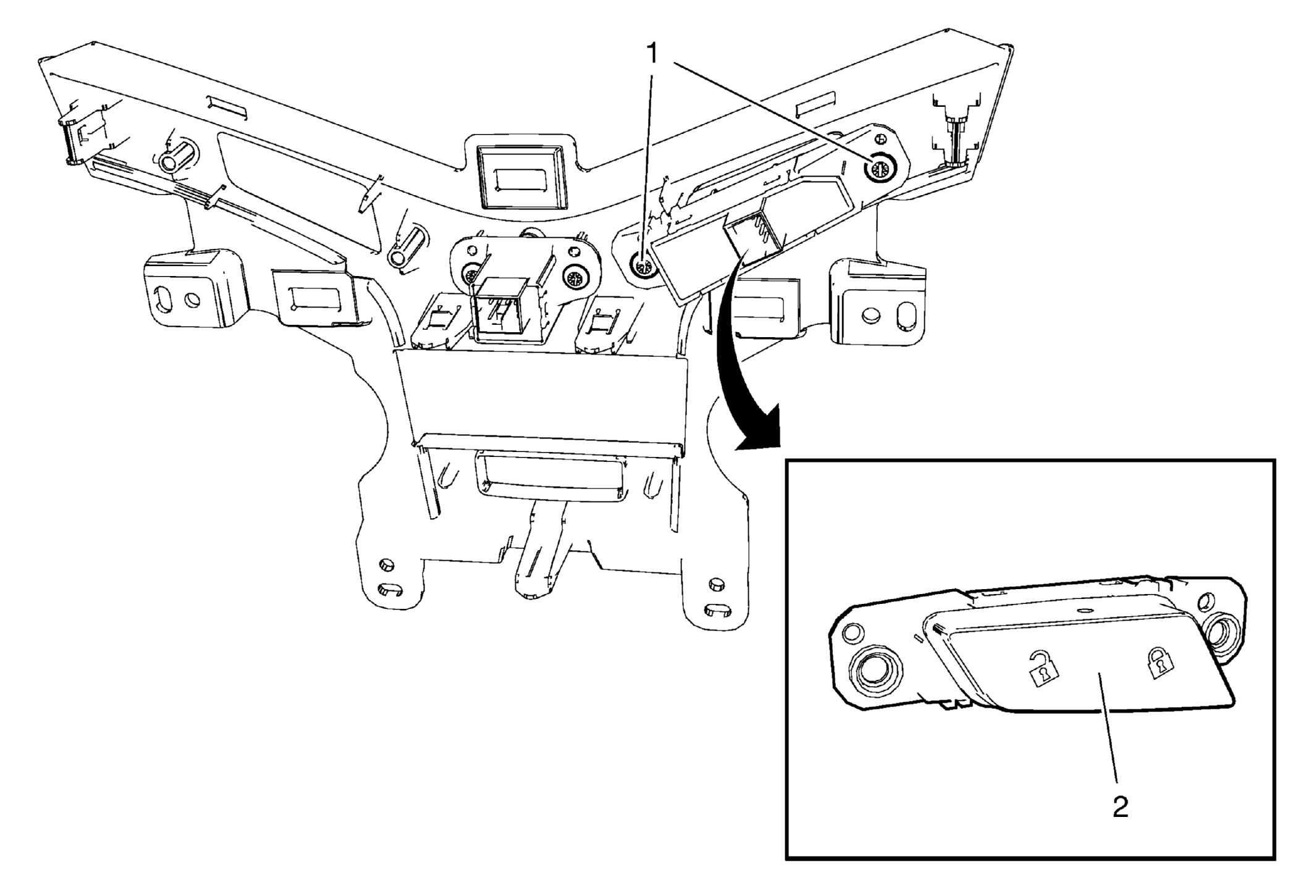

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove instrument panel accessory bezel. Refer to Instrument Panel Accessory Bezel Replacement . |
|
| 1 | Door Lock Switch Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in) |
| 2 | Door Lock Switch Procedure Disconnect electrical connector. |
