Engine Coolant Temperature Sensor Replacement (Water Outlet)

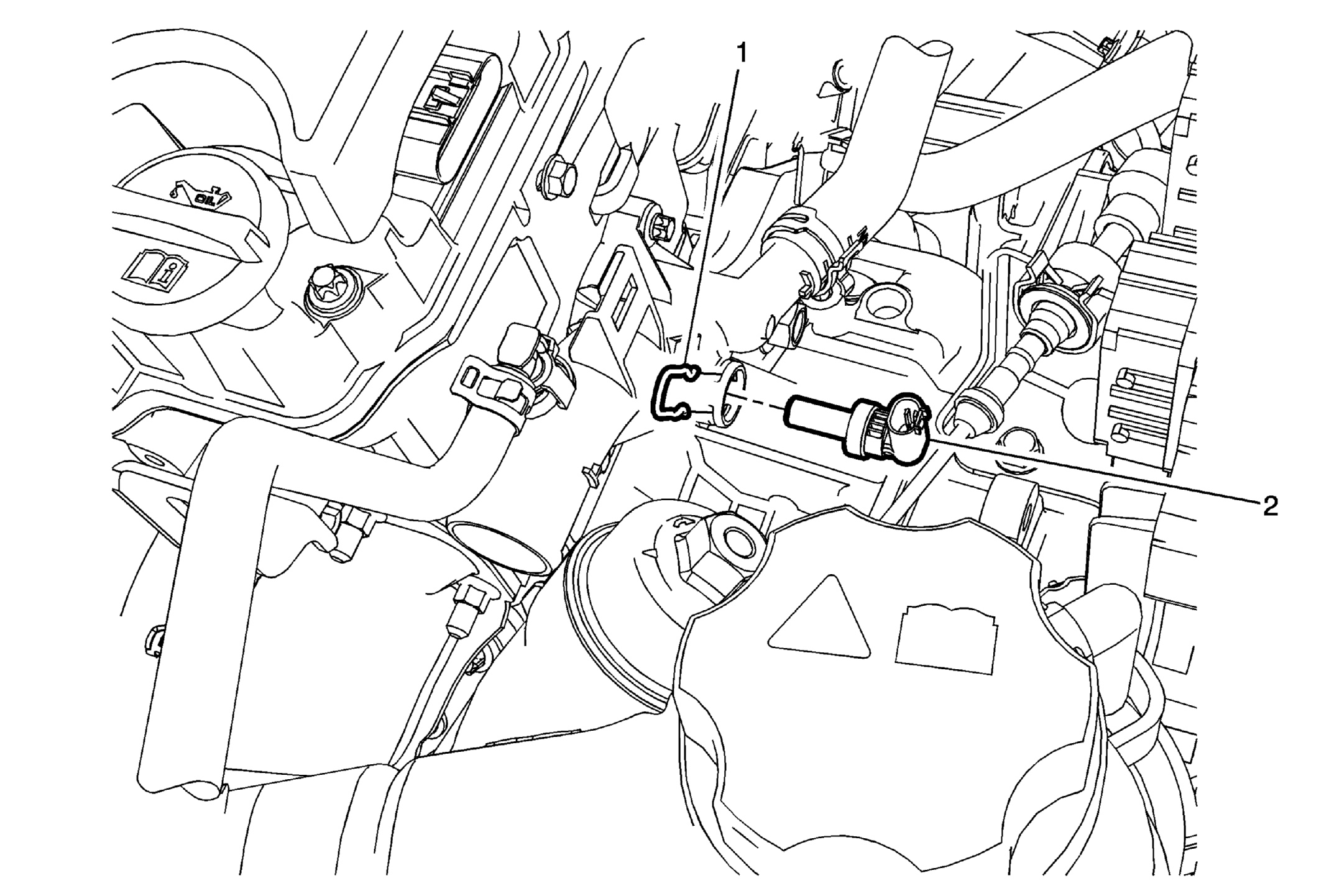

Fig 1: Engine Coolant Temperature Sensor (On Water Outlet)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Drain the cooling system. Refer to Cooling System Draining and Filling .
1	Engine Coolant Temperature Sensor Fastener
2	Engine Coolant Temperature Sensor Procedure Disconnect the electrical wiring harness connector from the engine coolant temperature sensor.

Callout

Component Name

Preliminary Procedure

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Drain the cooling system. Refer to Cooling System Draining and Filling .

Engine Coolant Temperature Sensor Fastener

Engine Coolant Temperature Sensor
Procedure
Disconnect the electrical wiring harness connector from the engine coolant temperature sensor.
