Stability Control System

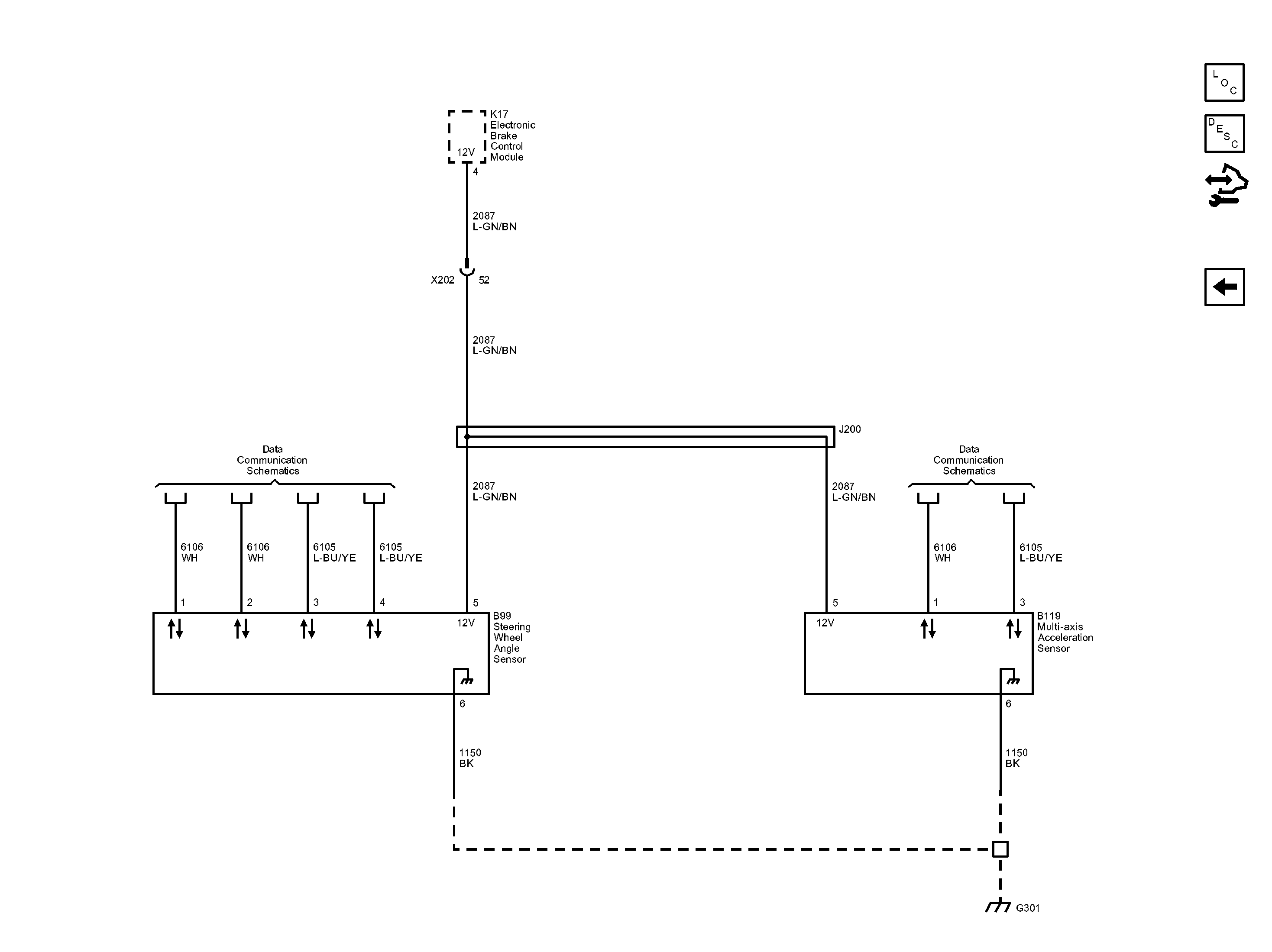

Fig 1: Stability Control System Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
