Door Lock Switch Replacement

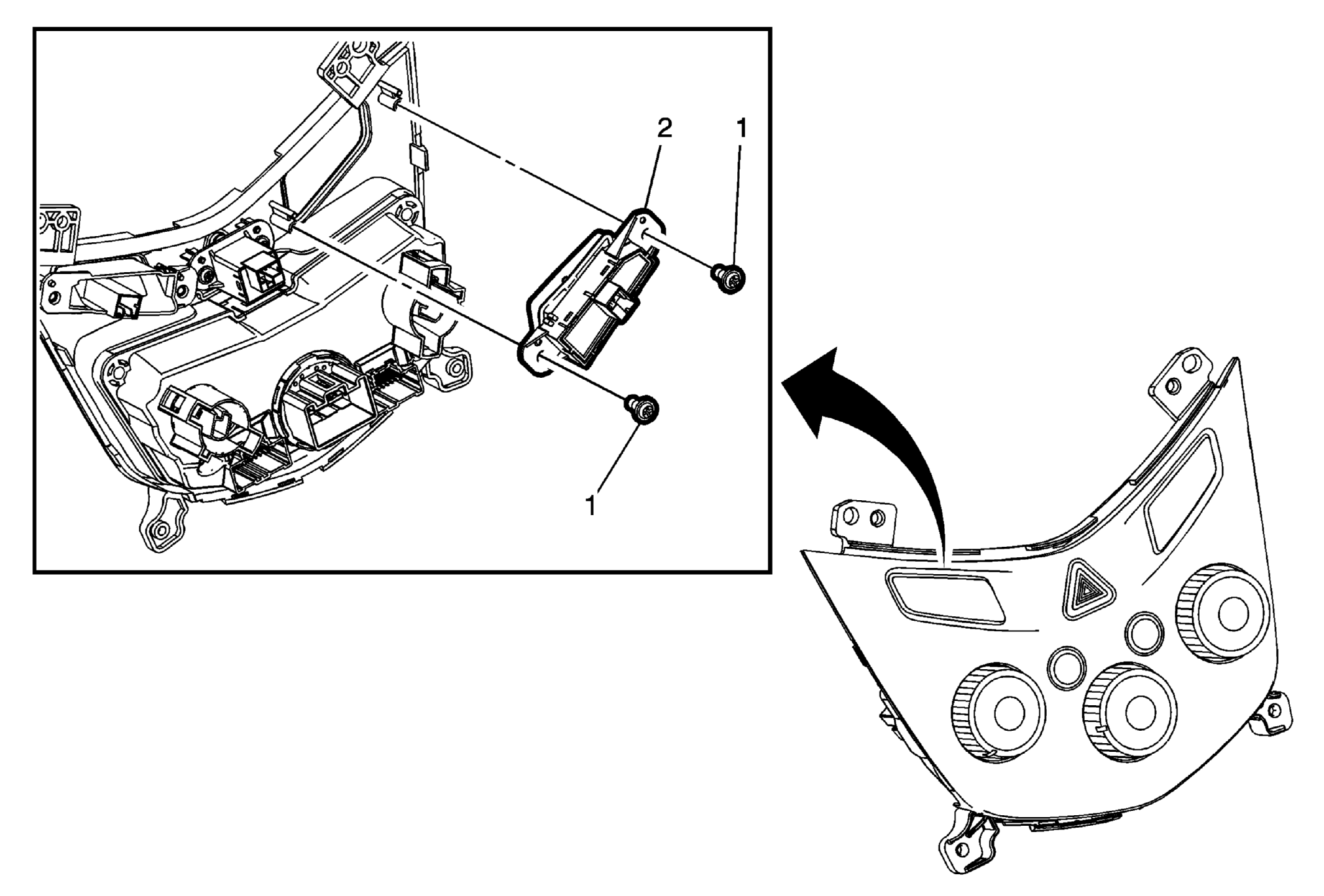

Fig 1: Door Lock Switch
GM2496186Courtesy of GENERAL MOTORS COMPANY
Door Lock Switch Replacement

Callout Component Name
Preliminary Procedure
Remove the heater and air conditioning control. Refer to Heater and Air Conditioning Control Replacement .
1 Door Lock Switch Bolts (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Door Lock Switch
Procedure
Disconnect the electrical connector.
