X50D Fuse Block - Battery, Top View
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

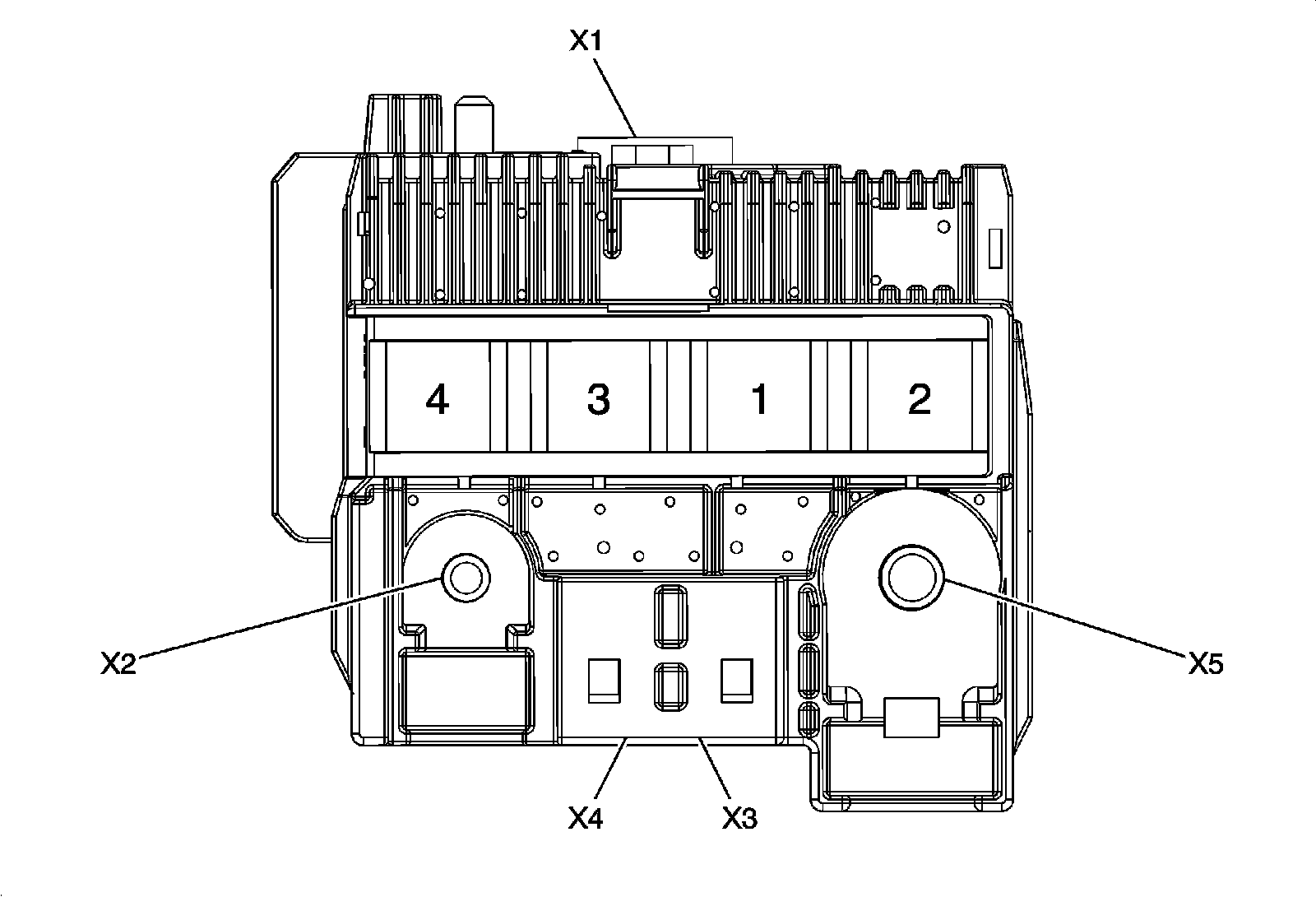

X50D Fuse Block - Battery, Top View
Electrical Center Identification Views
X50D Fuse Block - Battery, Top View
