Steering Wheel Controls Switch - Left (K34)

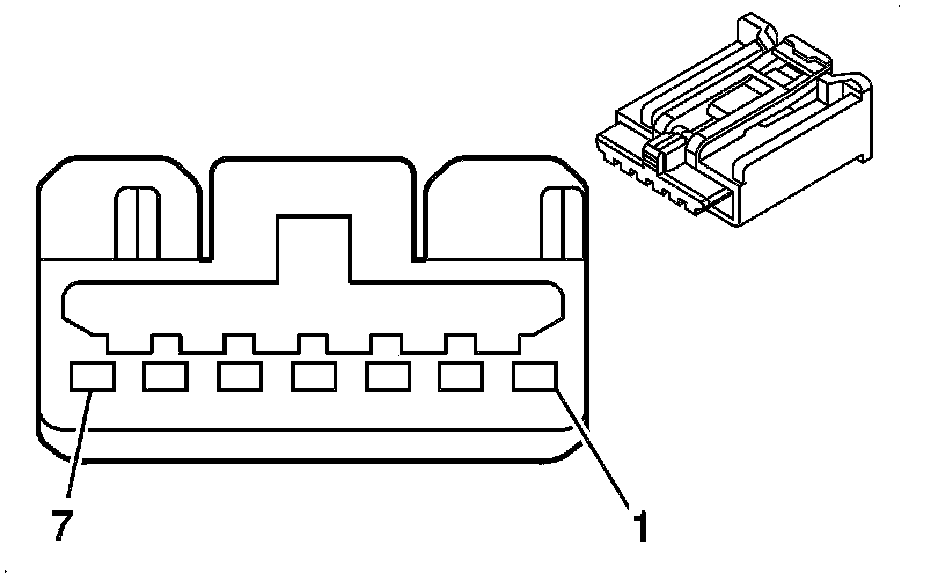

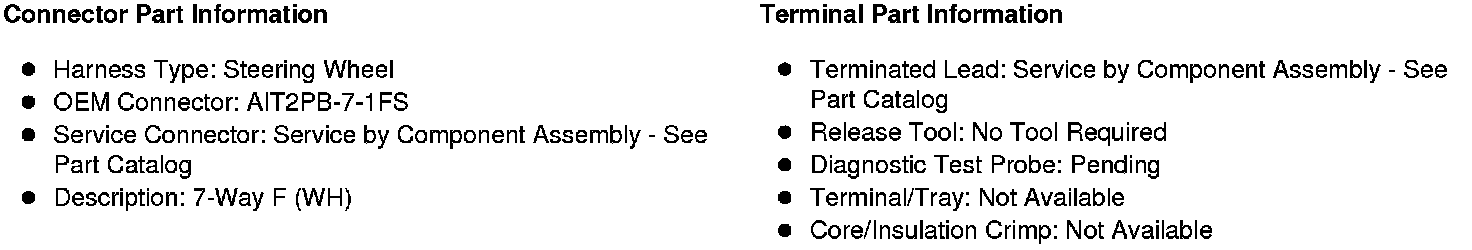

Component Connector End Views

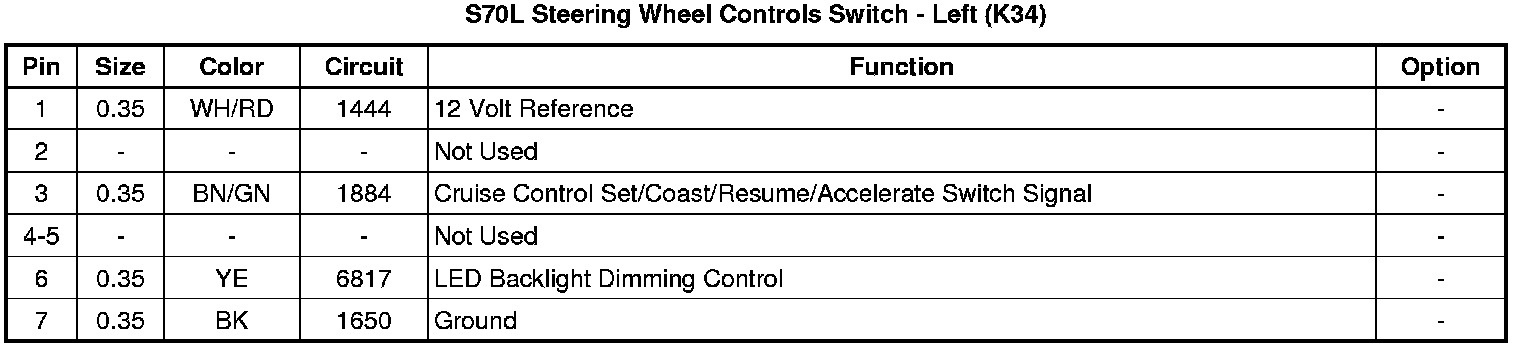

S70L Steering Wheel Controls Switch - Left (K34)
