Main Relay (Computer/Fuel System)
>>
Locations
>>
Fuse Block - Underhood Top View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Fuse Block - Underhood Top View

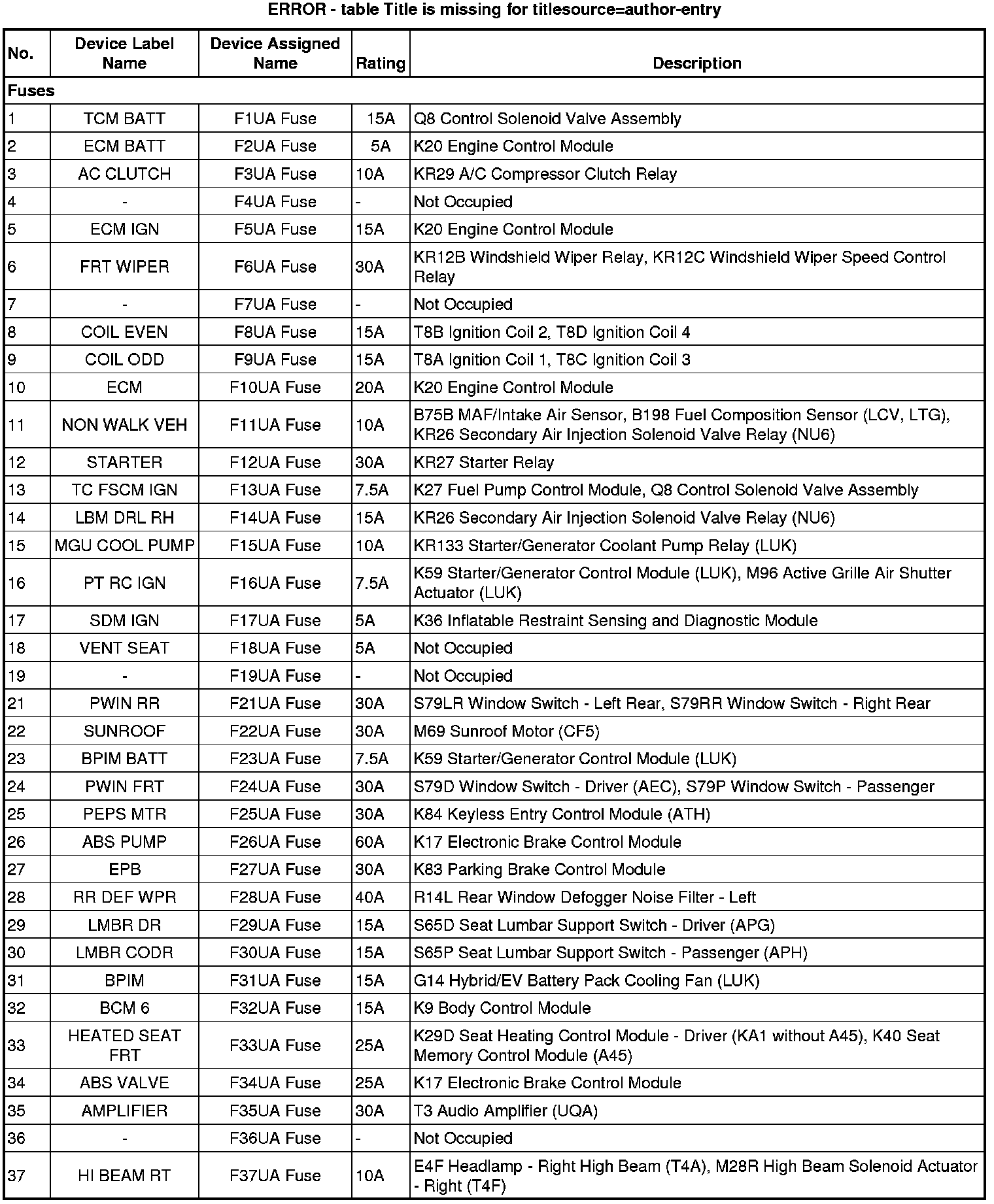

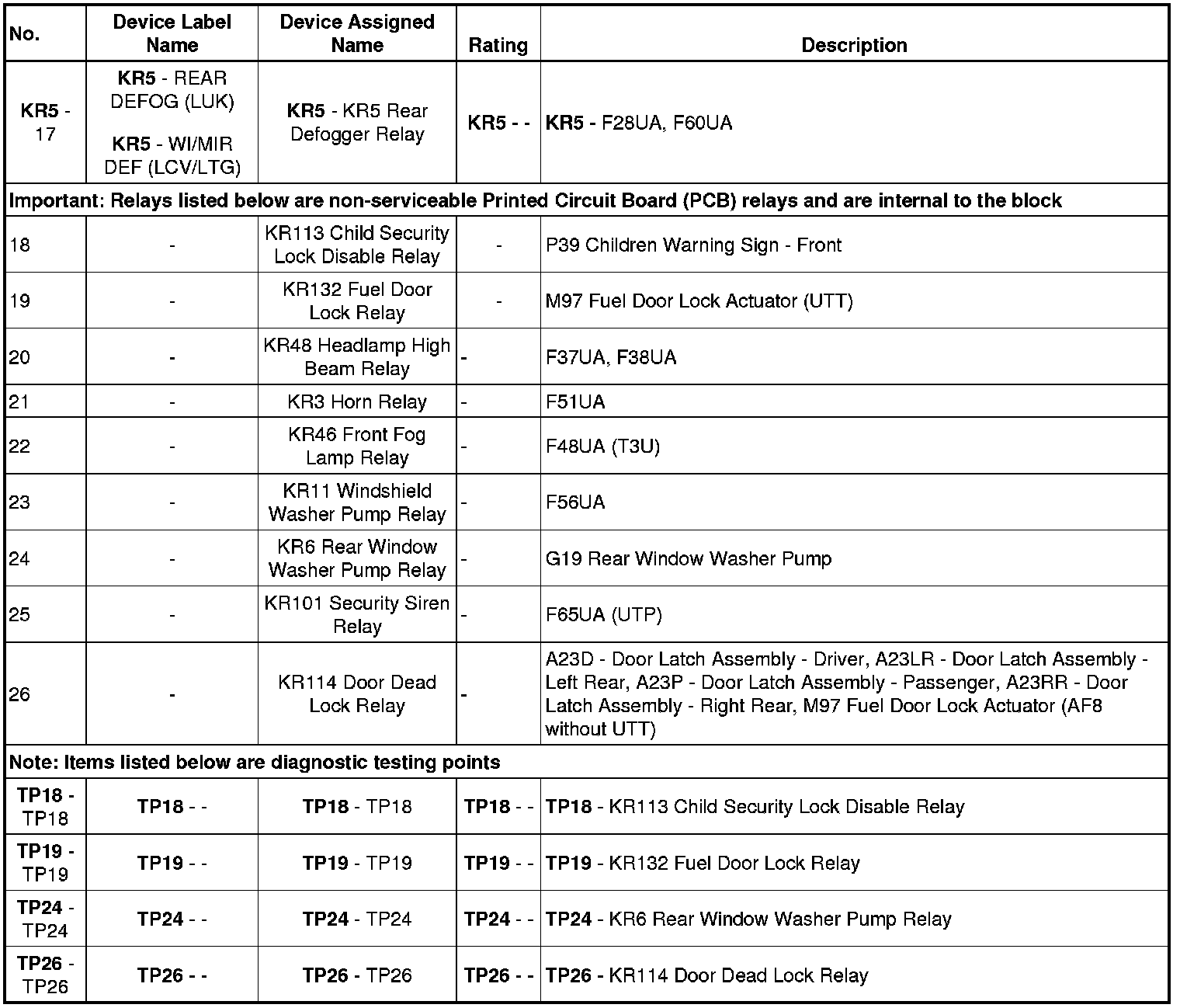

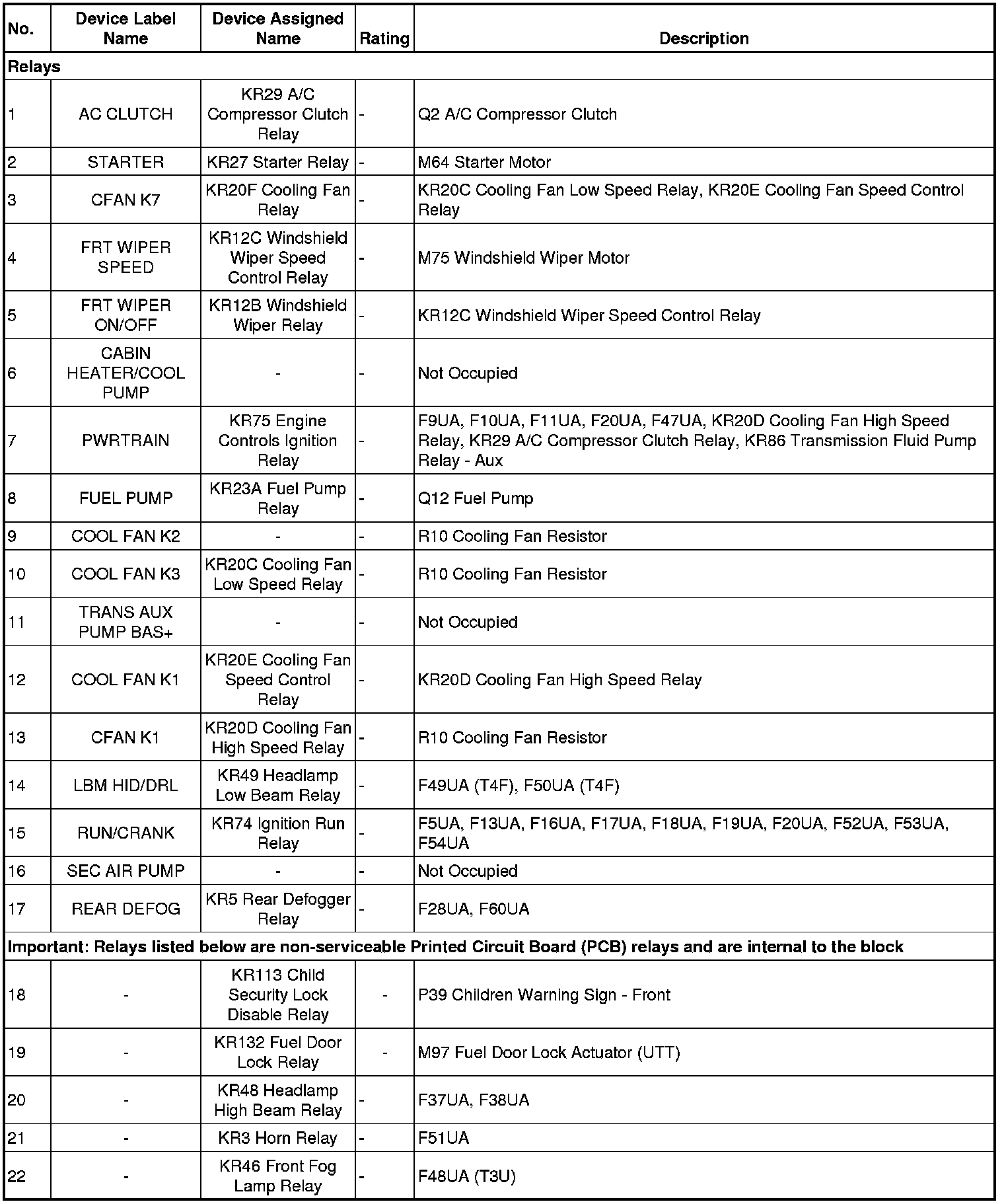

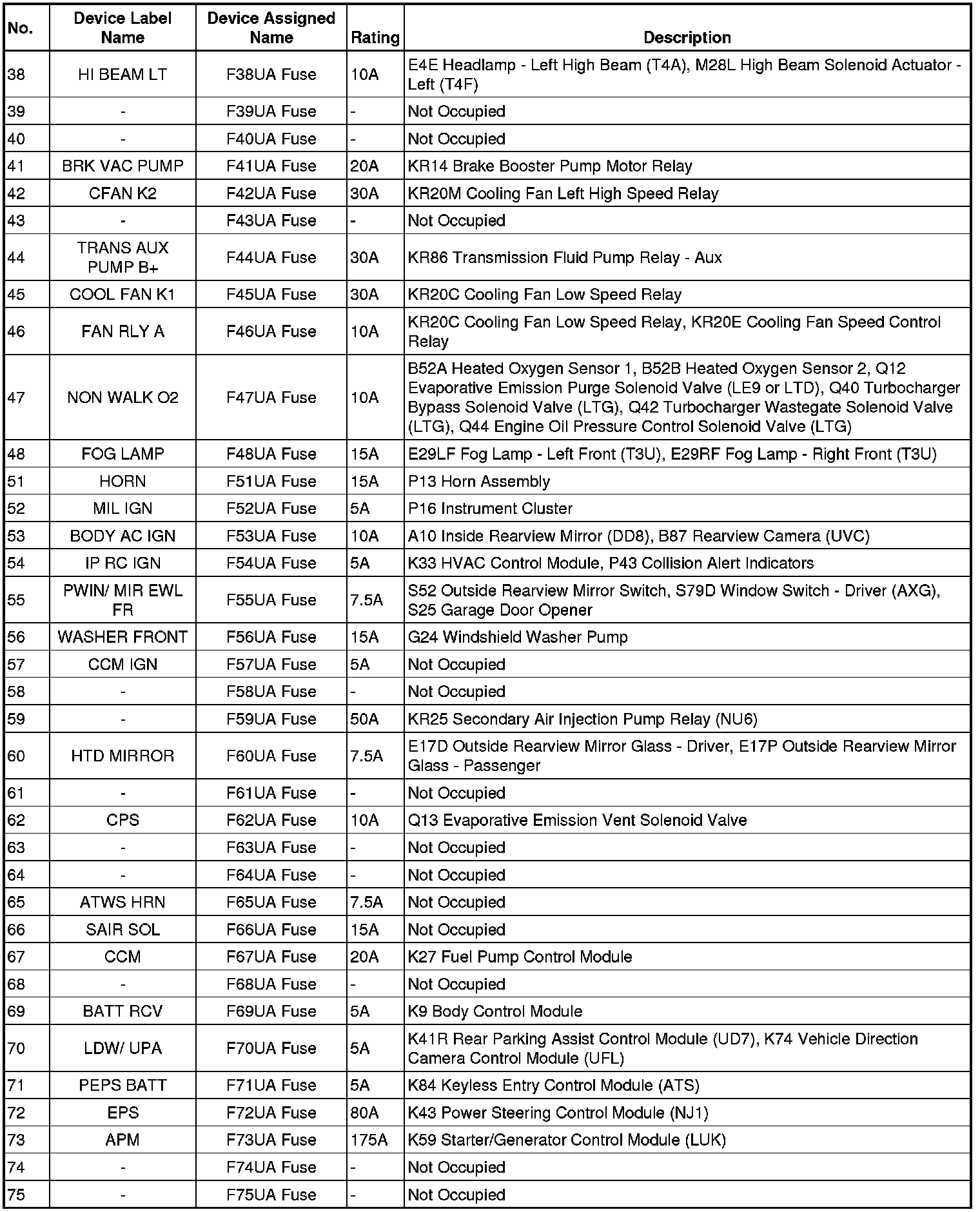

Electrical Center Identification Views

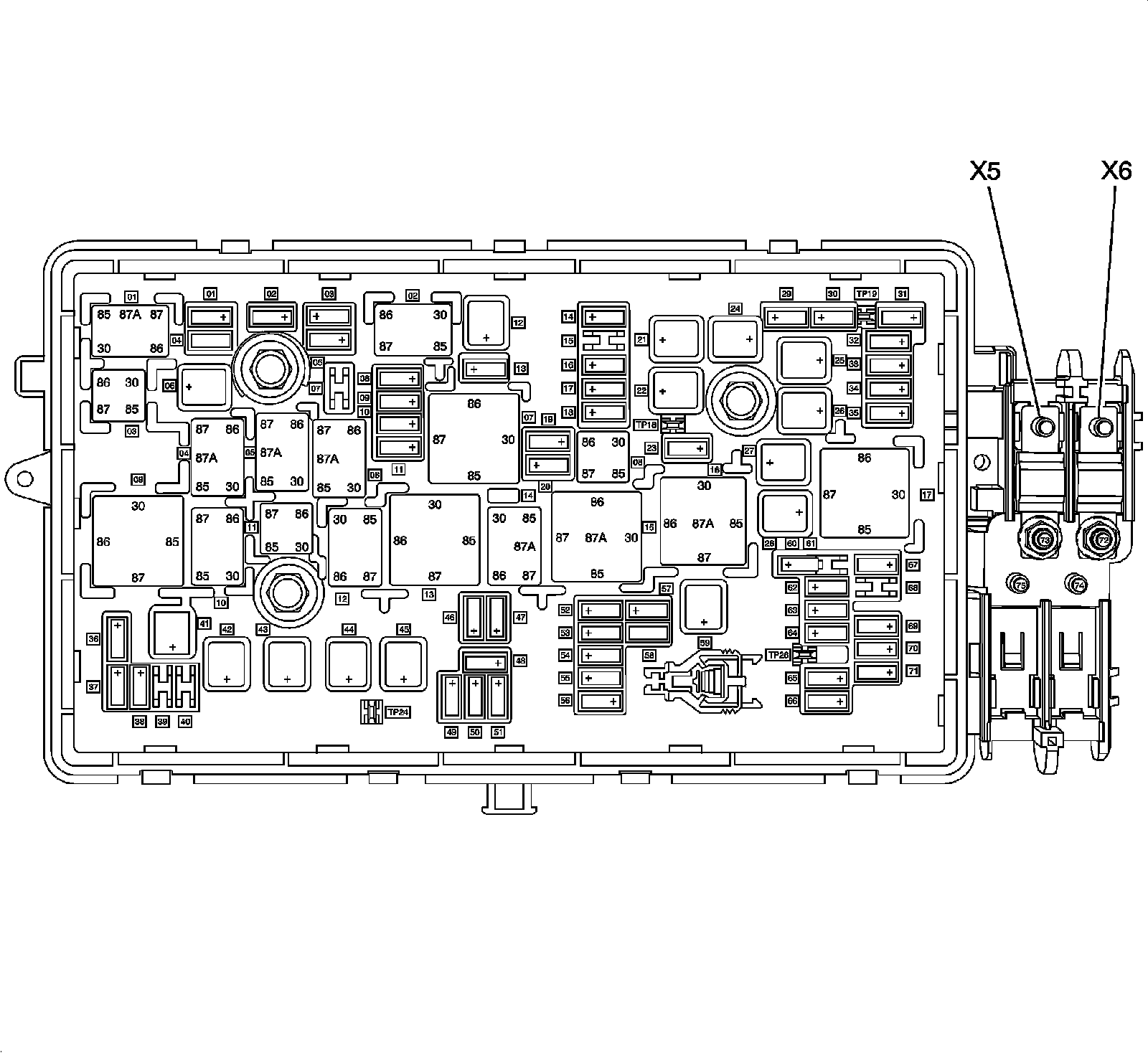

X50A Fuse Block - Underhood Top View
