Water Pump

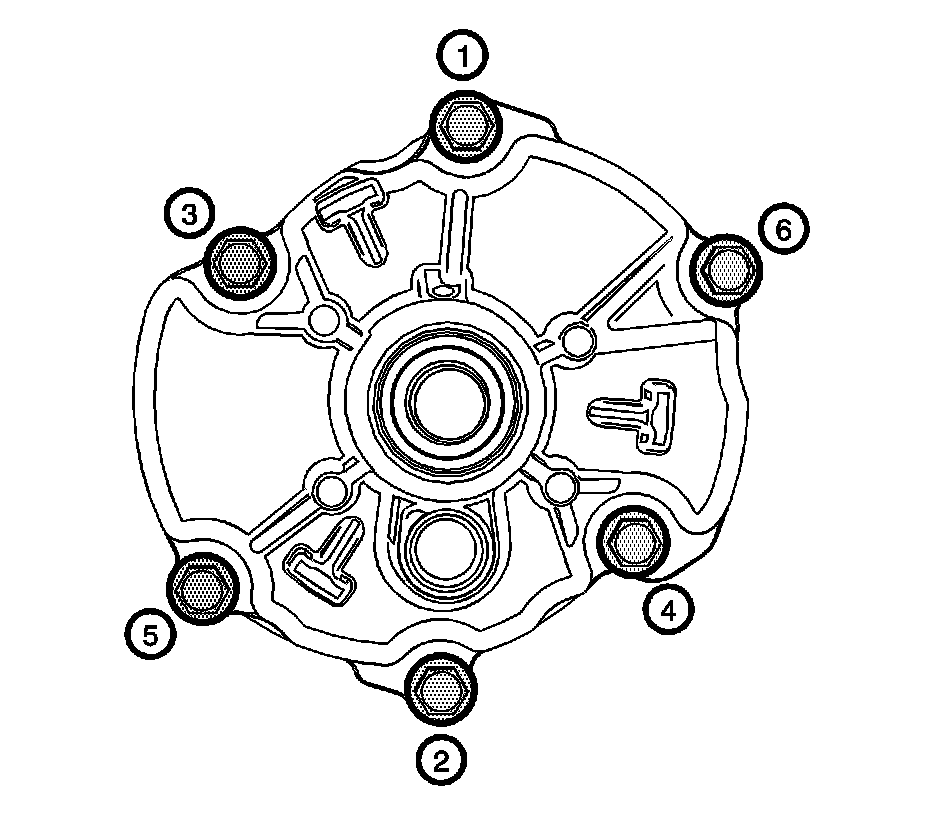

Tighten the water pump bolts in the sequence shown to 12 Nm (106 lb in).
Tighten the water pump bolts a second pass in sequence to 12 Nm (106 lb in).
