Front Center Seat Belt Buckle Replacement

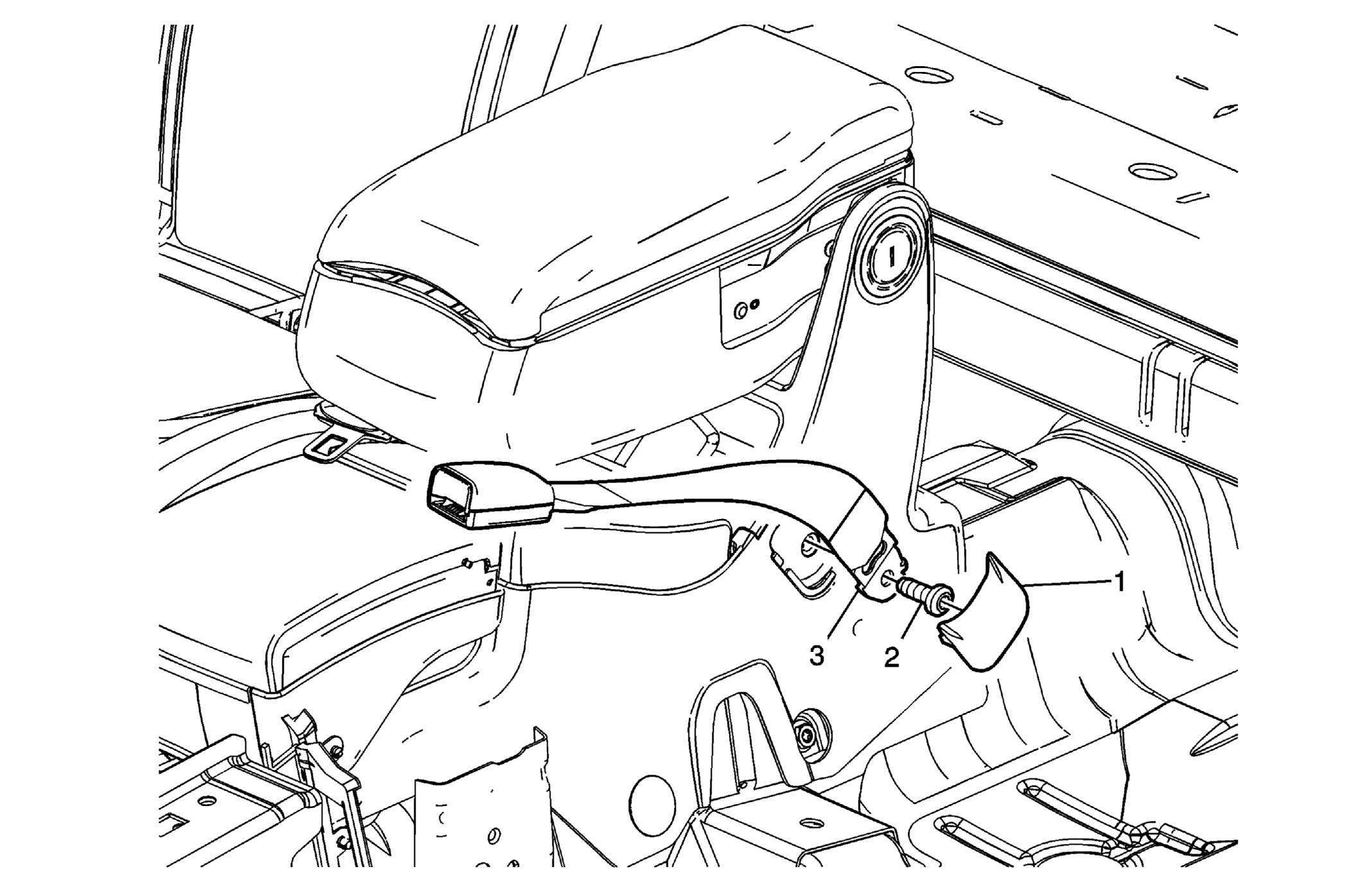

Fig 1: Center Front Seat Belt Buckle, Bolt & Trim Plate

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Center Front Seat Trim Plate TIP: Slide the driver seat to the full forward position and adjust the seat back to the full forward position to allow access.
2	Seat Belt Buckle Center Front Bolt CAUTION: Refer to Fastener Caution . Tighten 42 N.m (31 lb ft)
3	Seat Belt Center Front Buckle
