July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!
Data Link, Starting and Charging, Engine Controls, AT Shift Lock Controls, Cruise Control, ABS, Brake Warning, Headlights/DRL and Fog Lights References

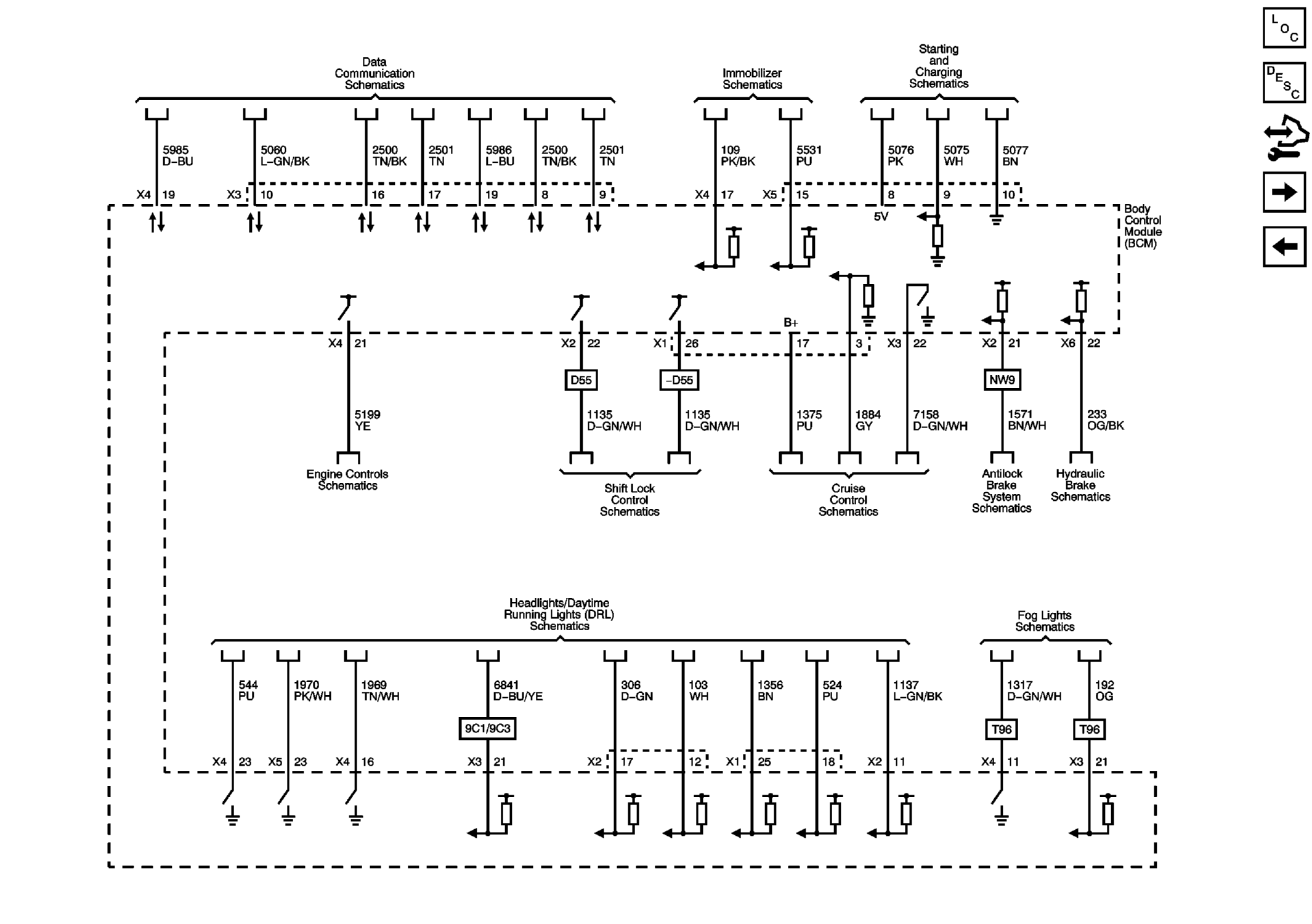

Fig 1: Data Link, Starting and Charging, Engine Controls, AT Shift Lock Controls, Cruise Control, ABS, Brake Warning, Headlights/DRL and Fog Lights References Wiring Schematic
