Radio X2
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

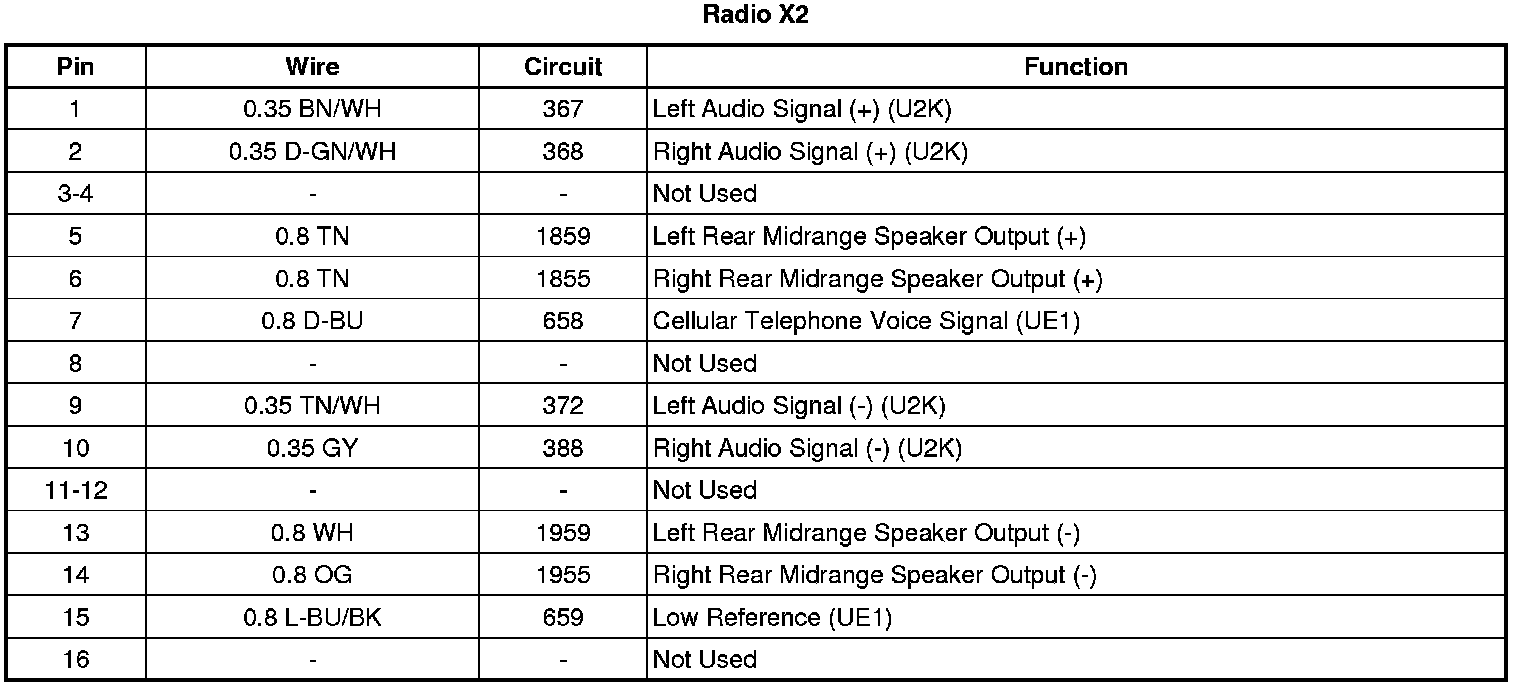

Radio X2

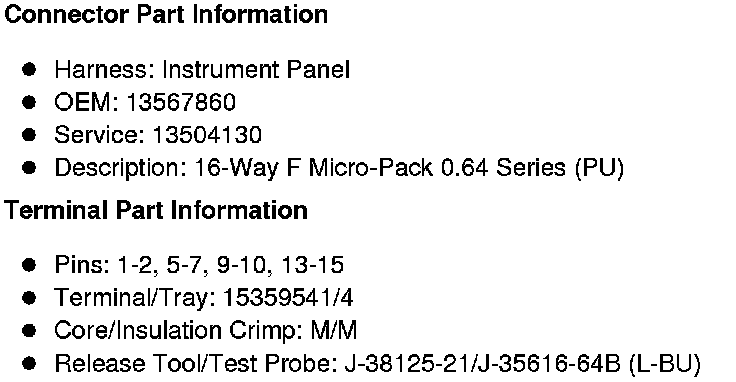

Component Connector End Views
Radio X2
