Front Side Marker Lamp Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

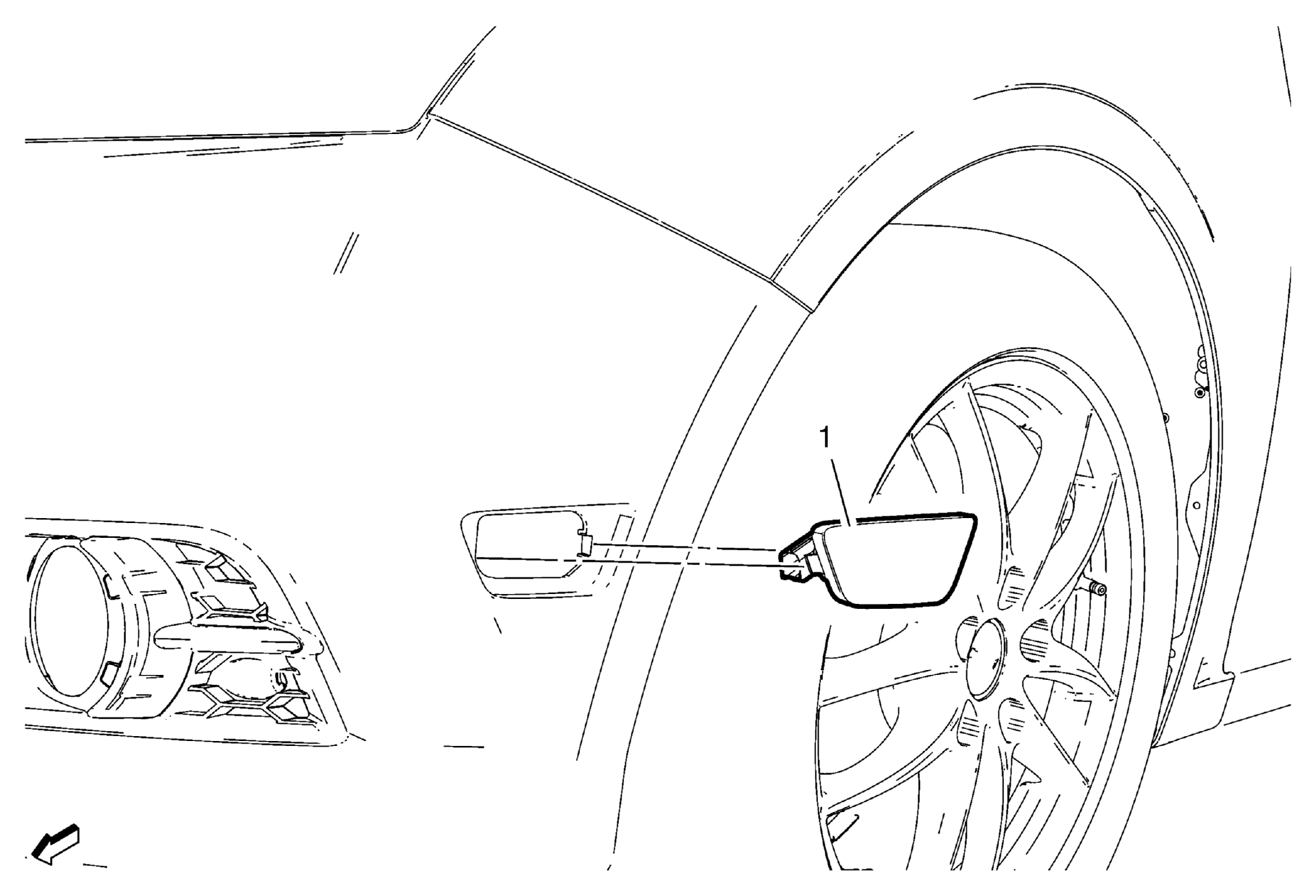

Fig 1: Front Side Marker Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Loosen the front portion of the front wheelhouse liner to gain access to the front side mark lamp clip. Refer to Front Wheelhouse Liner Replacement .
1	Front Side Marker Lamp Procedure Depress the retaining clip at the rear edge of the front side marker lamp. Remove the front side marker lamp from the fascia. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Loosen the front portion of the front wheelhouse liner to gain access to the front side mark lamp clip. Refer to Front Wheelhouse Liner Replacement .

Front Side Marker Lamp

Procedure

Depress the retaining clip at the rear edge of the front side marker lamp.
Remove the front side marker lamp from the fascia.
Disconnect the electrical connector.
