Fluid Pan, A/T

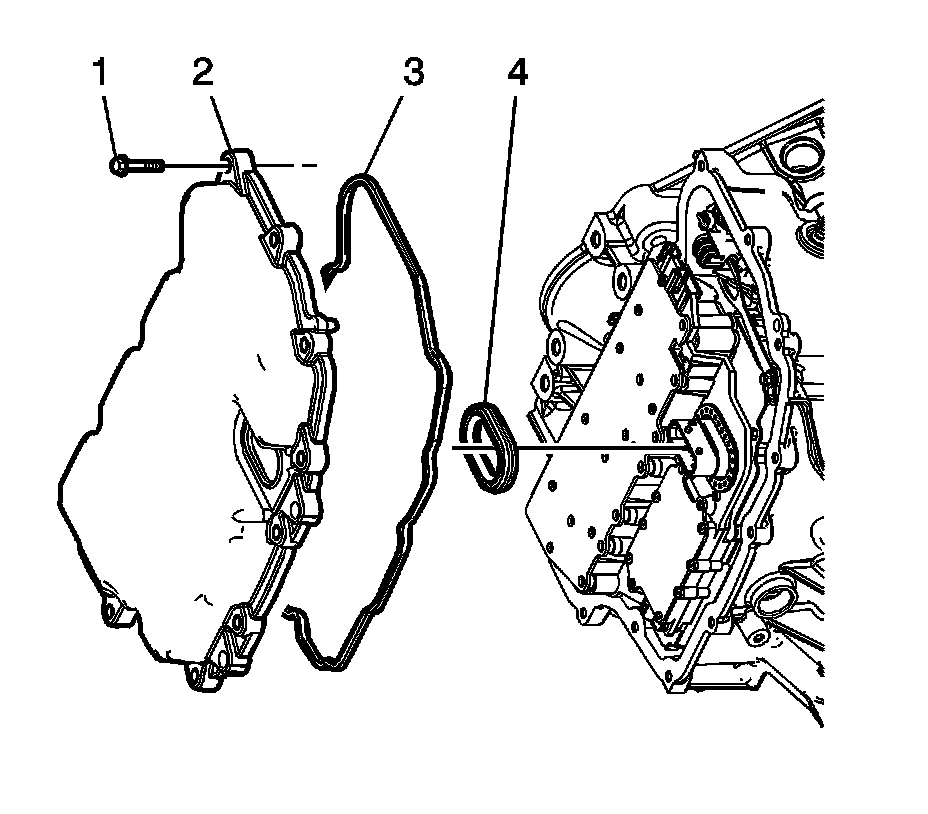

Install the control valve body cover wiring connector hole seal (4).
Install the control valve body cover gasket (3) to the control valve body cover.






Install all control valve body cover bolts and studs by hand then torque all bolts and studs in sequence.

Tighten the bolts in sequence to 12 Nm (106 lb in).
