Moveable Window Wiring Schematics: Driver

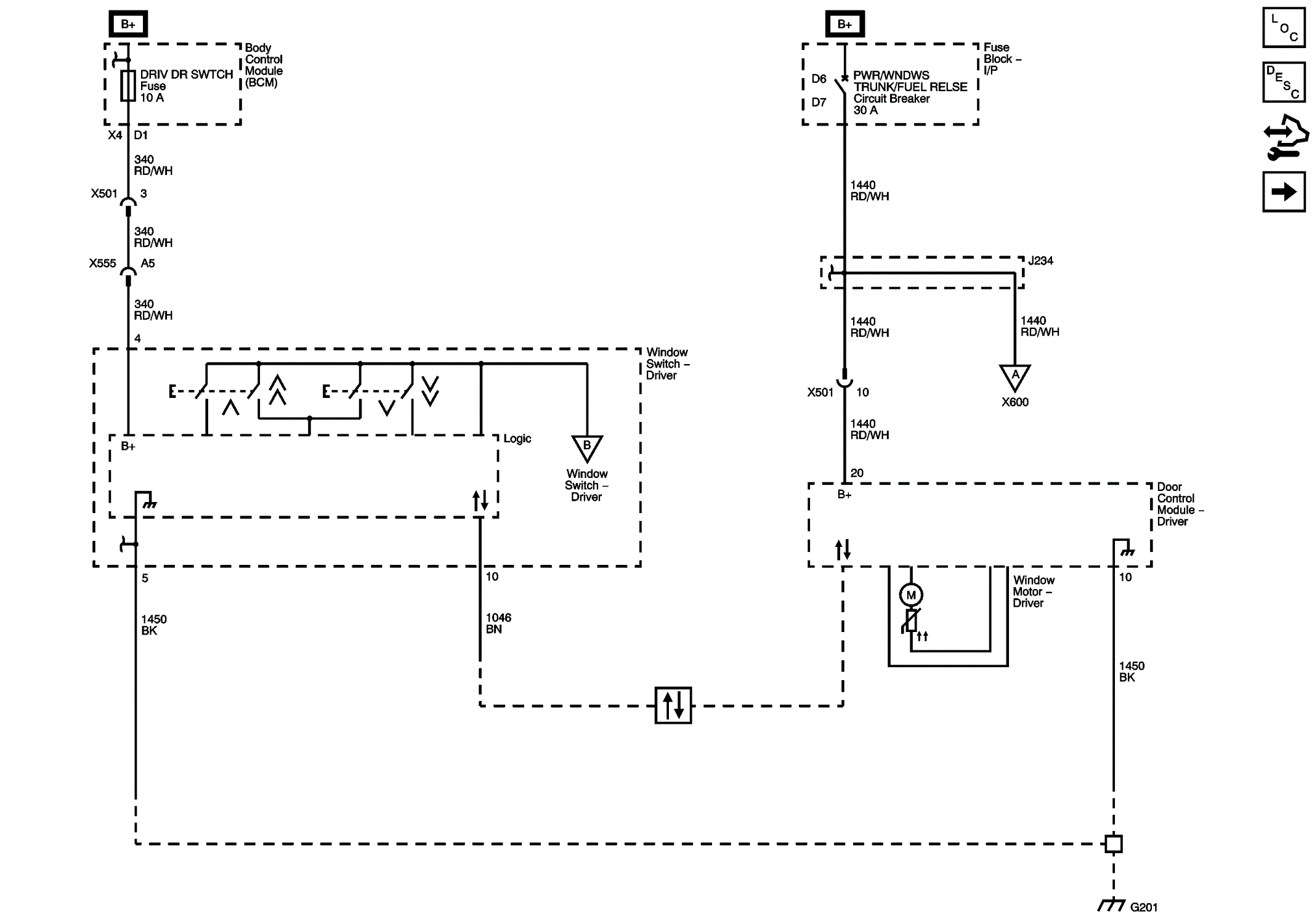

Fig 1: Driver Window Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
