Serial Data Communications Enable and Accessory Wake Up

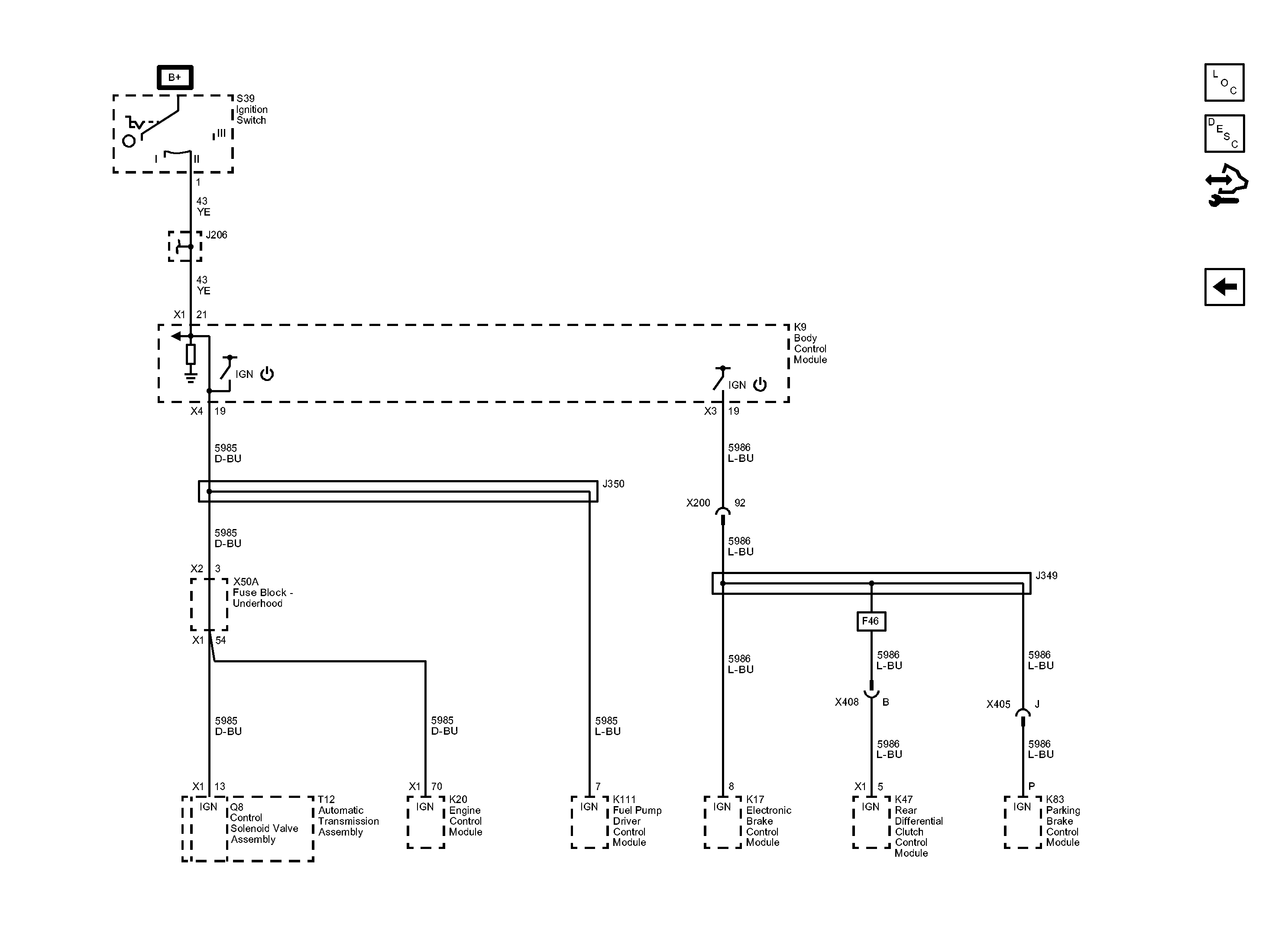

Fig 1: Serial Data Communications Enable and Accessory Wake Up Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
