Power Moding Schematics




Power Moding Schematics

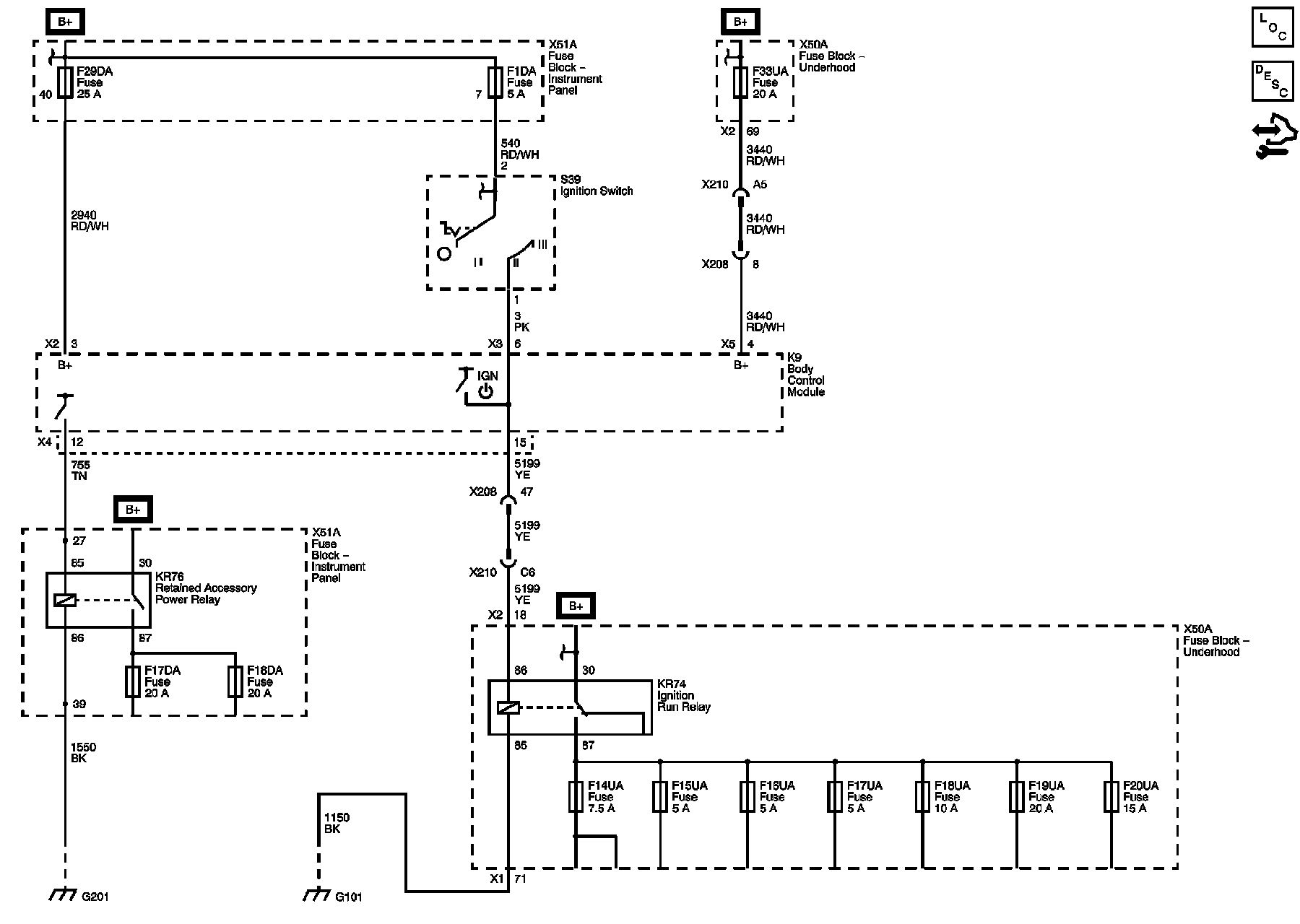

Power Moding





F6D, F15D, F16D, F25D, F27D, F29D, F30D Fuses and CB7D, CB26D Circuit Breakers
F6D, F15D, F16D, F25D, F27D, F29D, F30D Fuses and CB7D, CB26D Circuit Breakers
B+ Bus (1 of 2)
F2U, F25U, F26U, F31U, F32U, F33U, and F34U Fuses
F2D, F3D, F4D, F5D, F17D, F18D, F23D, and F24D Fuses
Electrical Center Identification Views
F2D, F3D, F4D, F5D, F17D, F18D, F23D, and F24D Fuses
F2D, F3D, F4D, F5D, F17D, F18D, F23D, and F24D Fuses
B+ Bus (1 of 2)
