Object Detection Wiring Schematics: UD7

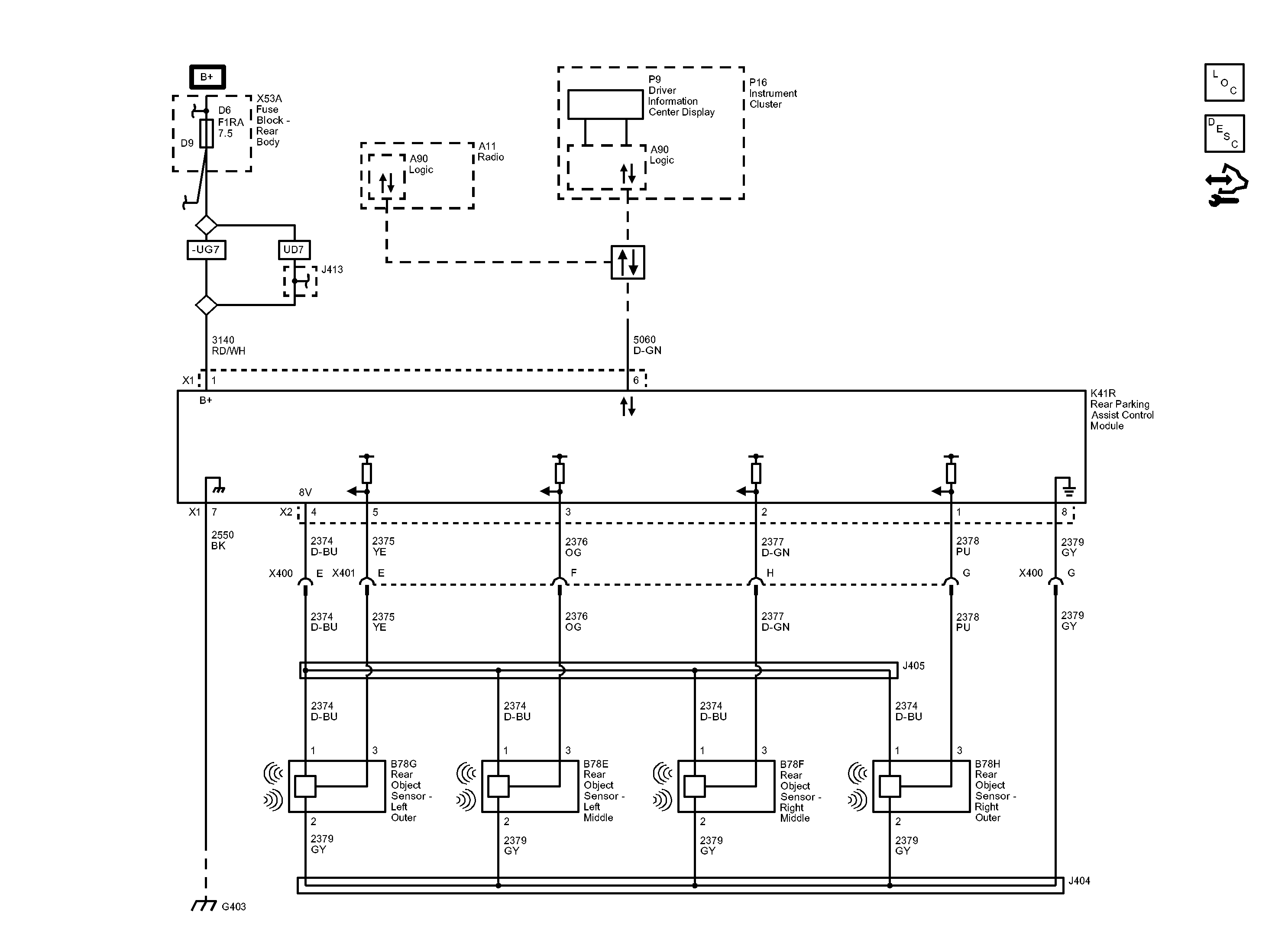

Fig 1: UD7 Wiring Schematic

GM2786716

Courtesy of GENERAL MOTORS COMPANY
