Removal Procedure

  1. Lower the tilt and telescope lever. Keep the lever in the released position.

    Telescope the steering column to the maximum rearward position.

    Tilt the steering column to the lowest position.

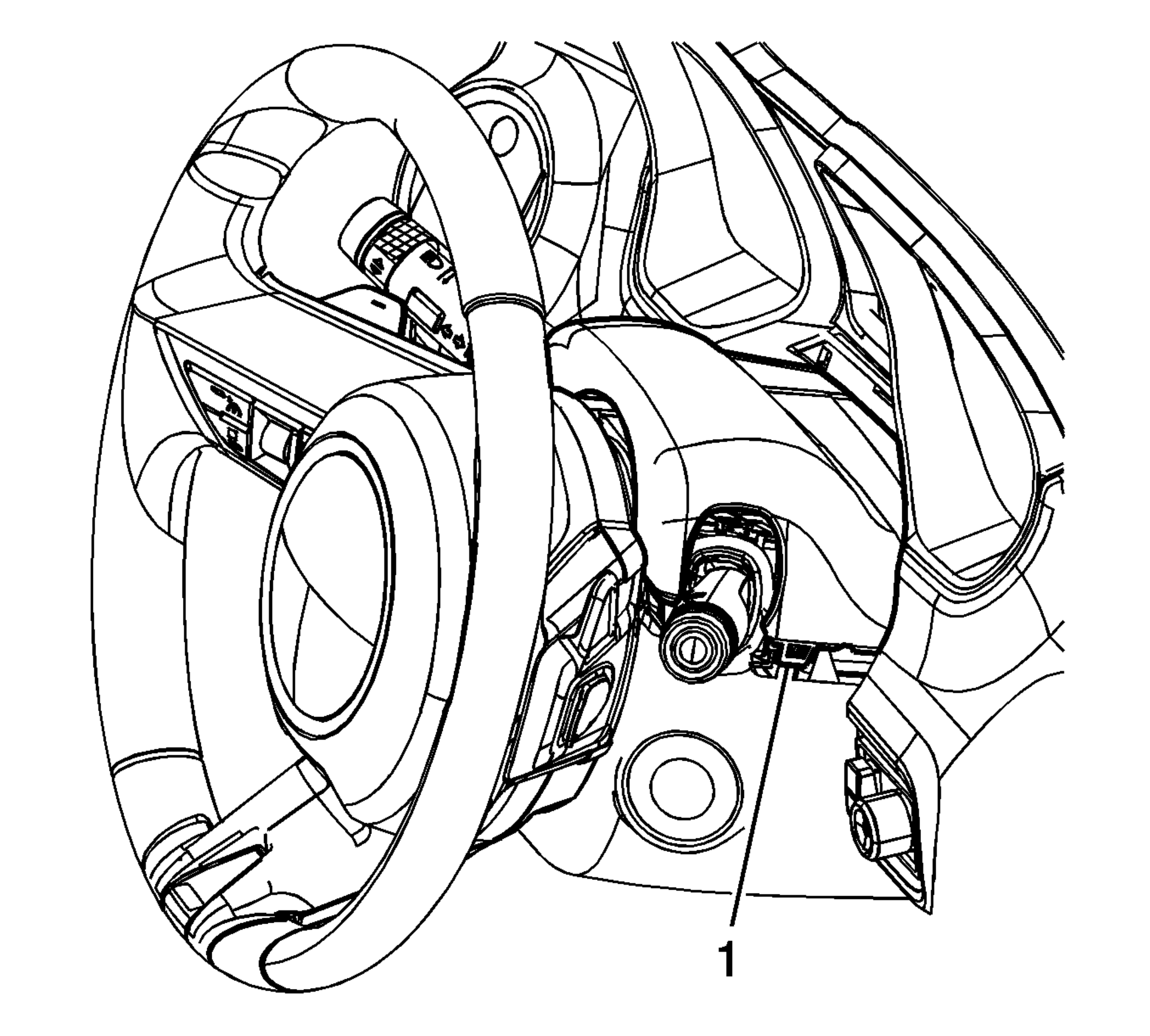

    2. Fig 1: Right Side Upper Steering Column Shroud Tab
    GM2196914Courtesy of GENERAL MOTORS COMPANY
  2. Release the 1 tab (1) that secures the right side of the upper steering column shroud to the steering column.

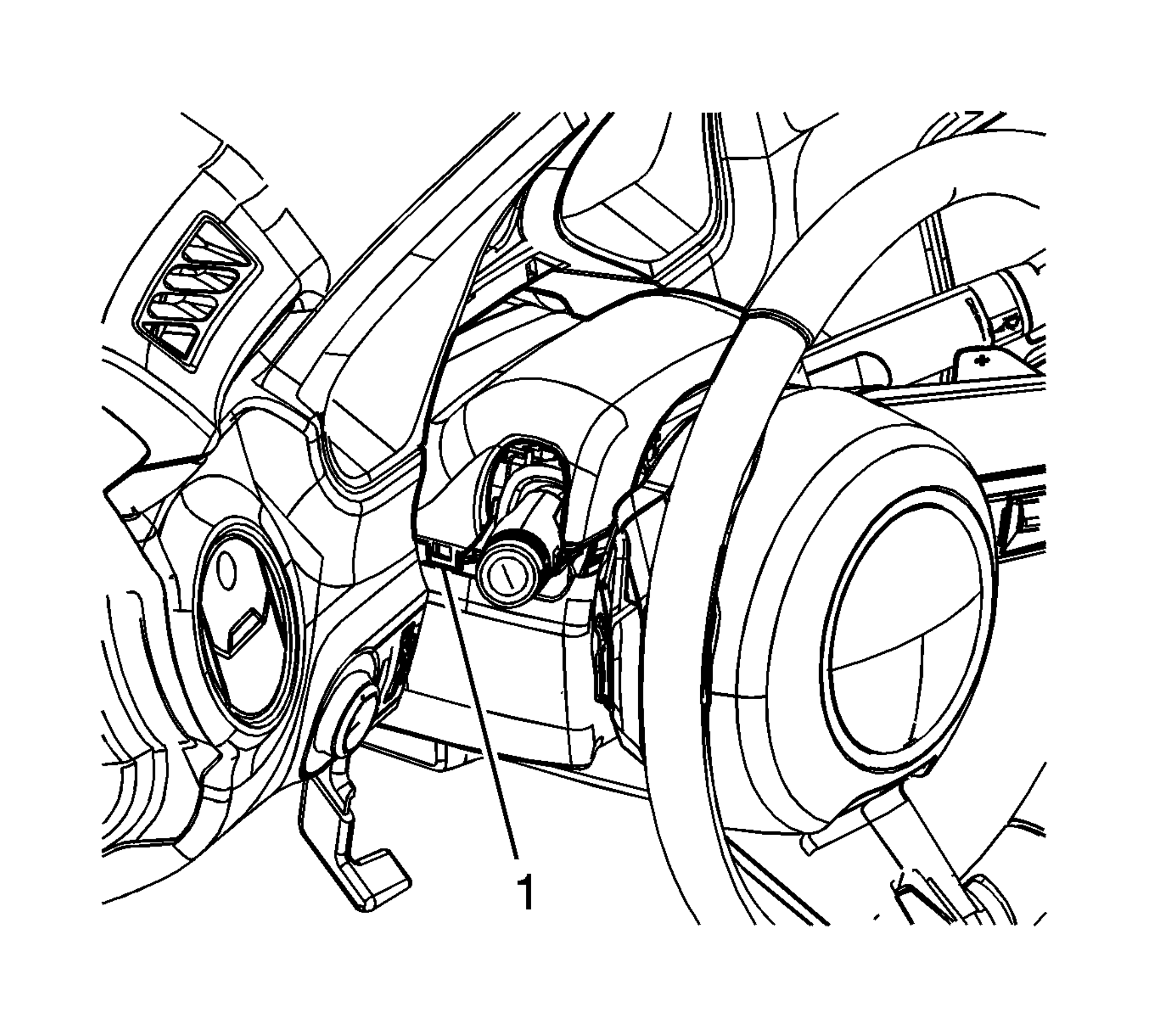

    3. Fig 2: Left Side Upper Steering Column Shroud Tab
    GM2196966Courtesy of GENERAL MOTORS COMPANY
  3. Release the 1 tab (1) that secures the left side of the upper steering column shroud to the steering column.

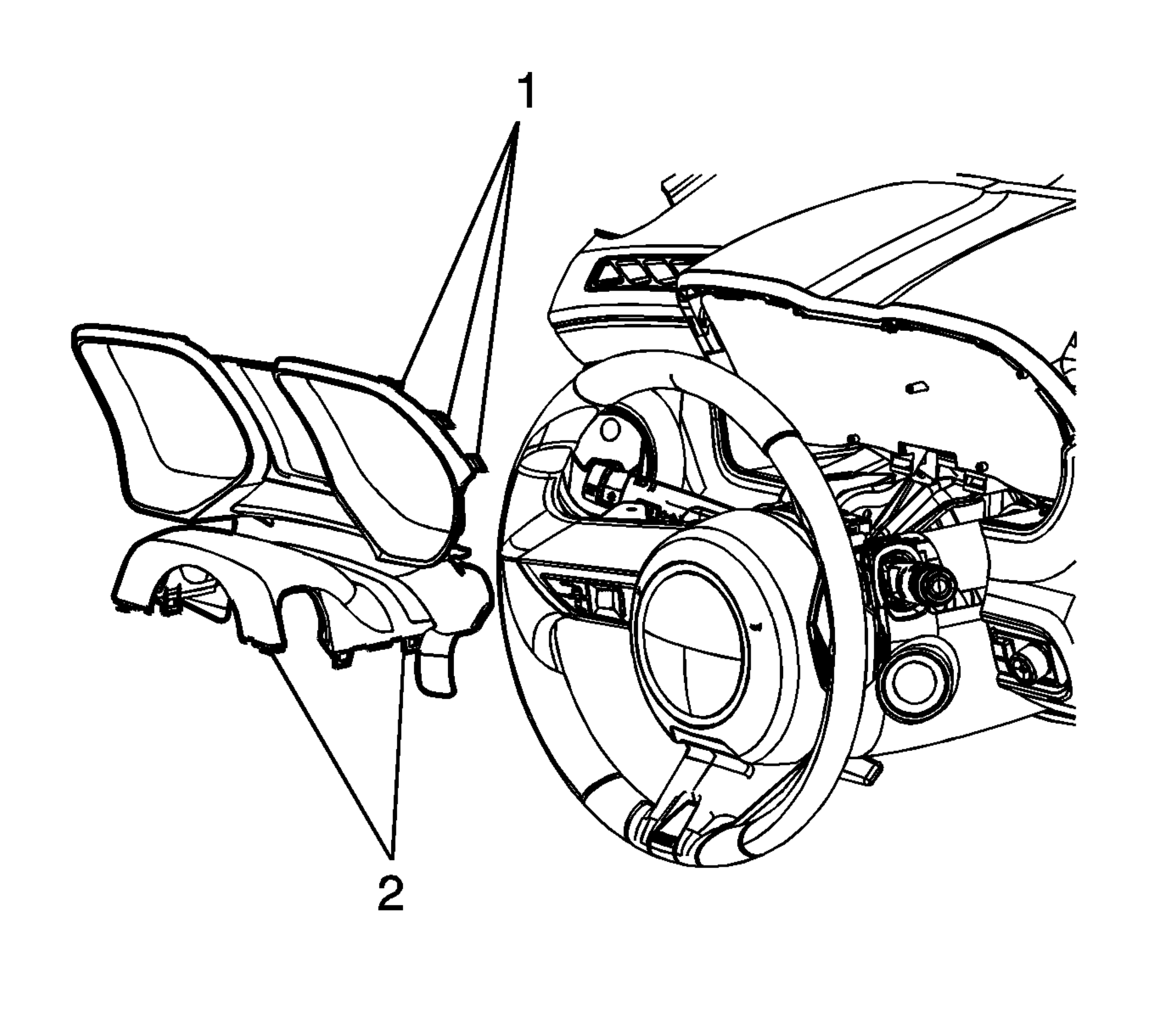

    4. Fig 3: Right Side Upper Steering Column Shroud Tabs
    GM2197088Courtesy of GENERAL MOTORS COMPANY
  4. Release the 2 tabs (2) that secure the right side of the upper steering column shroud to the steering column.
  5. Release the 2 tabs that secure the left side of the upper steering column shroud to the steering column.
  6. Use a flat bladed plastic trim tool in order to release the retaining tabs (1) securing the instrument panel cluster trim plate to the instrument panel.
  7. Remove the upper steering column shroud and the instrument panel cluster trim plate as an assembly from the instrument panel.

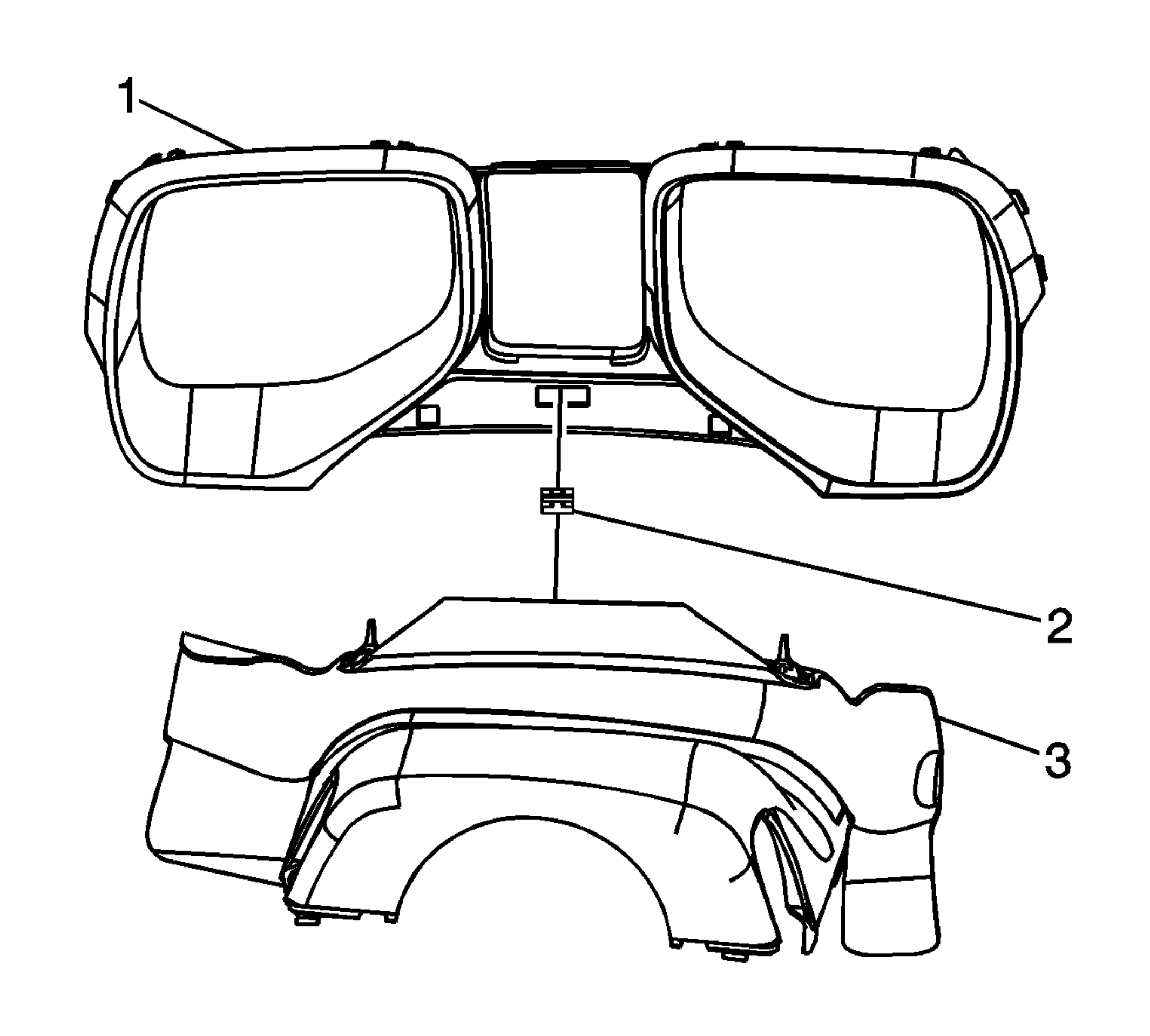

    8. Fig 4: Upper Steering Column Shroud & Instrument Panel Cluster Trim Plate
    GM2197121Courtesy of GENERAL MOTORS COMPANY
  8. Use a flat bladed plastic trim tool in order to release the clip (2) and the 2 retainers.

    Remove the upper steering column shroud (3) from the instrument panel cluster trim plate (1).

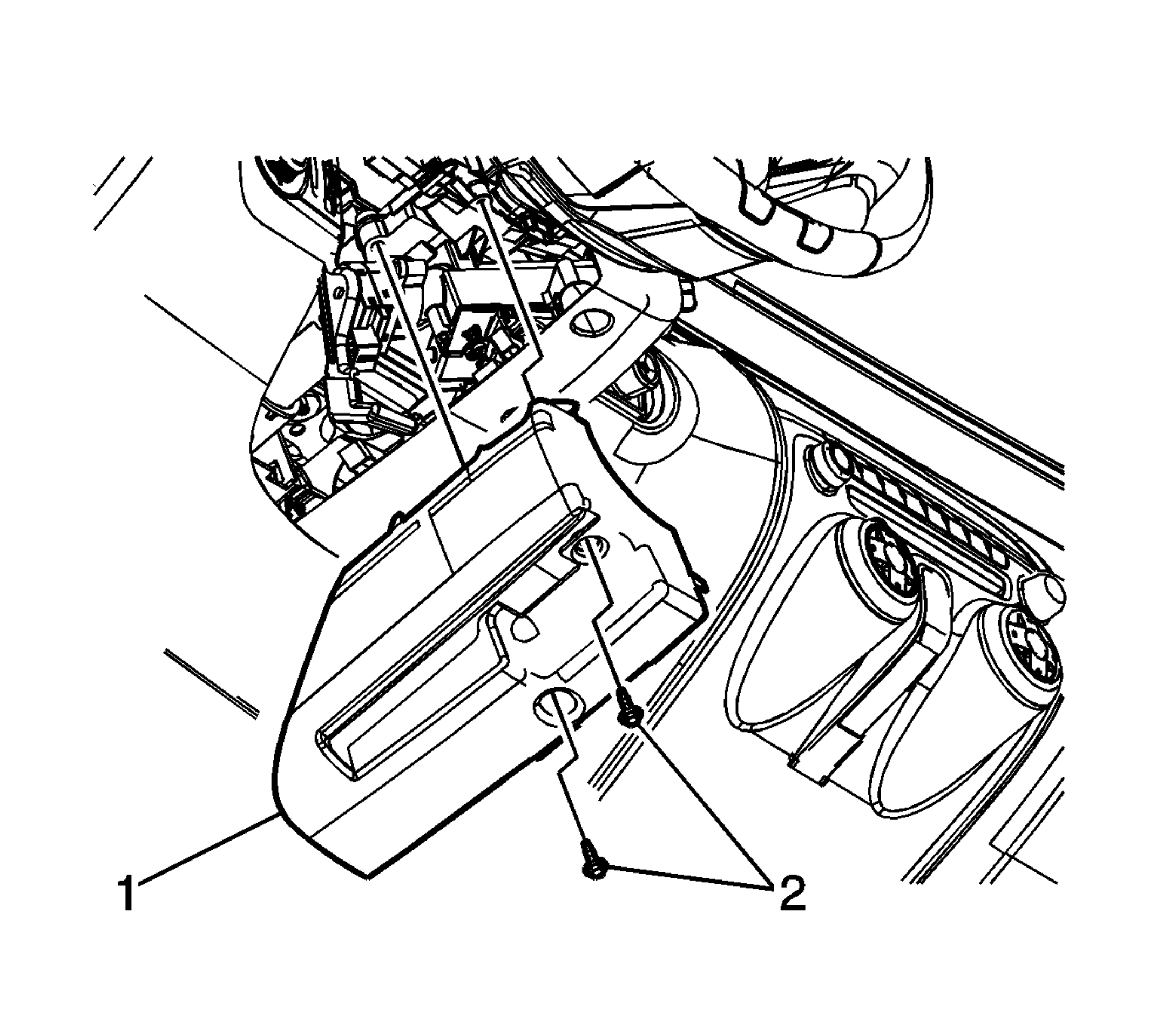

    9. Fig 5: Lower Left Steering Column Shroud & Bolts
    GM2197176Courtesy of GENERAL MOTORS COMPANY
  9. Remove the 2 bolts (2) from the lower left steering column shroud (1).
  10. Disengage the 4 tabs and remove the lower left steering column shroud from the steering column.

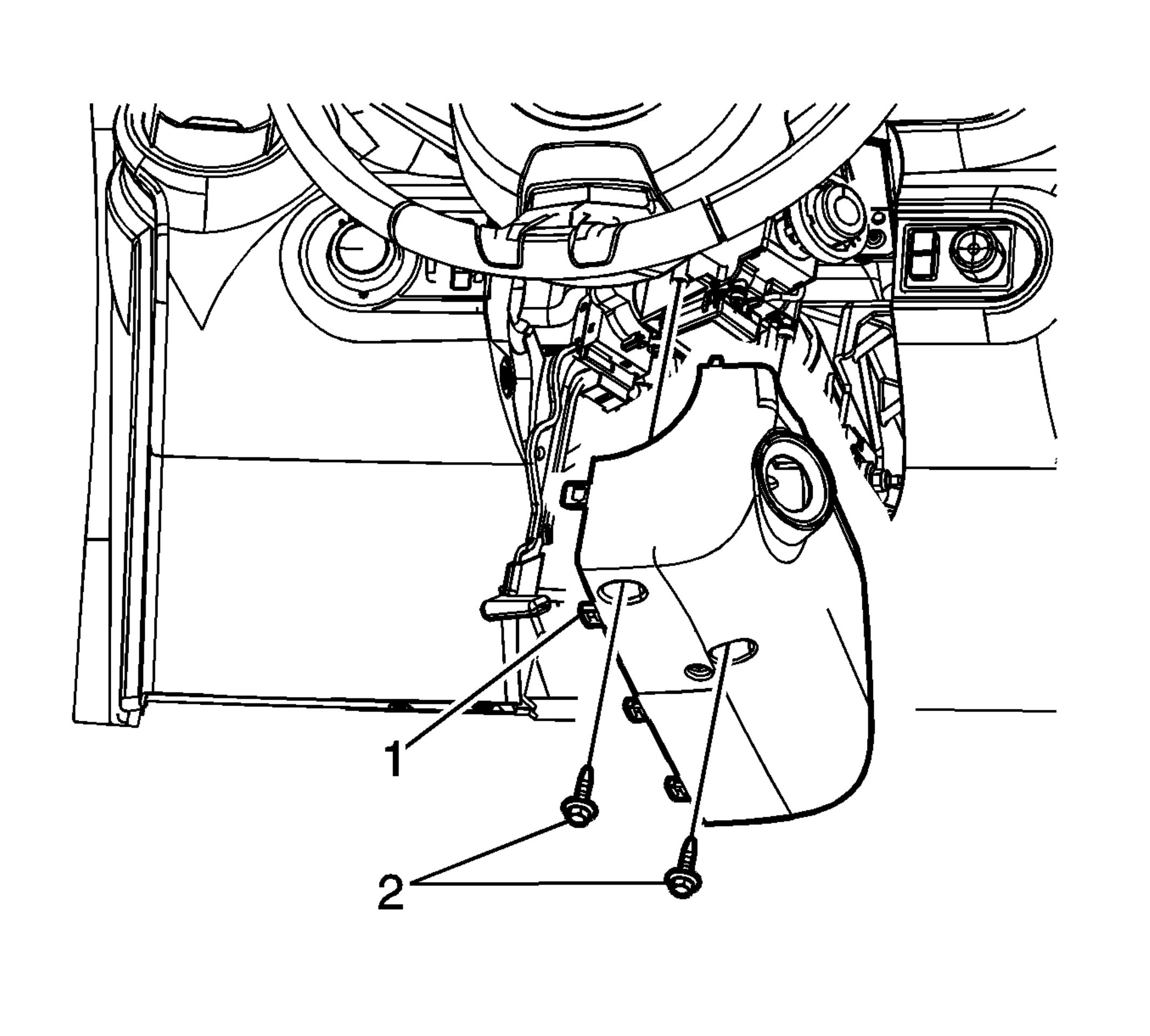

    11. Fig 6: Lower Right Steering Column Shroud & Bolts
    GM2197252Courtesy of GENERAL MOTORS COMPANY
  11. Remove the 2 bolts (2) from the lower right steering column shroud (1).
  12. Disengage the instrument panel harness retainer from the lower right steering column shroud.
  13. Remove the lower right steering column shroud from the vehicle.
