Radio Speaker Amplifier Replacement
WARNING: This page is about a different car, the 2011 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

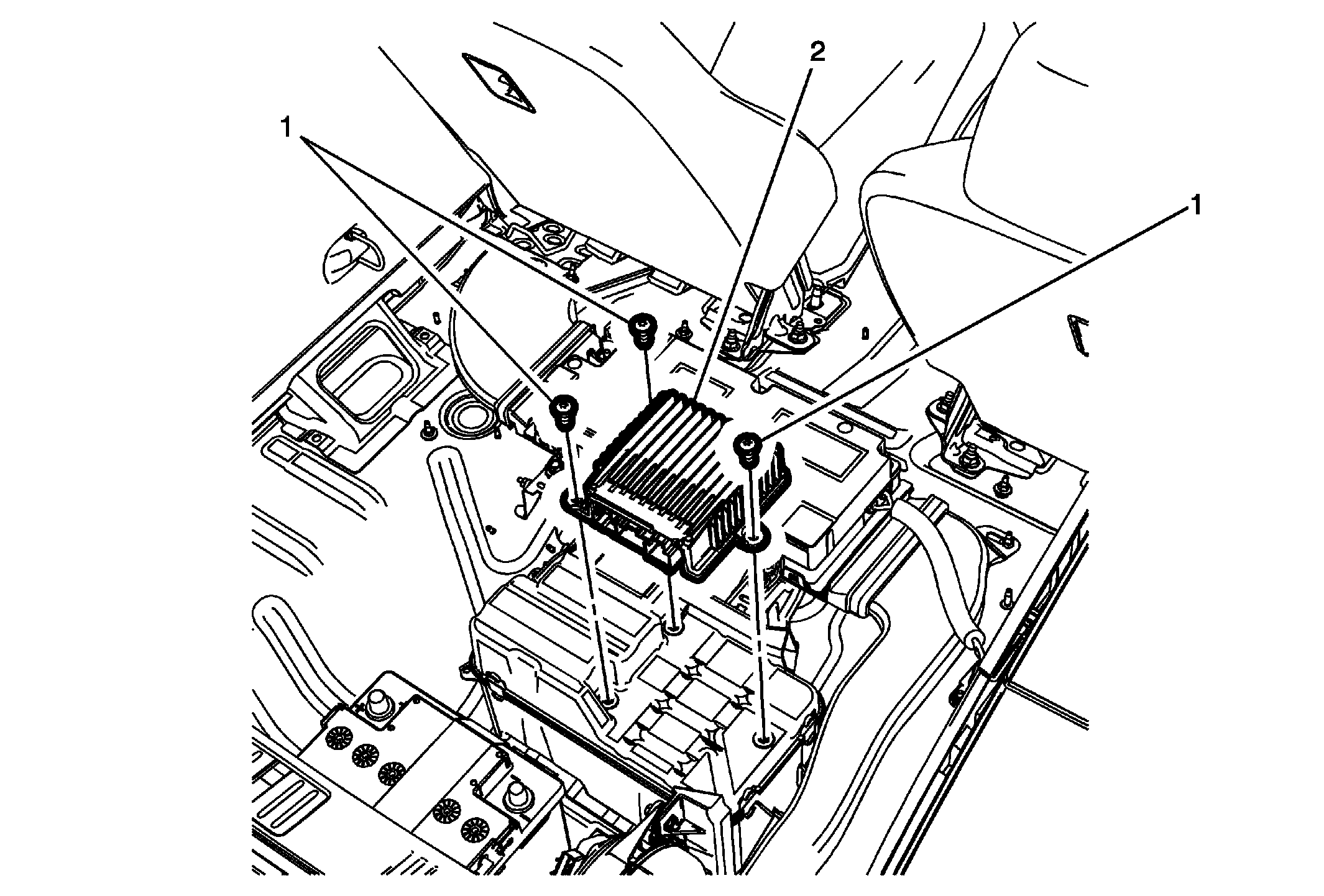

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the rear compartment floor stowage trim compartment. Refer to Rear Compartment Floor Stowage Trim Compartment Replacement . |
|
| 1 | Radio Speaker Amplifier Bolt (Qty: 3)
CAUTION:
Refer to Fastener Caution
.
|
| 2 | Radio Speaker Amplifier Procedure: Disconnect the electrical connectors. |
