Inflatable Restraint Instrument Panel Lower Module Replacement - Driver Side

WARNING: This page is about a different car, the 2011 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

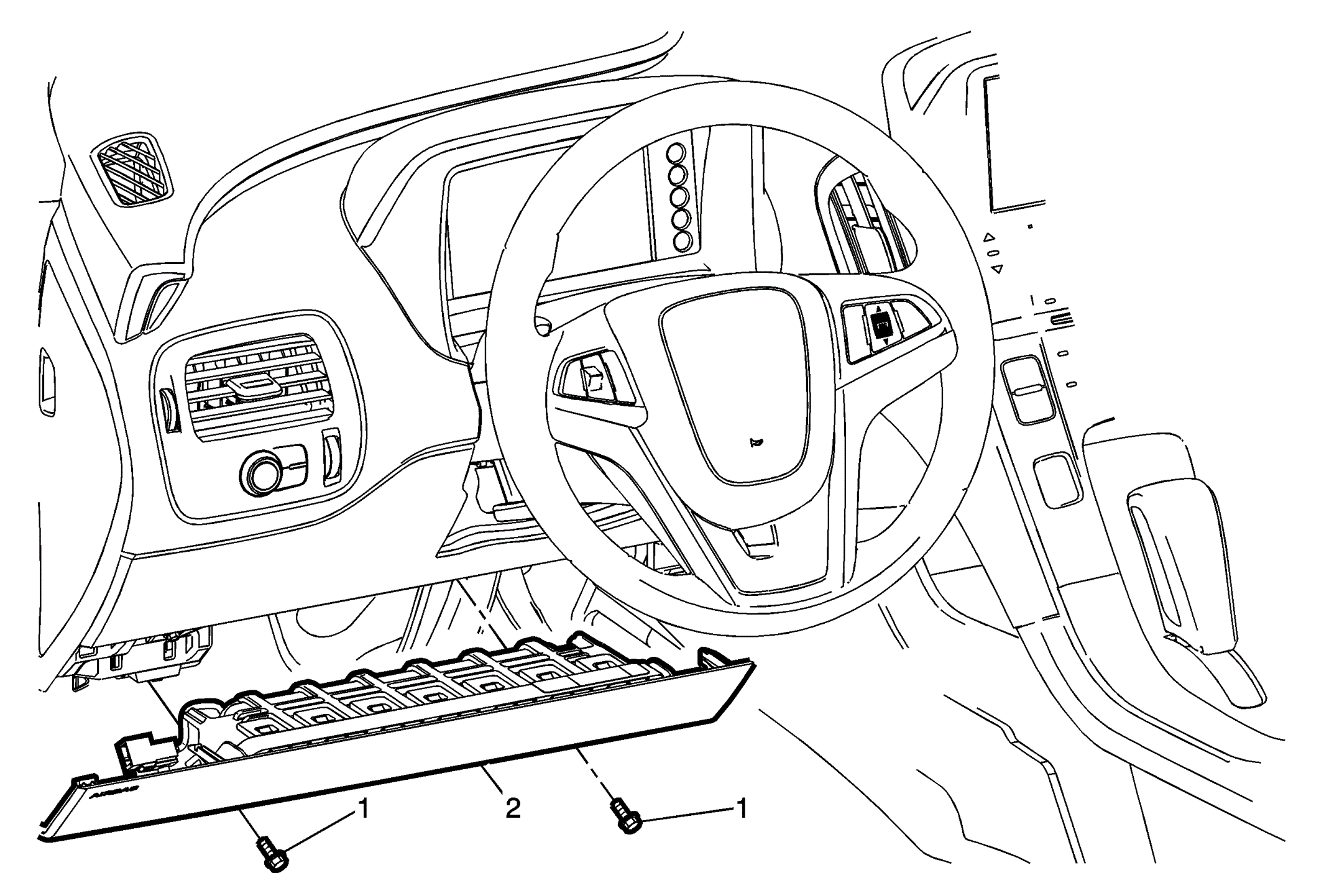

Fig 1: Inflatable Restraint Instrument Panel Lower Module - Driver Side
GM2412396Courtesy of GENERAL MOTORS CORP.
Callout Component Name
WARNING: Refer to SIR Warning .
Preliminary Procedure: Disable the SIR system. Refer to SIR Disabling and Enabling .
1 Inflatable Restraint Instrument Panel Lower Module Fastener (Qty: 2)
CAUTION: Refer to Fastener Caution .

Tighten:  9 N.m (80 lb in)
2 Inflatable Restraint Instrument Panel Lower Driver Side Module Assembly
Procedure:
Disconnect electrical connector.
