Engine Coolant Temperature Sensor Replacement
WARNING: This page is about a different car, the 2011 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

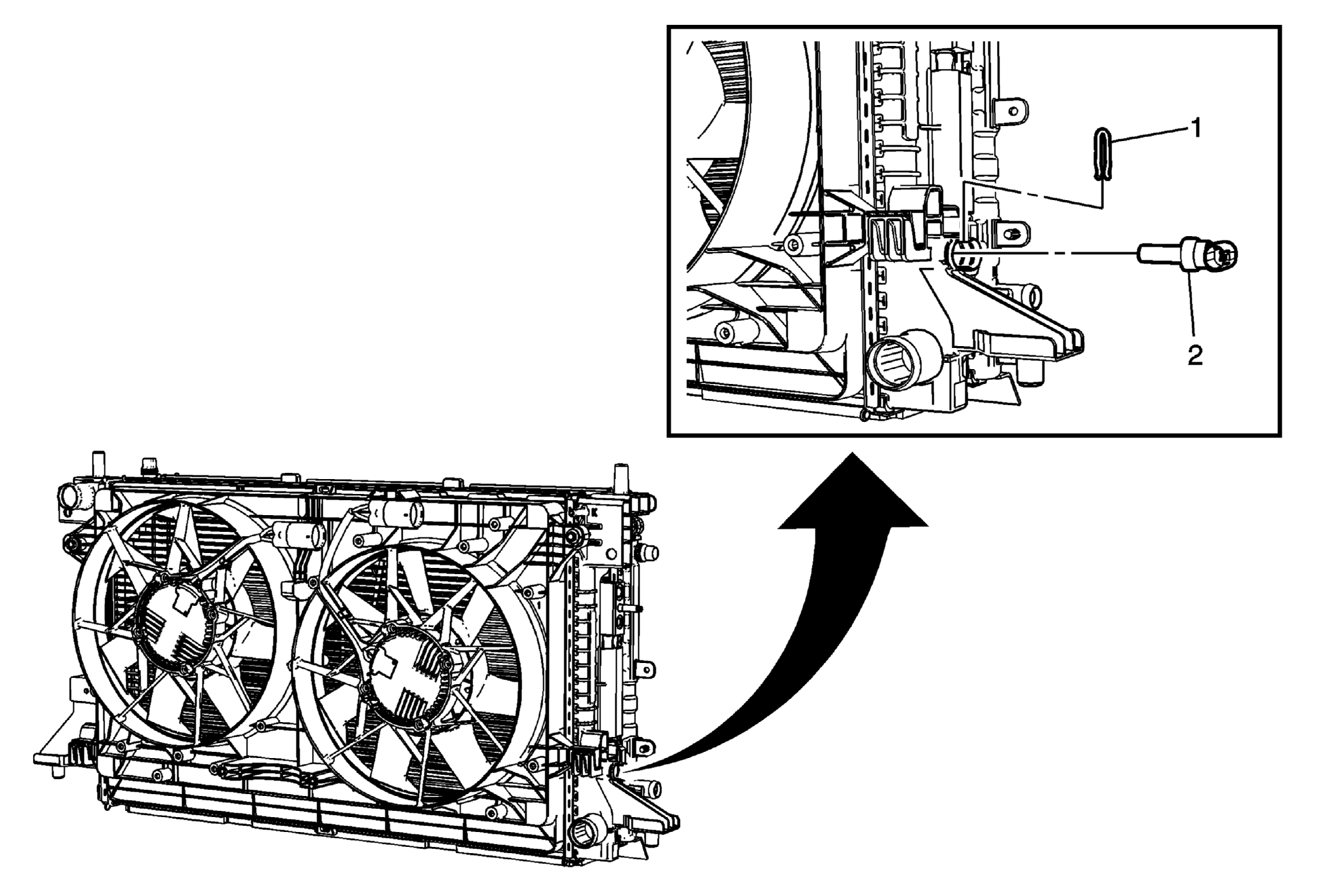

| Callout |
Component Name |
|
Preliminary Procedure
- Drain the coolant. Refer to Cooling System Draining and Filling
- Remove the front wheelhouse front liner on the passenger side. Refer to Front Wheelhouse Front Liner Replacement
- Disconnect the electrical connector from the coolant temperature sensor.
|
| 1 |
Engine Coolant Temperature Sensor Retaining Clip. |
| 2 |
Engine Coolant Temperature Sensor |
