Fuel Tank Pressure Sensor Replacement

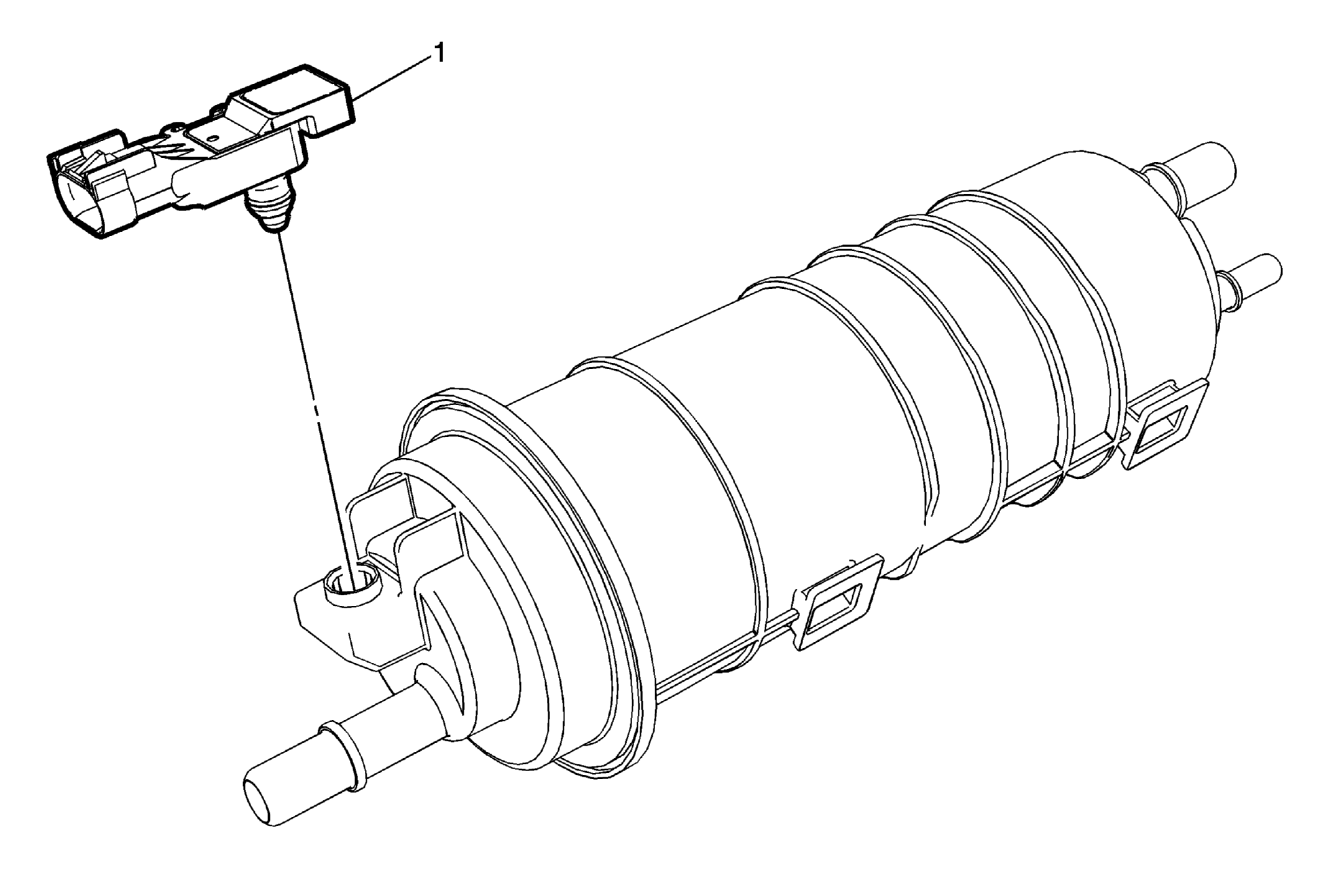

Fig 1: Fuel Tank Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the carbon canister. Refer to Evaporative Emission Canister Replacement .
1	Fuel Tank Fuel Pressure Sensor Procedure Disconnect the electrical connector.
