Camshaft Position Sensor Replacement (Intake)

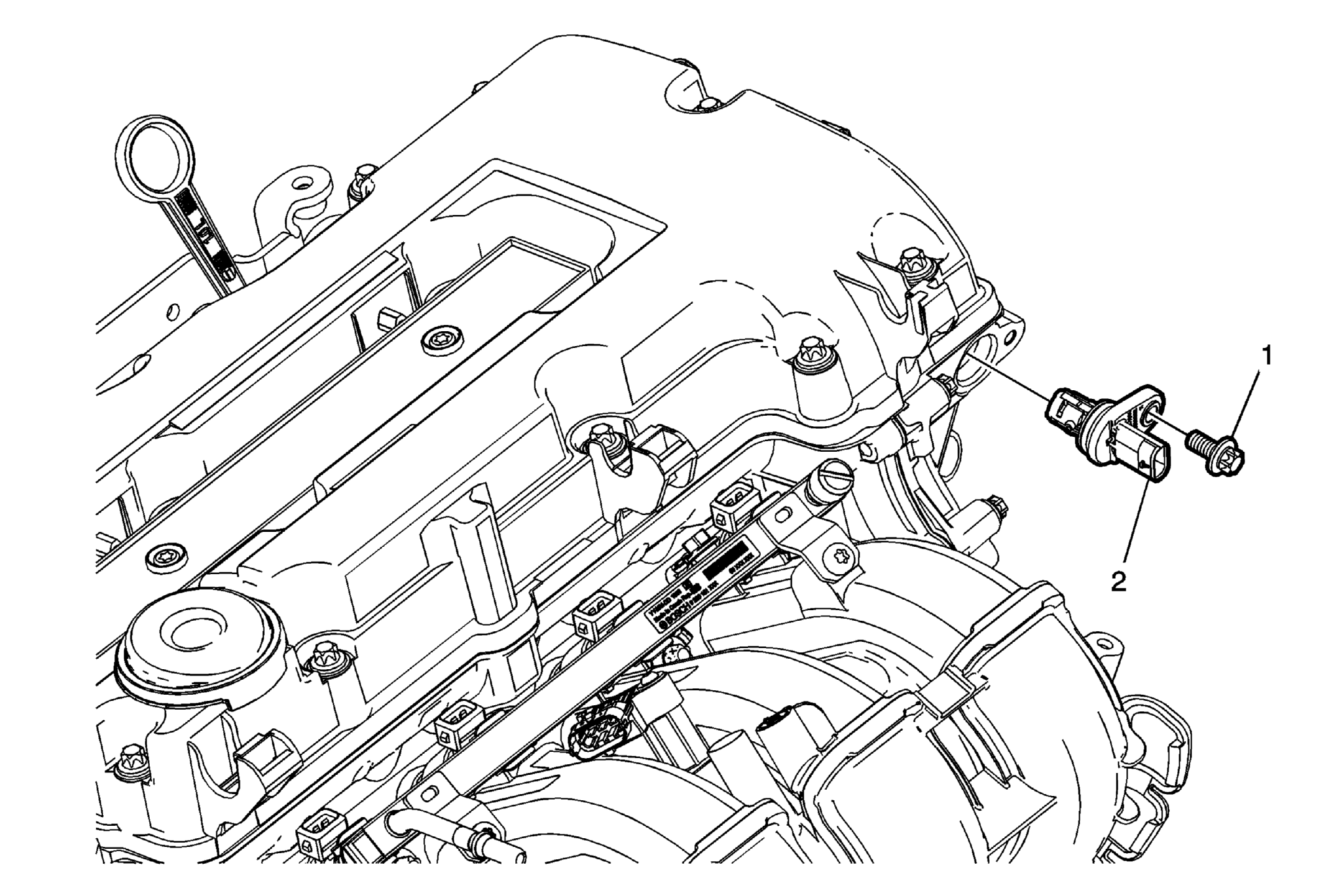

Fig 1: Camshaft Position Sensor (Intake)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the air cleaner resonator duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .
1	Camshaft Position Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb in)
2	Camshaft Position Sensor Procedure Disconnect the electrical connector.
