Front Seat Heater Control Module Replacement
Courtesy of GENERAL MOTORS COMPANY Front Seat Heater Control Module Replacement

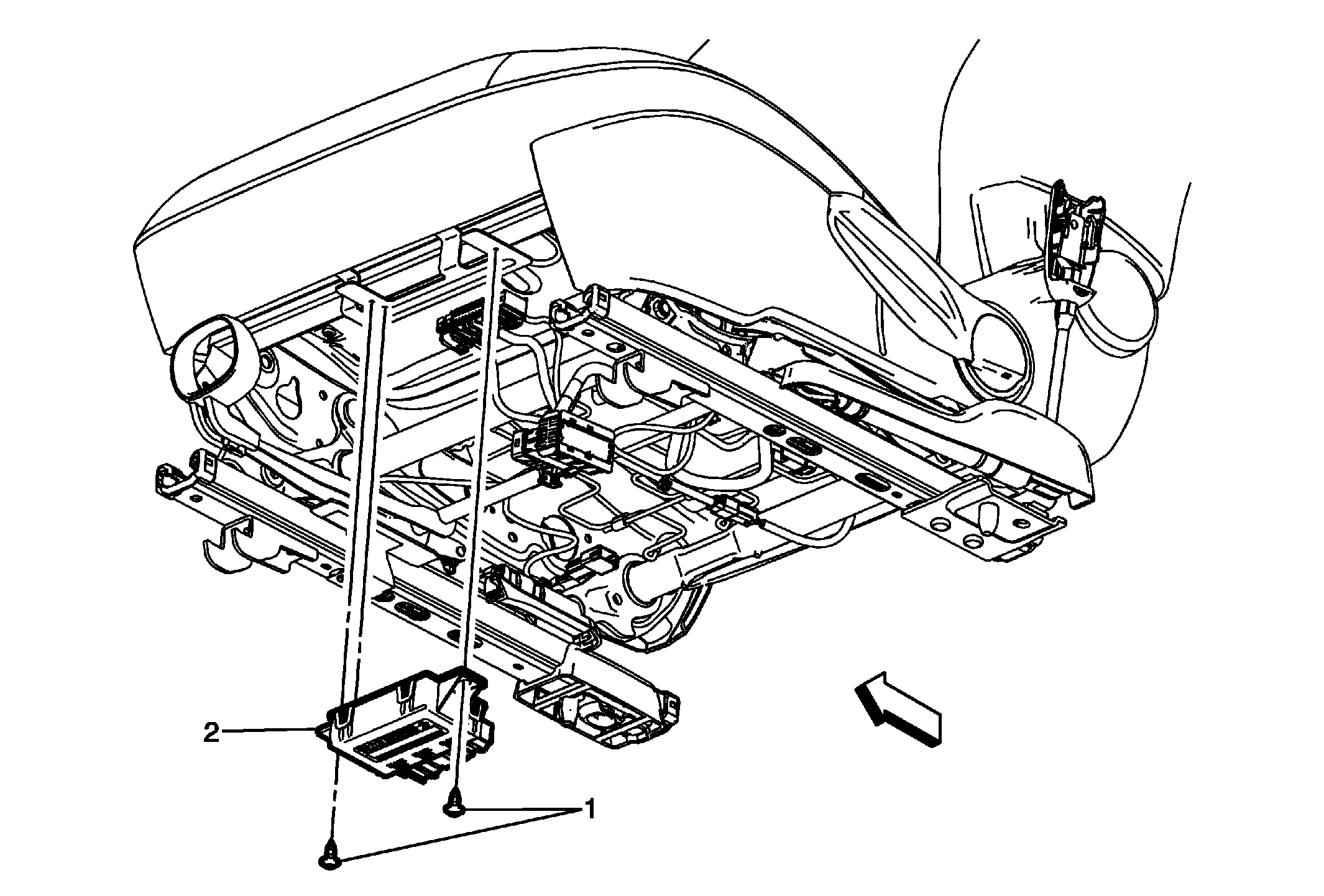

| Callout |
Component Name |
| 1 |
Front Seat Heater Control Module Fastener (Qty: 2)
|
| 2 |
Front Seat Heater Control Module Procedure
- Disconnect the electrical connector.
- Disconnect the module from the bracket, then pull downward away from the bottom of the seat.
- Refer to Control Module References
for programming and setup information.
|
