Ignition Lock Key Transmitter Antenna Replacement - Rear Bumper Fascia

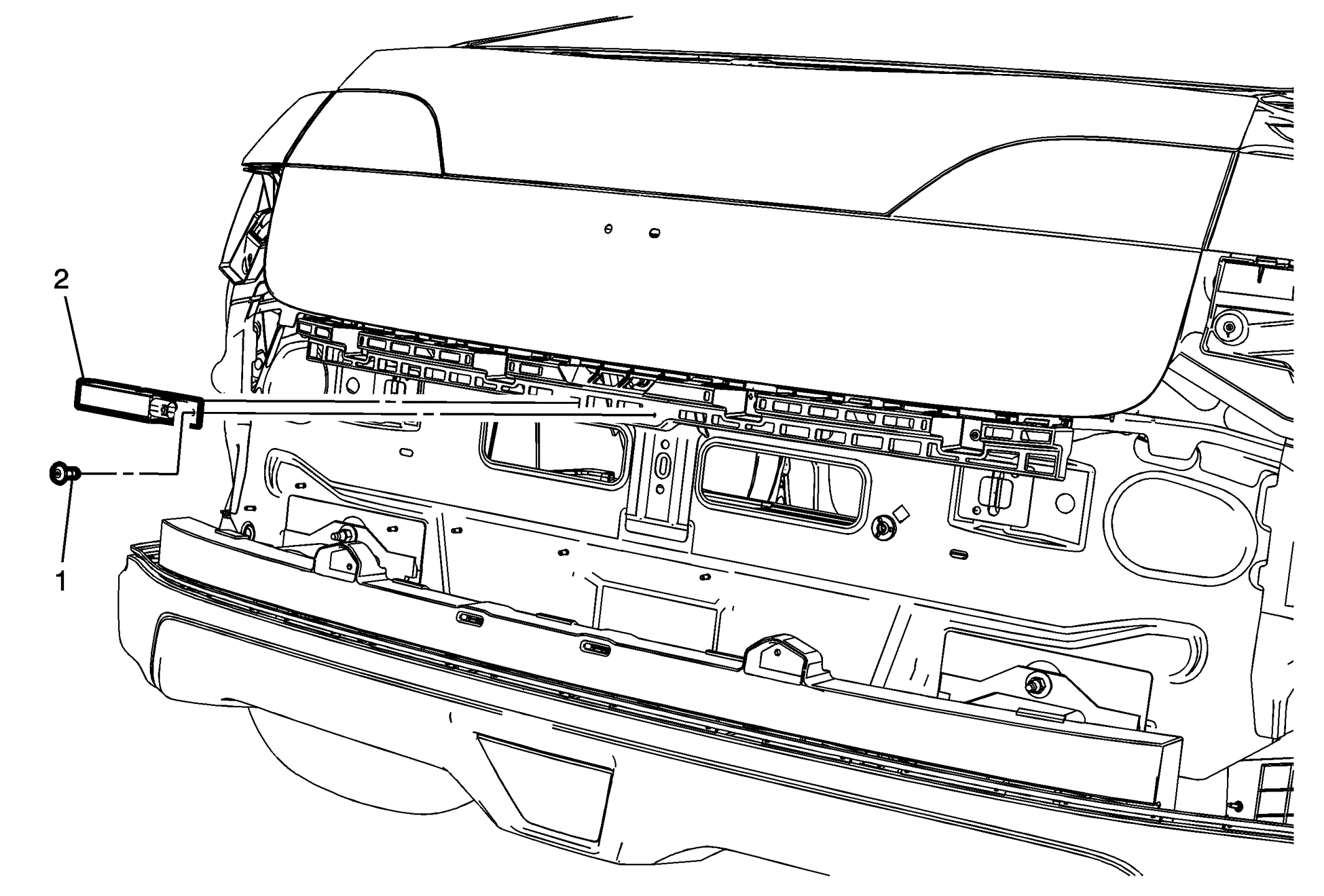

Fig 1: Ignition Lock Key Transmitter Antenna - Rear Bumper Fascia

Courtesy of GENERAL MOTORS COMPANY

Ignition Lock Key Transmitter Antenna Replacement - Rear Bumper Fascia

Callout	Component Name
Preliminary Procedures  Remove the rear bumper upper fascia. Refer to Rear Bumper Upper Fascia Replacement .
1	Ignition Lock Key Transmitter Antenna Fastener CAUTION: Refer to Fastener Caution .
2	Ignition Lock Key Transmitter Antenna - Rear Bumper Fascia Procedure  Disconnect the electrical connector.
