Exhaust Manifold

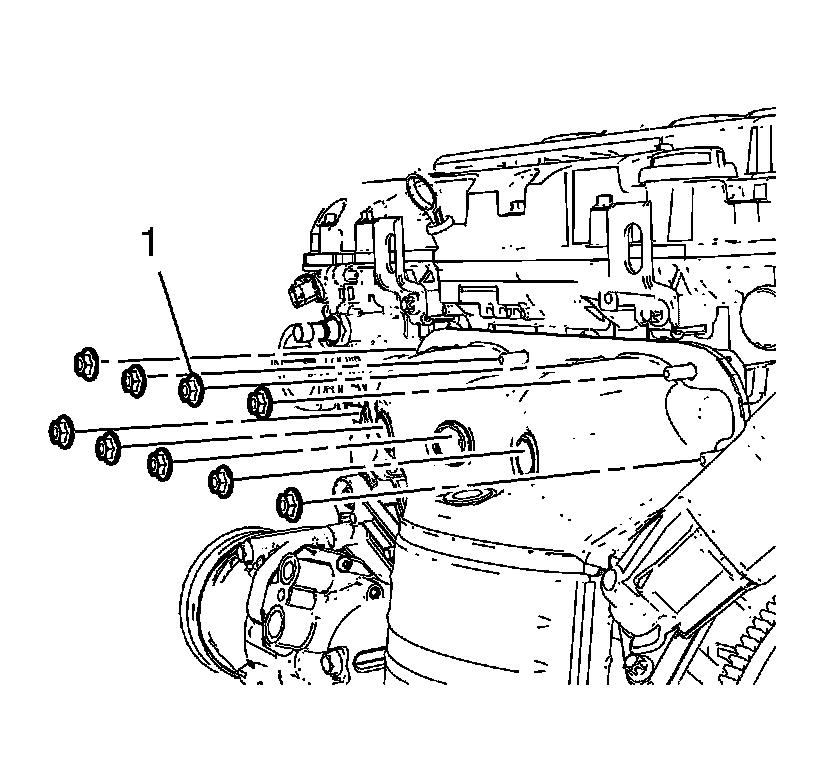

Tighten the 9 exhaust manifold nuts to 22 Nm (16 lb ft)
Tighten the 2 catalytic converter bracket bolts to 10 Nm (89 lb in).
