Fog Lights Schematics
WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

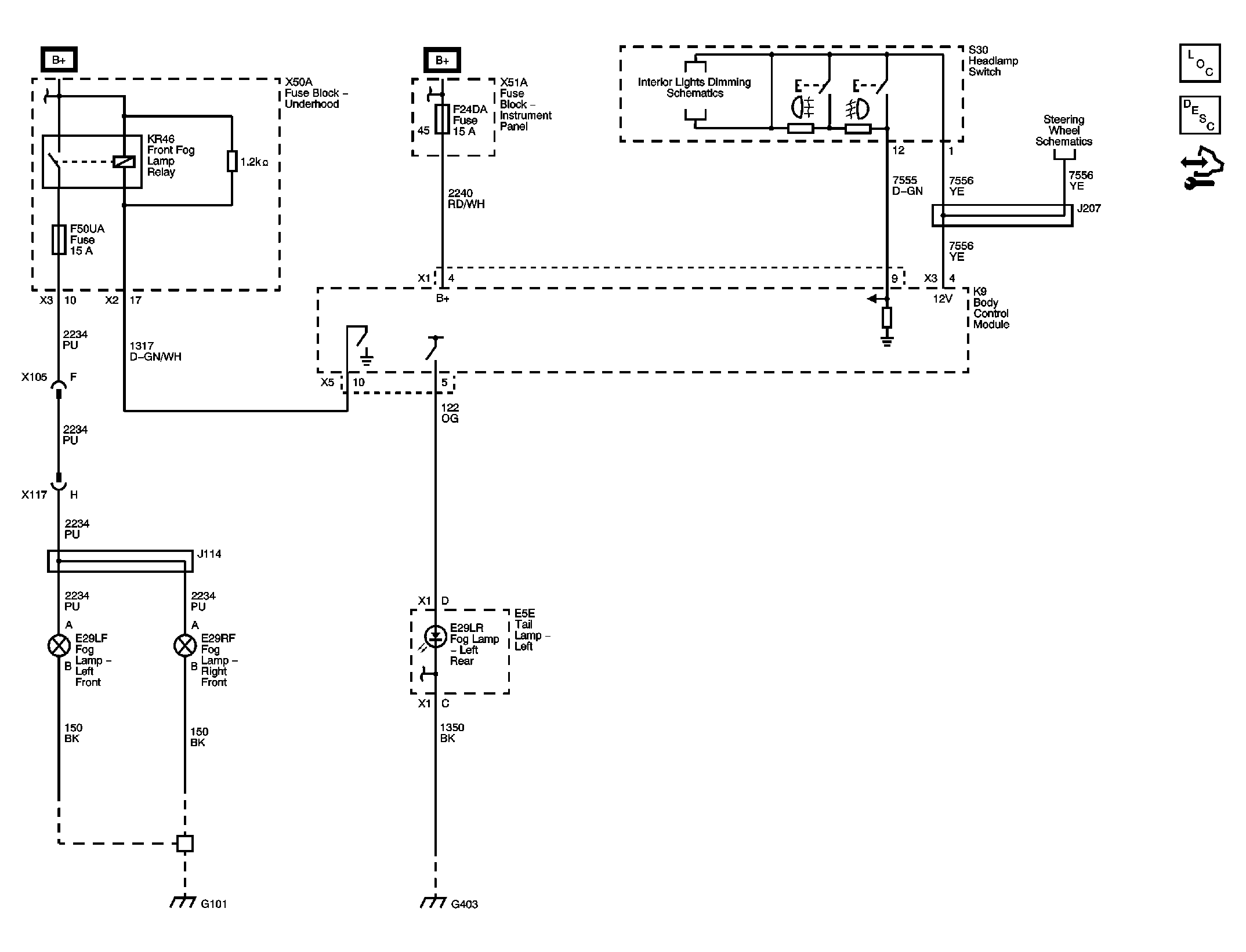

Fig 1: Fog Lamps Circuit Schematic - Front (T96) and Rear (T79)
